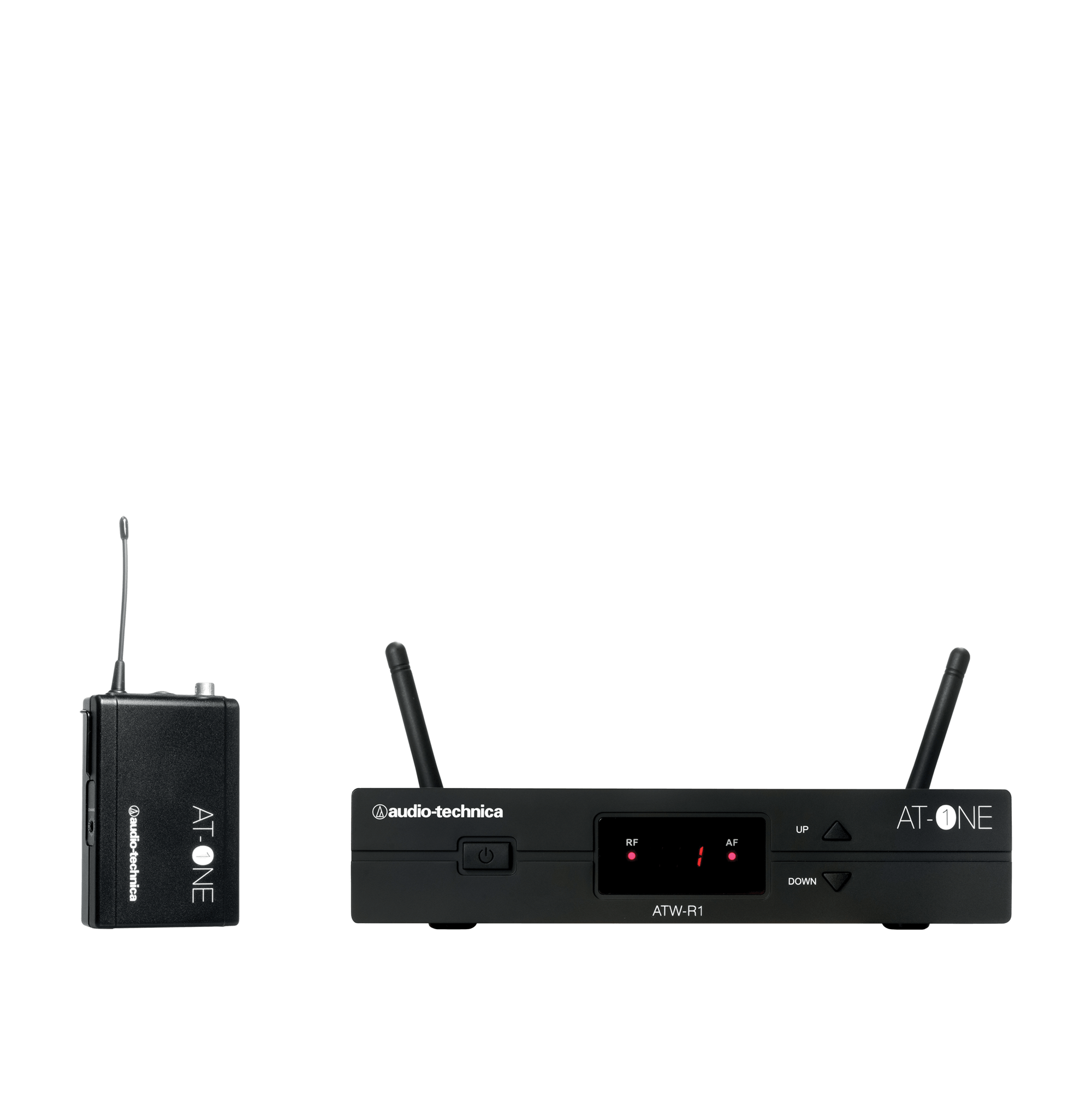

Audio-Technica ATW-11 AT-One Beltpack System

  • Sale
  • Regular price Rs. 17,999.00
Tax included.


Overall System
Operating Frequencies F-Band: 824 - 831 MHz, 863 - 865 MHz
Modulation Mode FM
Frequency Response 60 Hz - 16 kHz
Frequency Stability +/- 0.005%, Phase lock loop frequency control
Operating Range 60m, typical
Number Of Channels 2 x 4 frequencies
Body Pack
RF Power Output 10 mW
Battery Life 10 hours - depending on battery type and use pattern
Battery Type Two 1.5V AA alkaline (not included)
Dimensions 66 mm x 98 mm x 22 mm (W x H x D)
Input Connections Pin 1: GND
Pin 2: INST
Pin 3: Mic
Pin 4: DC Bias +10V
Spurious Emissions Following national regulations
Receiver
Receiving System Antenna switching diversity
Image Rejection 55dB minimum
Sensitivity 10dBµV (S/N 60dB @ 20 kHz deviation)
Maximum Output Level Mic / Line (0 / -20dB)
Antenna Input BNC type, 50 - BIAS voltage 12V DC 100mA each
Dimensions 200 mm x 42 mm x 122 mm (W x H x D)
Weight 418 g without accessories
Accessories Included AC Adapter, Antennas, Rack mount adapter, protective carrying case
Audio Output Balanced 4dBV
Audio Output Unbalanced -2dBV
Dynamic Range HH: 108 dB, BP 103 dB (@ max deviation)
Output Connectors (Instrument) Unbalanced: 6.3 mm mono jack
Output Connectors (Microphone) Balanced: XLRM-type
Total Harmonic Distortion <1% - 20 kHz deviation @ 1 kHz
