MSI MAG A850GL PCIE5 ATX 3.0 - 850 Watt 80 Plus Gold SMPS + MSI MAG Coreliquid M240 ARGB 240mm CPU Liquid Cooler (Black) - Combo
Guaranteed Safe Checkout

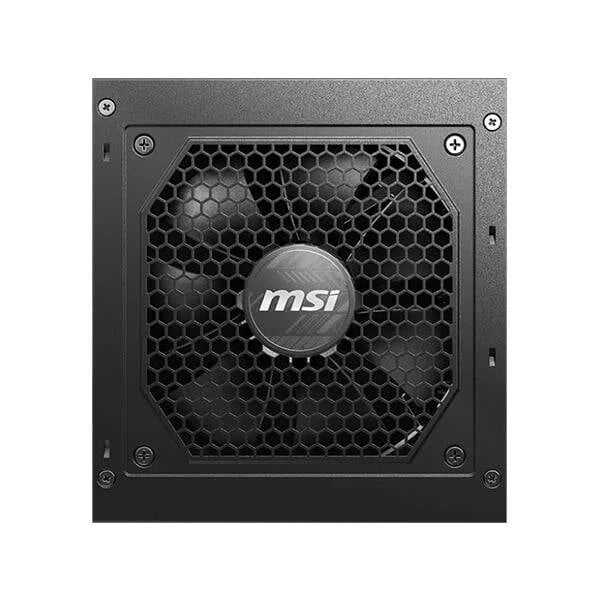

MSI MAG A850GL PCIE5 power supply is designed to be ready for GeForce RTX 40 series graphics cards thanks to its ATX 3.0 and PCIe 5.0 support.
Features:
MAG A850GL PCIE5
- ATX 3.0 compatible, native PCIe 5.0 connector
- Supports NVIDIA® GeForce RTXTM 40 Series graphics cards
- Full modular design,Flat cables
- 80 Plus Gold certified for high efficiency
- Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- 120mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module design
The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
ATX 3.0 compatible
It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A850GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.
Specification:
Model | MAG A850GL PCIE5 |
Efficiency Rating | 80 PLUS Gold (up to 90%) |
Modular | Yes (full modular) |
Fan Size | 120 mm |
Fan Bearing | Fluid Dynamic Bearing |
Dimensions (DxWxH) | 140 x 150 x 86 mm |
PFC Type | Active PFC |
Input Voltage Range | 100~240 VAC |
Power Watt | 850W |
Power Excursion | 1700W (*up to 200% of the PSU's rated power for 100μs) |
Input Frequency Range | 47-63Hz |
Protection | OCP / OVP / OPP / OTP / SCP / UVP |
ATX (24 pin) | 1 |
EPS (4+4 pin) | 2 |
PCI-E 5.0 (16 pin) | 1 (600W) |
PCI-E (6+2 pin) | 4 |
SATA (15 pin) | 8 |
MOLEX (4 pin) | 4 |
FDD (4 pin) | 1 |
- Wattage 850 Watt
- Series MAG SERIES
- Certification 80+ GOLD
- Modular FULLY MODULAR
- PCIe Connector (6+2) 4
- SATA Connector 8
-
Peripheral (4-Pin) 4
MSI MAG CORELIQUID M240 liquid cooler feature ARGB lighting and also constructed with three layers of netted plastic tubing and a reinforced mesh exterior. Compatible Sockets are both LGA1700 Intel and AM5 AMD.
Features:
- Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
- The unique curved copper plate is designed to fully cover the CPU while offering rapid heat dissipation.
- Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
- The radiator has a 12 pathway designed to help rapidly dissipate heat.
- Compatible Sockets & CPU: Intel Socket LGA 1150, 1151, 1155, 1156, LGA1200, 1700, LGA2011, LGA2011-3, LGA2066 / AMD Socket AM5, AM4
Elevated Copper Plate
The unique curved copper plate is designed to fully cover the CPU while offering rapid heat dissipation.
Pump Motor Resonance Elimination
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
HIGH THERMAL DISSIPATION
The radiator has a 12 pathway designed to help rapidly dissipate heat.
EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
EXTENSIVE COMPATIBILITY
Stylish yet built for flexibility, the MAG CORELIQUID M240 has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
Intel Socket
LGA 1150/1151/1155/1156/1200/1700
LGA 2011/2011-3/2066
AMD Socket
AM5/AM4
Specifications:
Product Name | MAG CORELIQUID M240 |
Radiator Dimensions (WxDxH) | 277 x 120 x 27mm / 10.9 x 4.7 x 1.06 inches |
Water Cooling Tube Material | Black Rubber + Mesh |
Number of Fans | 2 |
Fan Dimensions | 120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches |
Fan Power Consumption | 4.2W |
Fan Rated Current | 0.35A |
Fan Life Expectancy | 70,000 Hours |
Fan Bearing | Two Ball Bearing |
Fan Air Flow | 21.63 ~ 78.73 CFM |
Fan Lighting | ARGB |
PWM Mode | YES |
Radiator Material | Aluminum |
Block Dimensions | 67.26 x 59.95 x 55.9 mm |
Pump Rated Current | 0.38A |
Pump Life Expectancy | 100,000 Hours |
Pump Noise Level | 20 dBA |
Pump Connector | 3 Pin |
Pump Speed | 3100 RPM ± 10% |
Pump Power Consumption | 4.56W |
Intel Socket | LGA 1150/1151/1155/1156/1200/1700 LGA 2011/2011-3/2066 |
AMD Socket | AM5/AM4 |
Radiator Size | 240 mm |
Cold Plate Material | Copper + Plastic |
- Lighting ARGB
