Modernize all your meeting spaces with a wireless display receiver that supports native screen mirroring, extended desktop and interactive touch displays.
ScreenBeam 960 makes it easy to connect your mobile device to the room display with a single click or swipe. Extended desktop maintains device use for other actions while presenting, and support for interactive touch displays and wireless touch brings collaboration to the front-of-room display. Central Management System (CMS) software is included for remote management of receivers, providing enterprise-class security and manageability that IT departments need.
Catalog number: SBWD960A
Also Available:
SB960MOUNT (ScreenBeam 960 Mounting Kit)
With the ScreenBeam 960
- Native wireless screen mirroring means no apps or wires
- Trouble-free presenting from anywhere in the room
- Collaborate wirelessly with interactive touch screen support
- Share any form of content, videos, images, slides
- Get meetings started quickly, switch presenters seamlessly
- Extended screen maintains use of device for other actions
- Take advantage of multiport connectivity and high-quality audio
- Designed for commercial applications and dense wireless environments
- Centralized IT management saves resources and budget
- Minimal training required, simple to use
- Connects to displays, projectors, control systems, and Skype Room systems via HDMI and USB
Technical Specifications
Hardware
Video
• H.264 compression
Audio
• LCPM 2.0
Resolution1
• Up to 1080p30
Ethernet
• 10/100 RJ-45 LAN
Wireless
• Miracast P2P: 802.11ac dual-band
• Infrastructure: 802.11a/b/g/n dual-band
Authentication
• WPA-PSK (TKIP)
Protocol
• WPA2-PSK (AES)
• PEAP-MSCHAP V2 (TLS 1.0)
• EAP-TLS (TLS 1.0)

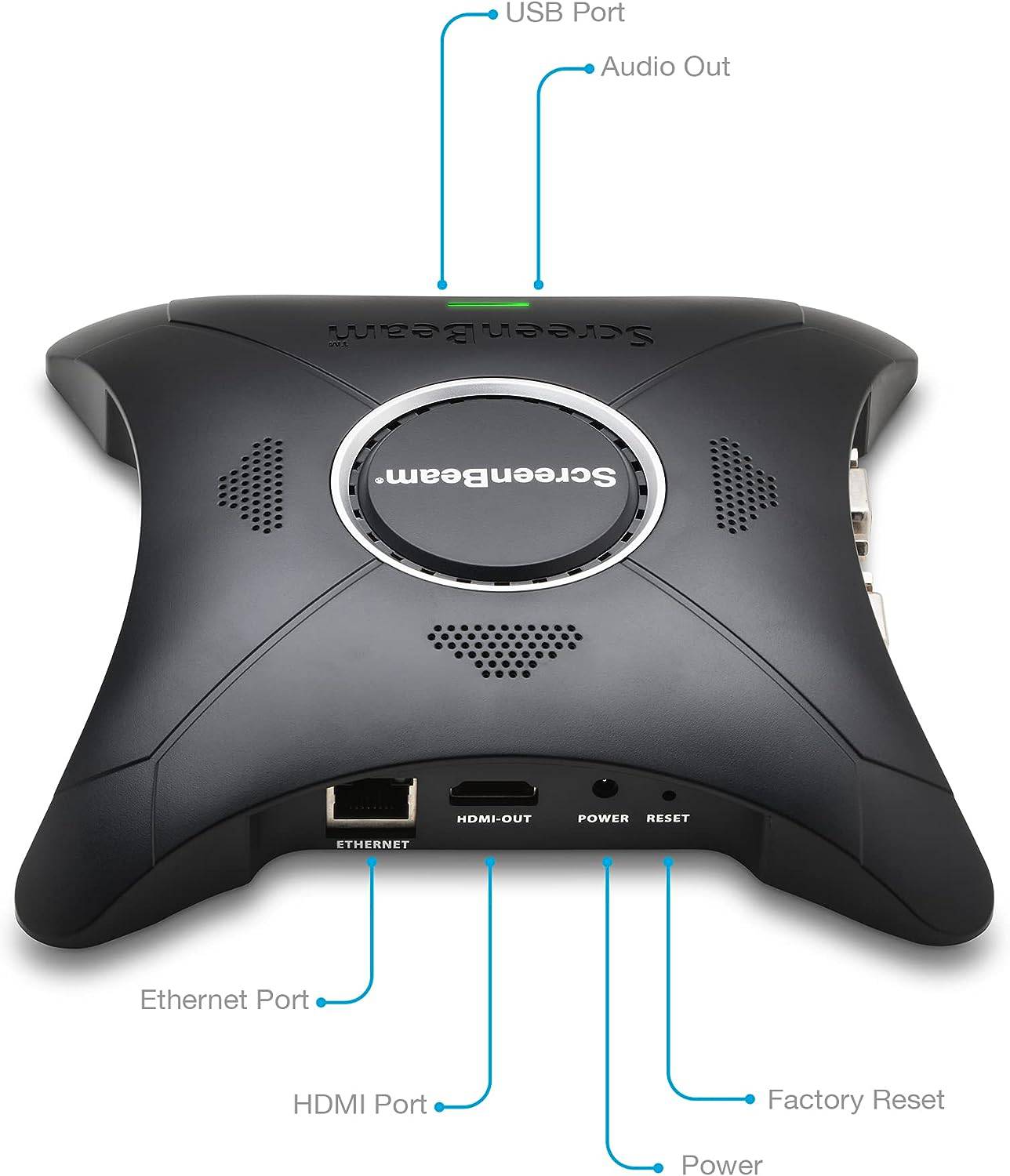

Interface
• 1 x HDMI Output
• 1 x VGA Output
• 1 x VGA Input (Pass-through)
• 1 x Analog 3.5mm audio output
• 1 x USB 2.0 Host Type-A
• 1 x DC Power Jack
Content Protection2
• HDCP 2.x
Power
• Input: 5VDC, 2A
• Consumption: Less than 5W
Dimensions
• 6.61 x 6.61 x 1.36 inch (168.0 x 168.0 x 34.5 mm)
Operating temperature
• 0 ºC to 40 ºC (32 ºF to 104 ºF)
Storage temperature
• 0 ºC to 70 ºC (32 ºF to 158 ºF)
Operating humidity
• 10 to 85%, non-condensing
Storage humidity
• 5 to 90%, non-condensing
Compatible OS/Device
Miracast P2P wireless display requires certified device with either;
• Windows 10/11 build 1607 (and later)
• Android 4.2 (and later)
Wireless display over network requires device with either;
• Windows 10/11 build 1709 (and later)
• Windows 7 (and later)
• macOS 10 (and later)
• iOS 11 (and later)
