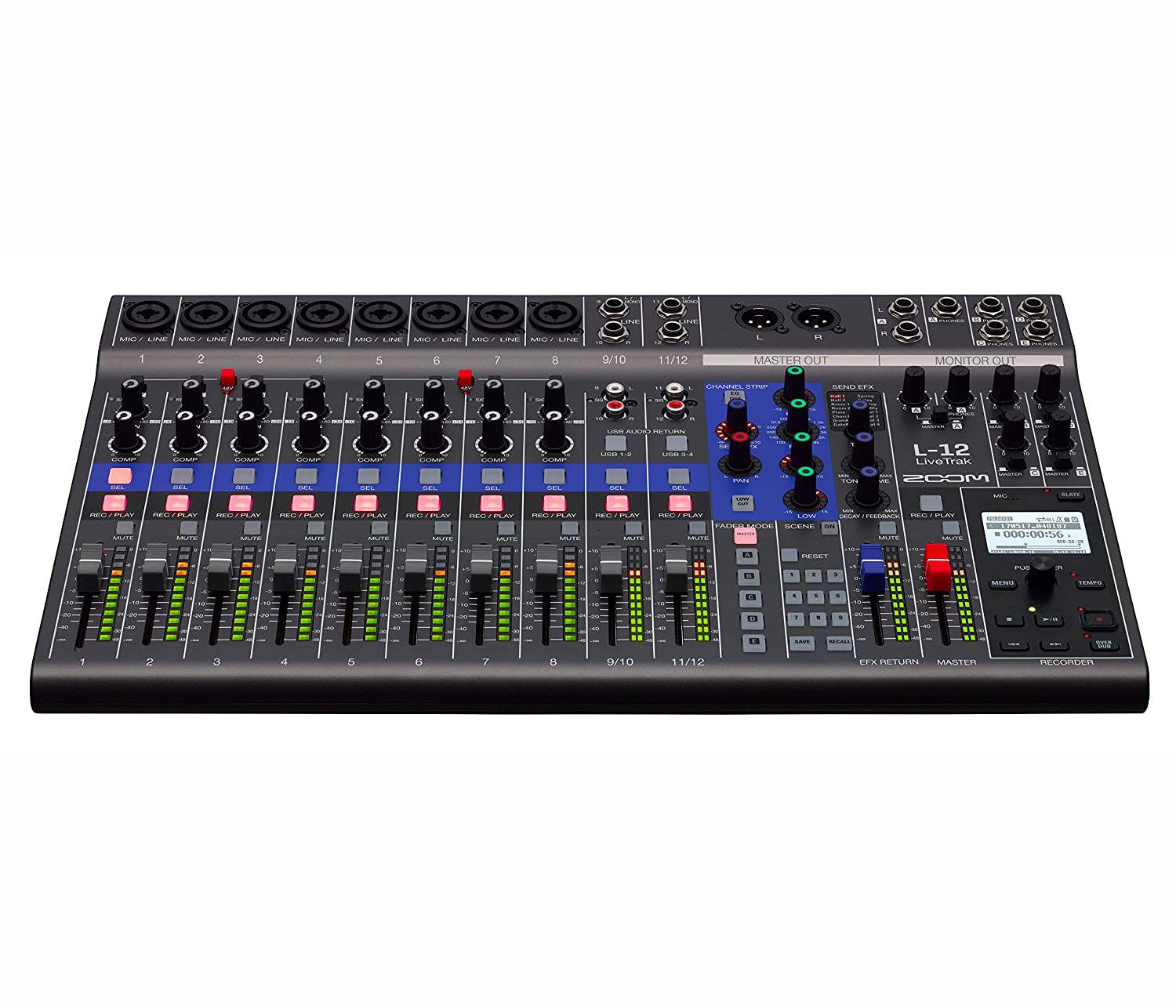

Zoom LiveTrak L-12 12-channel Digital Mixer / Recorder – Golchha Computers
Skip to content
Specs
NUMBER OF INPUT AND OUTPUT CHANNELS
| Inputs: |
Mono (MIC/LINE): 8 Stereo (LINE): 2 |
| Outputs: |
MASTER OUT: 1 MONITOR OUT: 5 |
|
|
INPUTS
| Mono (MIC/LINE): |
Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)) |
|
Input gain : PAD OFF: +16 – +60 dB PAD ON: −10 – +34 dB Hi-Z ON: +6 – +50 dB |
|
Input impedance : XLR: 3 kΩ TRS: 10 kΩ/1 MΩ (when Hi-Z ON |
|
Maximum input level : PAD OFF: 0 dBu (at 0 dBFS) PAD ON: +26 dBu (at 0 dBFS) |
|
Phantom power : +48 V |
| Stereo (LINE) |
Type TRS phone/RCA pin (unbalanced) jacks |
|
Maximum input level +16 dBu |
Outputs
| MASTER OUT |
Type XLR jacks (balanced) |
|
Maximum output level +14.5 dBu |
|
Output impedance 100 Ω |
| MONITOR OUT - A (TRS) |
Type TRS phone jacks (balanced) |
|
Maximum output level +14.5 dBu |
|
Output impedance 100 Ω |
| MONITOR OUT A–E (PHONES) |
Type Standard stereo phone jacks |
|
Maximum output level 42 mW + 42 mW at 60 Ω |
|
Output impedance 100 Ω |
Buses
| MASTER |
1 |
| MONITOR |
5 |
| SEND EFX |
1 |
Channel strip
| COMP |
|
| LOW CUT |
75 Hz, 12 dB/OCT |
| EQ |
HIGH: 10 kHz, ±15 dB, shelving MID: 100 Hz–8 kHz, ±15 dB, peaking LOW: 100 Hz, ±15 dB, shelving |
Recorder
| Maximum simultaneous recording tracks |
14 at 44.1/48 kHz 12 at 96 kHz |
| Maximum simultaneous playback tracks |
12 |
| Recording format |
WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV format |
| Recording media |
16MB–2GB SD cards, 4GB–32GB SDHC cards, 64GB– 512GB SDXC cards |
Audio interface
| 44.1/48kHz |
Recording: 14 channels | Playback: 4 channels |
| Bit depth |
24-bit |
| Interface |
USB 2.0 |
Card reader
| Class |
Mass storage USB 2.0 High Speed |
| Sampling rate |
44.1/48/96 kHz |
| Frequency characteristics |
Frequency characteristics (44.1 kHz): -1.0 dB: 20 Hz – 20 kHz | Frequency characteristics (96 kHz): -3.0 dB: 20 Hz – 40 kHz |
| Equivalent input noise |
Actual measurements: 128dB EIN (IHF-A) with +60dB/150Ω input |
| Display |
LCD with backlight (128×64 resolution) |
| Power supply |
AD-19 AC adapter (DC12V/2A) |
| External dimensions |
445 mm (W)×282 mm (D)×70.5 mm (H) |
| Weight (main unit only) |
2.53 kg |
