| General Specifications
| Specification |
Details |
| Name |

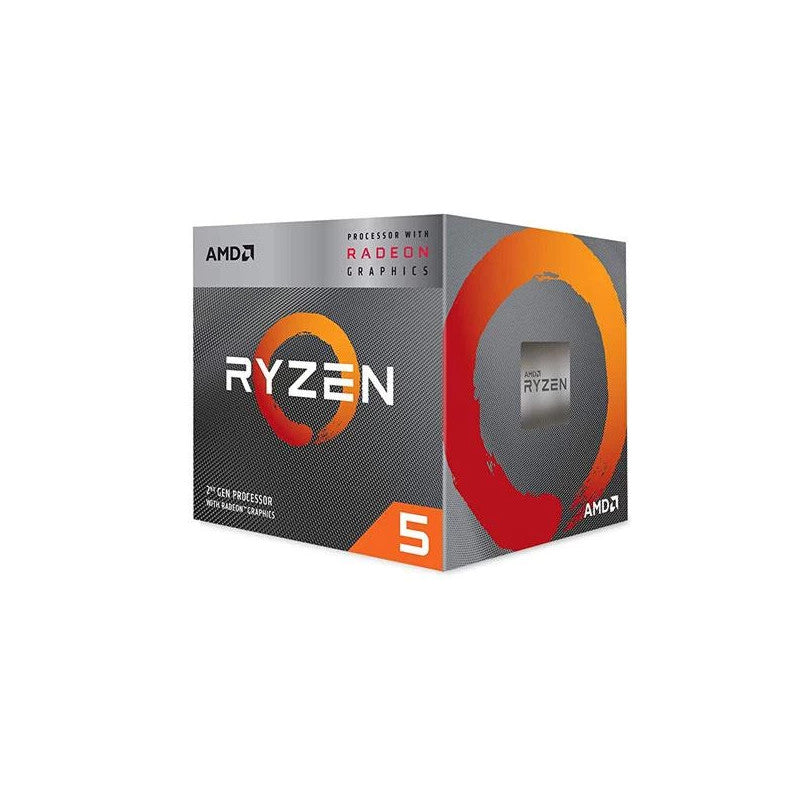

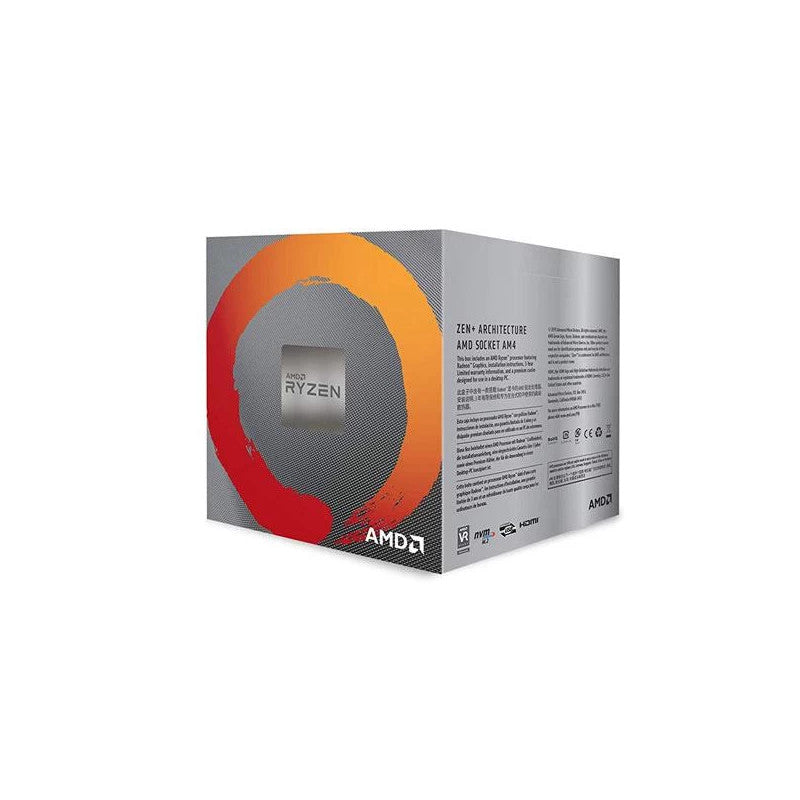

AMD Ryzen™ 5 3400G with Radeon™ RX Vega 11 Graphics |
| Family |
Ryzen |
| Series |
Ryzen 3000 Series |
| Form Factor |
Desktops , Boxed Processor |
| Market Segment |
Mainstream Desktop |
| Regional Availability |
Global , China , NA , EMEA , APJ , LATAM |
| Former Codename |
Picasso |
| Processor Architecture |
Zen+ |
| # of CPU Cores |
4 |
| Multithreading (SMT) |
Yes |
| # of Threads |
8 |
| Max. Boost Clock |
Up to 4.2 GHz |
| Base Clock |
3.7 GHz |
| L1 Cache |
384 KB |
| L2 Cache |
2 MB |
| L3 Cache |
4 MB |
| Default TDP |
65W |
| AMD Configurable TDP (cTDP) |
45-65W |
| Processor Technology for CPU Cores |
12nm FinFET |
| CPU Compute Die (CCD) Size |
210mm² |
| Package Die Count |
1 |
| Total Transistor Count |
4.94 Billion |
| Unlocked for Overclocking |
Yes |
| CPU Socket |
AM4 |
| Supporting Chipsets |
X570 , X470 , X370 , B450 , B350 , A320 |
| CPU Boost Technology |
Precision Boost 2 |
| Instruction Set |
x86-64 |
| Supported Extensions |
AES , AMD-V , AVX , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
| Max. Operating Temperature (Tjmax) |
95°C |
| Launch Date |
07/07/2019 |
| *OS Support |
Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
Connectivity
| Specification |
Details |
| Native USB 3.2 Gen 2 (10Gbps) |
0 |
| Native USB 3.2 Gen 1 (5Gbps) |
4 |
| Native USB 2.0 (480Mbps) |
0 |
| Native SATA Ports |
0 |
| PCI Express® Version |
PCIe® 3.0 |
| Native PCIe® Lanes (Total/Usable) |
20 , 16 |
Additional Usable PCIe Lanes from Motherboard
| Chipset |
Details |
| X470 |
2x Gen 3, 8x Gen 2 |
Connectivity
| Specification |
Details |
| NVMe Support |
Boot , RAID0 , RAID1 , RAID10 |
| System Memory Type |
DDR4 |
| Memory Channels |
2 |
| Max. Memory |
64 GB |
| System Memory Subtype |
UDIMM |
Max Memory Speed
| Configuration |
Memory Speed |
| 2x1R |
DDR4-2933 |
| 2x2R |
DDR4-2667 |
| 4x1R |
DDR4-2133 |
| 4x2R |
DDR4-1866 |
| Specification |
Details |
| ECC Support |
Yes (Requires mobo support) |
Graphics Capabilities
| Specification |
Details |
| Graphics Model |
Radeon™ RX Vega 11 Graphics |
| Graphics Core Count |
11 |
| Total Graphics Shaders |
704 |
| Graphics Frequency |
1400 MHz |
| GPU Max. Memory |
2 GB |
| WDDM Version |
2.7 |
| DirectX® Version |
12 |
| OpenGL® |
4.6 |
| OpenCL™ |
2.2 |
| DisplayPort™ Version |
1.4a |
| DisplayPort Extensions |
Adaptive-Sync , HBR3 , HDR Metadata |
| DisplayPort Max Refresh Rates (SDR) |
3840x2160 @ 60Hz , 3440x1440 @ 144Hz , 2560x1440 @ 180Hz , 1920x1080 @ 240Hz |
| DisplayPort Max Refresh Rates (HDR) |
3840x2160 @ 60Hz , 3440x1440 @ 60Hz , 2560x1440 @ 60Hz , 1920x1080 @ 120Hz |
| HDMI® Version |
2.0 |
| HDCP Version Supported |
2.2 |
| USB Type-C® DisplayPort™ Alternate Mode |
Yes |
| Multi-Monitor Support |
Yes |
| Max Displays |
3 |
| AMD FreeSync™ |
Yes |
| AMD Eyefinity Single Large Surface (SLS) |
No |
| Wireless Display |
Miracast |
| Max Video Encode Bandwidth (SDR) |
1080p205 8bpc H.264, 1440p115 8bpc H.264, 2160p51 8bpc H.264, 1080p205 8bpc H.265, 1440p115 8bpc H.265, 2160p51 8bpc H.265 |
| Max Video Decode Bandwidth |
1080p60 MPEG2, 1080p60 VC1, 1080p240 8bpc VP9, 1080p240 10bpc VP9, 1080p240 H.264, 1080p240 8bpc H.265, 1080p240 10bpc H.265, 1080p240 JPEG 8bpc |
Product IDs
| Specification |
Details |
| Product ID Boxed |
YD3400C5FHSBX* |
| Product ID Tray |
YD3400C5M4MFH |
| Product ID MPK |
YD3400C5FHSPK* |
Security
| Specification |
Details |
| AMD Enhanced Virus Protection (NX bit) |
Yes |
|
Regular price
Rs. 8,999.00
Sale price
Rs. 8,999.00
