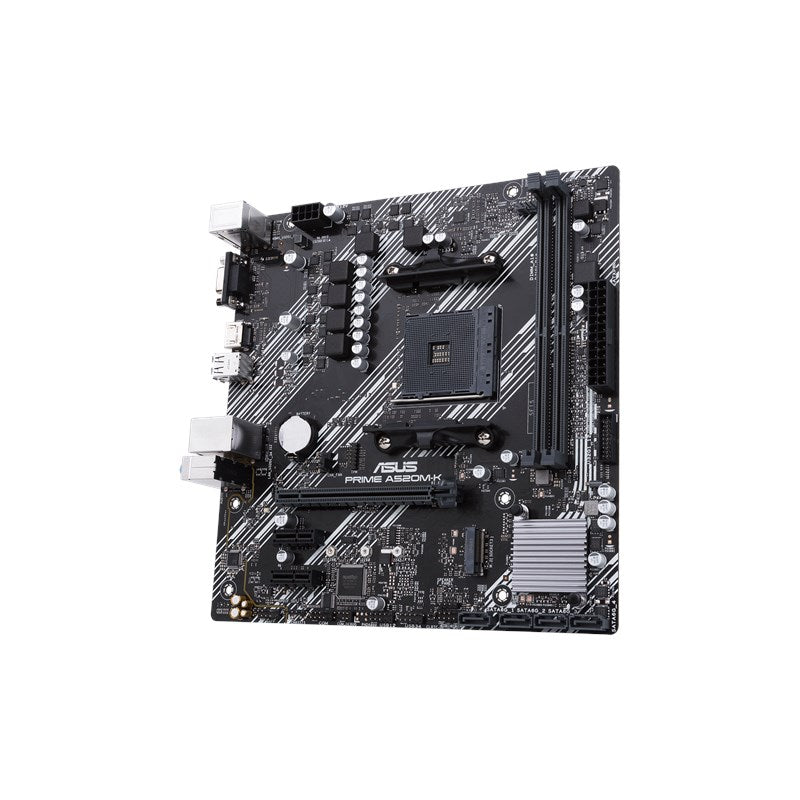

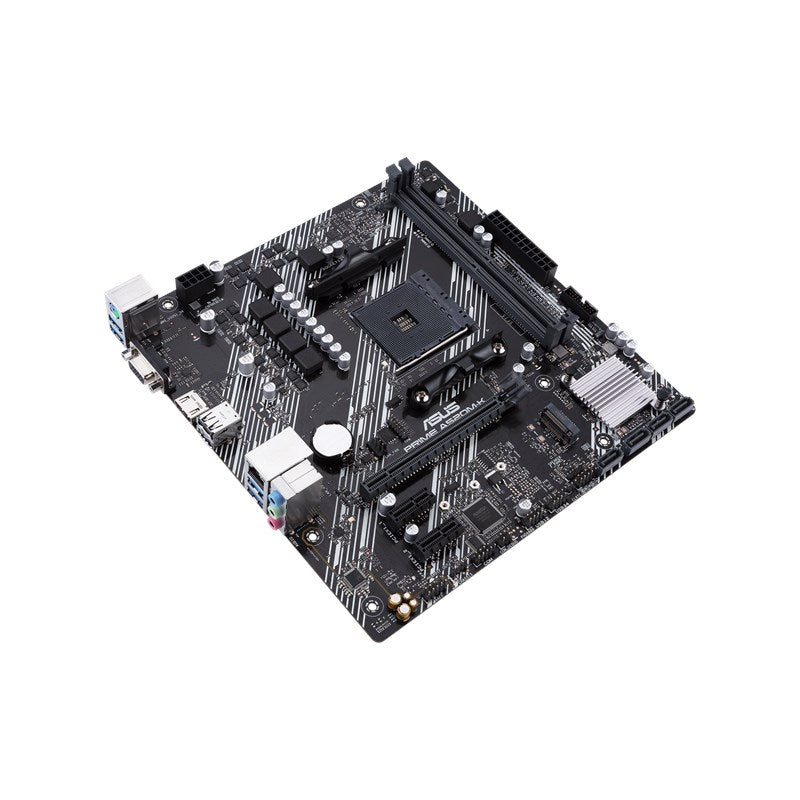

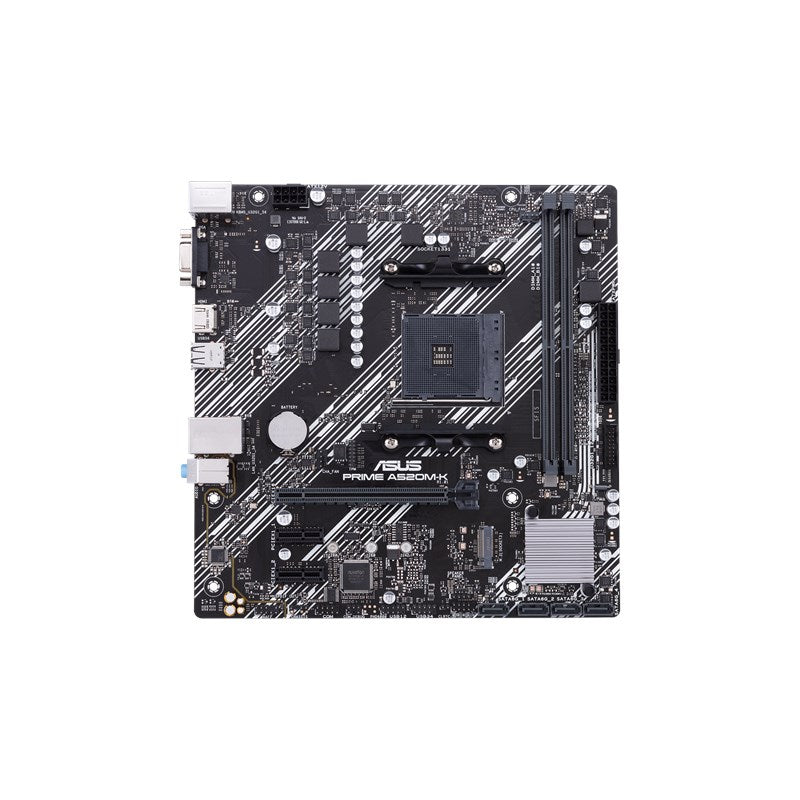

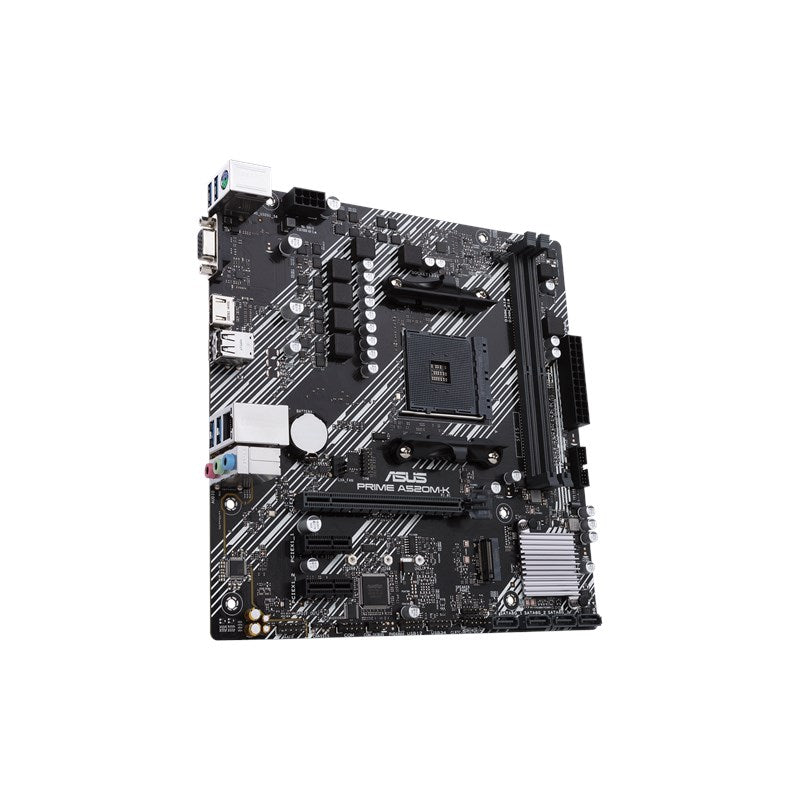

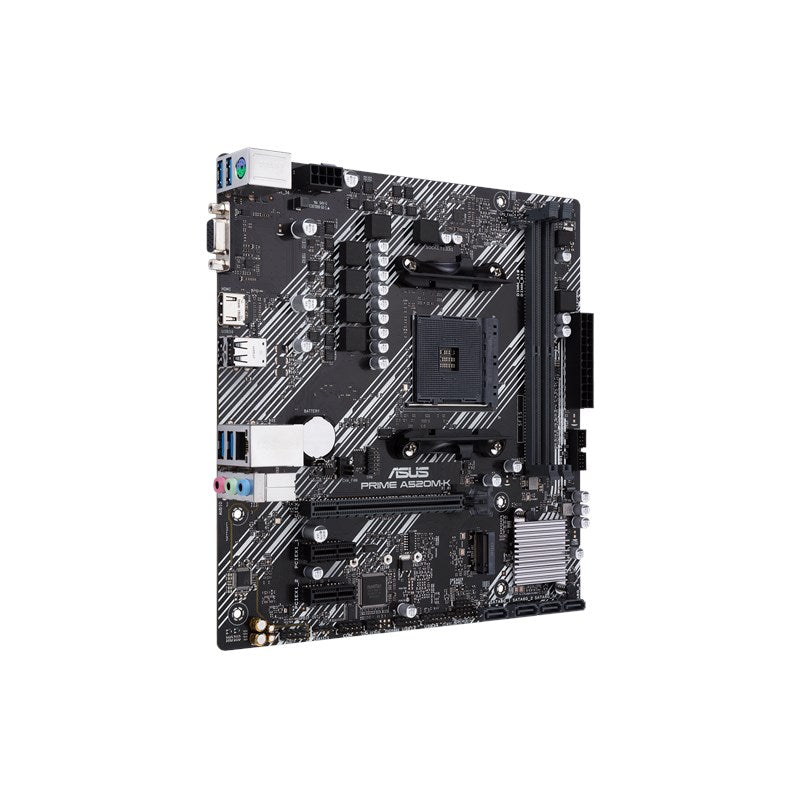

ASUS PRIME A520M-K AMD AM4 DDR4 MOTHERBOARD
ASUS PRIME A520M-K AMD AM4 DDR4 MOTHERBOARD
Regular price
Rs. 0.00
Sale price
Rs. 0.00
Regular price
GST included.
Out of stock
Features and Specifications
Features and Specifications
AMD A520 (Ryzen AM4) micro ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Type-A
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Comprehensive cooling: PCH heatsink and Fan Xpert
- Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
- 5X Protection III: Multiple hardware safeguards for all-around system protection
| Model | PRIME A520M-K |
| CPU | AMD AM4 Socket for AMD Ryzen™ 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series Desktop Processors Refer to ASUS's website for the latest CPU support list. |
| Chipset | AMD A520 |
| Memory | 2 × DIMM slots, maximum 64 GB DDR4 5100(O.C.) / 4866(O.C.) / 4666(O.C.) / 4600(O.C.) / 4466(O.C.) / 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4200(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Un-buffered Memory Dual channel memory architecture ECC Memory support varies by CPU Refer to ASUS's website for the Memory QVL. Supported memory frequency depends on the CPU. |
| Graphics | 1 × D-Sub 1 × HDMI 2.1, supporting up to 4K @ 60 Hz |
| Expansion Slots | AMD Ryzen™ 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series Desktop Processors: • 1 × PCIe 3.0 x16 slot, running at x16 AMD A520 Chipset: • 2 × PCIe 3.0 x1 slots |
| Storage | Total support for 1 × M.2 slot and 4 × SATA 6Gb/s ports AMD A520 Chipset: • 1 × M.2 Socket 3, M key, type 2242/2260/2280, supporting PCIe 3.0 x4 and SATA storage devices • 4 × SATA 6Gb/s ports • RAID 0, RAID 1, and RAID 10 support |
| LAN | Realtek® RTL8111H 1Gb Ethernet ASUS LANGuard |
| Audio | Realtek® ALC887/897 7.1 Surround Sound High Definition Audio CODEC Supports jack detection, multi-streaming, front-panel jack retasking, and up to 24-bit/192 kHz playback Audio shielding Dedicated audio PCB layers Choose a chassis with an HD audio module on the front panel to support 8-channel audio output. |
| USB Ports | Front USB ports: 6 total • 2 × USB 3.2 Gen 1 ports through internal header • 4 × USB 2.0 ports through internal headers Rear USB ports: 6 total • 4 × USB 3.2 Gen 1 Type-A ports • 2 × USB 2.0 Type-A ports |
| Software Features | ASUS Exclusive Software: Armoury Crate AI Suite 3 Performance and Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert EZ Update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (60-day free trial) WinRAR UEFI BIOS / ASUS EZ DIY: ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode |
| ASUS Special Features | ASUS 5X Protection III: • ASUS DIGI+ VRM • ASUS LANGuard • ASUS Overvoltage Protection • ASUS SafeSlot Core • ASUS Stainless-Steel Back I/O ASUS Q-Design: • ASUS Q-DIMM • ASUS Q-Slot ASUS Thermal Solution: • Aluminum heatsink design |

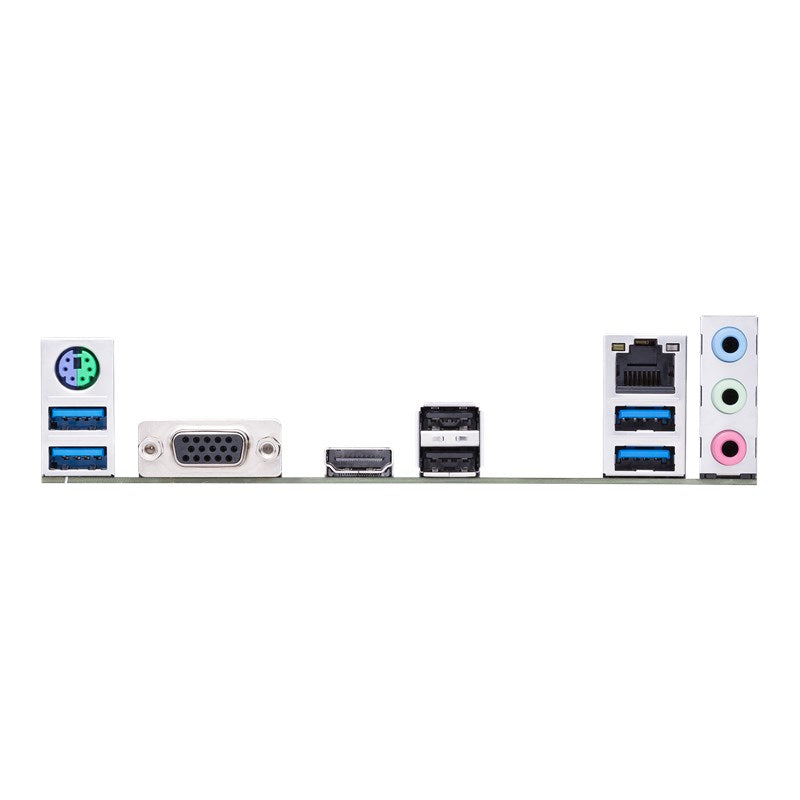

| Back I/O Ports | 4 × USB 3.2 Gen 1 Type-A ports 2 × USB 2.0 Type-A ports 1 × PS/2 keyboard/mouse combo port 1 × D-Sub 1 × HDMI 1 × LAN (RJ-45) port 3 × audio jacks |
| Internal I/O Ports | 1 × USB 3.2 Gen 1 header supporting 2 additional USB 3.2 Gen 1 ports 2 × USB 2.0 headers supporting 4 additional USB 2.0 ports 1 × CPU fan connector 1 × chassis fan connector 1 × M.2 Socket 3, M key, type 2242/2260/2280, supporting SATA and PCIe 3.0 x4 storage devices 4 × SATA 6Gb/s connectors 1 × SPI TPM header 1 × S/PDIF Out header 1 × 24-pin EATX power connector 1 × 8-pin EATX 12V power connector 1 × front-panel audio connector (AAFP) 1 × Clear CMOS jumper 1 × system panel connector 1 × COM port header 1 × speaker connector |

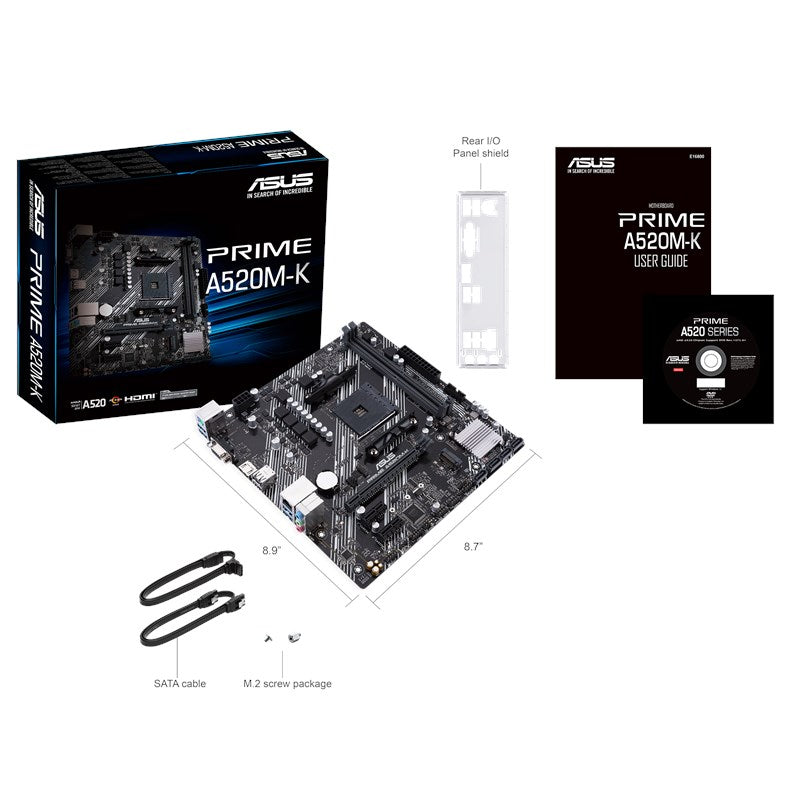

| Accessories | 1 × M.2 SSD screw package 2 × SATA 6Gb/s cables User manual I/O shield 1 × supporting DVD |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor | mATX Form Factor; 8.9 × 8.7 inches (22.6 × 22.1 cm) |
