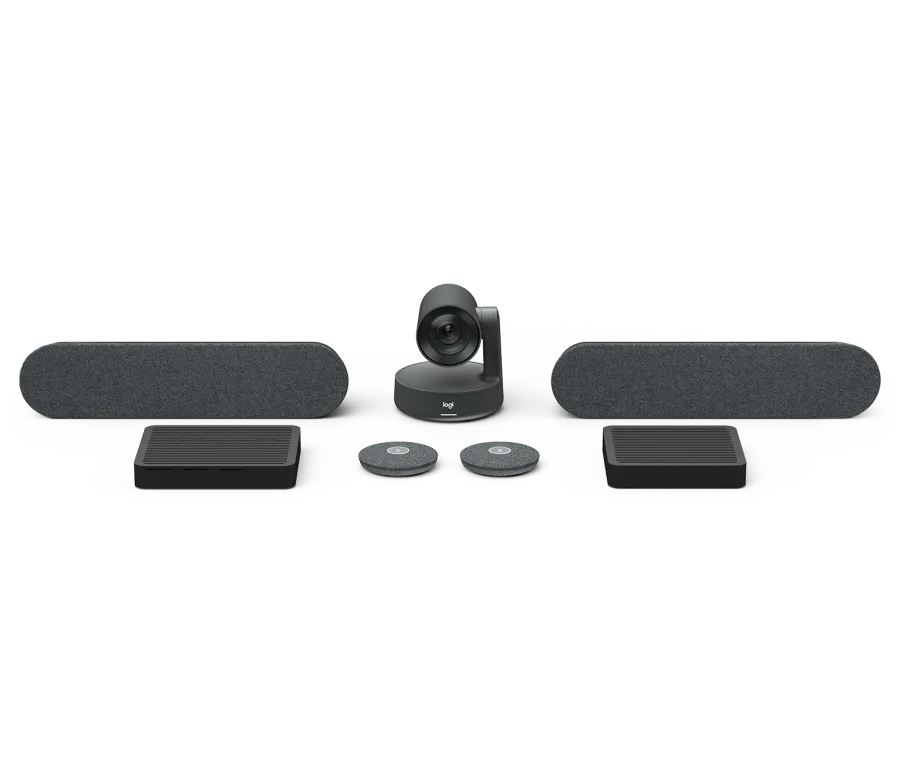

Logitech Rally Plus Premier modular video conferencing system for large and extra large rooms for (Upto 20 People)
Looks Brilliant Upgrade your large room meeting experience with cinema-quality video, outstanding color, and exceptional optical accuracy. STAYS FOCUSED Using AI, human figure detection, and automated PTZ, Rally adapts to meeting...
Claim your GST Invoice with this order
Guaranteed Safe Checkout
Dispatched usually within 24 hours.
Looks Brilliant
Upgrade your large room meeting experience with cinema-quality video, outstanding color, and exceptional optical accuracy.
STAYS FOCUSED
Using AI, human figure detection, and automated PTZ, Rally adapts to meeting dynamics and keeps the camera on the action.
SOUNDS AWESOME
Rally’s ultra-low distortion speakers deliver crystal clear, room-filling sound and make sure every voice is clearly heard.
PICKS UP VOICES AT EVERY SEAT
Rally’s exquisitely sensitive mic pods ensure that everyone in the meeting is clearly heard.
Additional Features
SEE EVERYONE, PERFECTLY FRAMED
Logitech RightSight™ camera control automatically moves and adjusts the lens to comfortably frame meeting participants in rooms of all shapes and sizes.
LET THE SUNSHINE IN
Even in meeting rooms with bright windows, Logitech RightLight™ technology with Wide Dynamic Range (WDR) prioritizes faces and human figures over objects and surfaces. The result is a balanced image that renders participants in flattering light with reduced glare and softer shadows, even in dim or backlit conditions.
ADAPTIVE PAN, TILT AND ZOOM
Pan and tilt speeds automatically adapt to the level of zoom. The result: faster camera movement when zoomed out for quick framing and slower camera movement when zoomed in for more control.
FRONT OF ROOM AUDIO
Unlike tabletop speakerphones that decouple voices from video, Rally speakers are designed for placement at the front of the room. By aligning speakers with the display, a person’s voice and video both come from the same place — and never from behind you — so conversations feel more natural and lifelike.
OPTIONAL MOUNTING KIT
Add Rally Mounting Kit for a streamlined installation of each component. Strong wall mounts allow ideal placement for the camera and two speakers, while ventilated mounting plates attach the display and table hubs on a wall or beneath a table. Two cleverly-designed retainers keep cables secure.
LOUD AND CLEAR
The Rally display hub powers up to two speakers, providing rich sound even in larger rooms. A patented suspension system virtually eliminates vibrations that travel through walls, stands, and tables. This improves echo cancellation while keeping video shake-free, even at high volume levels and when zoomed in.
UP TO 7 MIC PODS
For rooms with more than 10 participants, add Rally Mic Pods to expand audio coverage and provide convenient access to mute controls. Each pod adds coverage for six more participants, so you can deploy Rally in large meeting spaces and boardrooms with up to 46 people.
FLEXIBLE MIC POD CABLING
A more flexible alternative to daisy-chain connections, Rally Mic Pod Hub makes it easy to run cables beneath the table with three connections for Rally Mic Pods or additional Mic Pod Hubs. With a single-cable connection, participants can reposition individual mic pods to make space on the table or to bring mute control within easy reach.
Expand the Conversation
Add up to 7 mic pods to accommodate larger groups and provide convenient access to mute controls.
DIMENSIONS
Rally Camera
Height: 182.5 mm
Width: 152 mm
Depth: 152 mm
Rally Speaker
Height: 103 mm
Width: 449 mm
Depth: 80 mm
Rally Mic Pod
Height: 21 mm
Width: 102 mm
Depth: 102 mm
Rally Display Hub
Height: 40 mm
Width: 206 mm
Depth: 179 mm
Rally Table Hub
Height: 40 mm
Width: 176 mm
Depth: 138 mm
SYSTEM REQUIREMENTS
Operating Systems
Windows 7, 8.1 or Windows 10
macOS: 10.10 or higher
ChromeOS
Resolutions higher than 1080p
Windows 8.1 or higher or macOS 10.10 or higher
USB 3.0 port
Compatible software
TECHNICAL SPECIFICATIONS
RIGHTSENSE TECHNOLOGIES
RightLight with WDR
Low-light compensation
Video noise reduction
Low-light saturation optimization
Renders natural skin tones for each participant on camera
Reduces backlighting and glare without darkening the entire image.
RightSight 1Please see RightSight Availability for details.
Human figure detection
Auto-frame participants at meeting start
Auto-frame participants on-demand
Auto-reframe participants during meetings
RightSound
Machine learning AI trained to distinguish human speech from other sounds
AEC (Acoustic Echo Cancellation)
VAD (Voice Activity Detector)
Background noise suppression
Auto-level loud and soft voices
RightSound Mic Matrix
Very low distortion broadside beamforming algorithm steers the factory-paired microphones directly at the talker for the best voice pickup and noise reduction
Supports up to 56 acoustic beams (8 per Rally Mic Pod) to lock onto the active talker
Beam focus refresh rate: 8ms (125 times/second)
Anti-Vibration Suspension
A patent-pending suspension system decouples the speaker module within the external enclosure, virtually eliminating the vibrations that can travel through walls, stands, and tables. This improves the echo cancelling performance of Rally Mic Pods, while ensuring that video images remain clear and steady, even at high volume levels and when zoomed in.
Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion

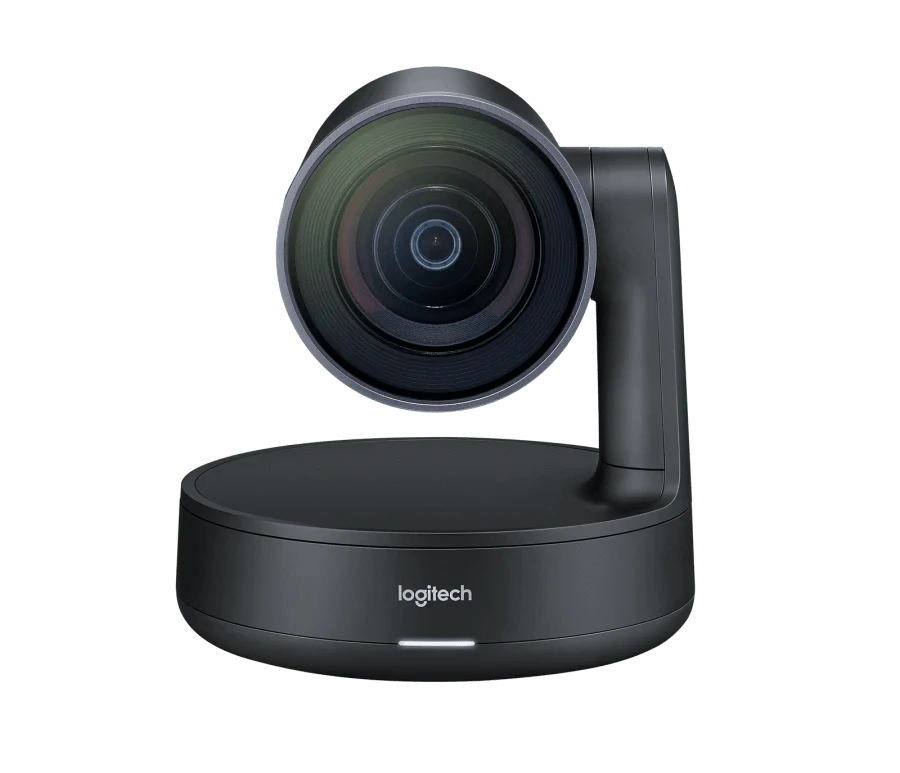

Rally Camera
Zoom: 15x HD zoom (5x optical + 3x digital)
Pan: 180° (±90°)
Tilt: 140° (+50° / -90°)
Field of View
Diagonal: 90°
Horizontal: 82°
Vertical: 52°
Total Room Coverage: 262° wide x 192° tall (field of view + pan and tilt)
Resolutions @ 30fps: 4K Ultra HD, 1440p, 1080p, 900p, 720p, and SD
Resolutions @ 60fps: 1080p, 720p
RightLight Technologies: Wide Dynamic Range (WDR), low-light compensation, video noise reduction, low-light saturation optimization
Privacy: Lens parks at -90° in sleep mode for assured privacy
Rally Mic Pod
Pickup Range: 7 m diameter
Four omnidirectional microphones forming eight acoustic beams
AEC: Acoustic Echo Cancellation
VAD: Voice Activity Detector
Background noise suppression
Mute button with LED status indicator
Captive 2.95 m 12-pin cable
Daisy chain up to 7 Rally Mic Pods
Frequency Response: 90Hz – 16kHz
Sensitivity: >-27 dB +/-1dB @ 1Pa
Microphone data rate: 48 kHz
Recommended # of participants
Rally (one Mic Pod): 16
Rally Plus (two Mic Pods): 16
Additional participants per Mic Pod: 6
Recommended participants for Rally with 7 Mic Pods: 46

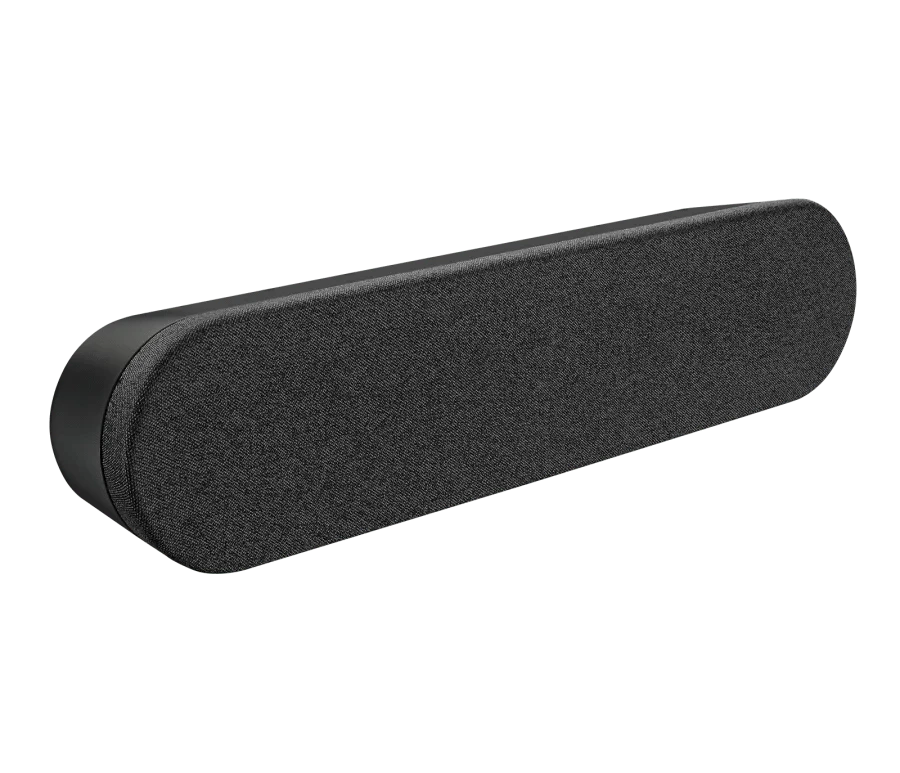

Rally Speaker
High-performance 76 mm driver with rare-earth magnet
Patent-pending suspension system eliminates vibration-induced camera shake and audio interference
Mini XLR cable connects to Rally Display Hub for both signal and power
Speaker volume 95dB SPL @1W, 100dB SPL @7.5W, both +/-2dB at ½ meter
Sensitivity: 95+/-2 dB SPL at ½ meter
Distortion: 200Hz–300Hz <2.5%, 300Hz–10kHz < 1%@7.5W
Sampling rate: 48 kHz

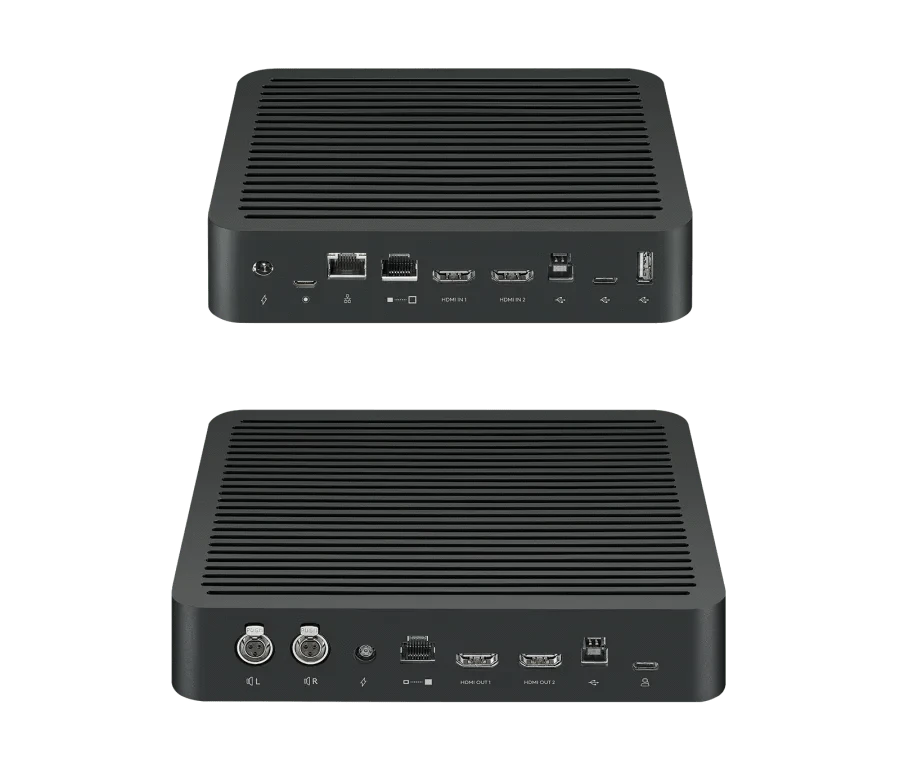

Rally Table Hub
Single CAT6A cable connection to Rally Display Hub 5 m cable included, supports customer-supplied cables up to 50 m
Hub 5 m cable included, supports customer-supplied cables up to 50 m
Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8 ms
12 Pin connector for Rally Mic Pod
HDMI Type A passthrough to Display Hub (x2)
USB Type C
USB Type A (reserved for future capability)
USB Type B (connects to meeting room computer)
RJ45 (reserved for future capability)
Power input
Rally Display Hub
HDMI Type A: (x2) (connects to displays)
USB C (connects to Rally Camera)
USB Type B (connects to meeting room computer)
RJ45: connects to Table Hub
Mini XLR: x2
Powers one or two Rally Speakers
Power input

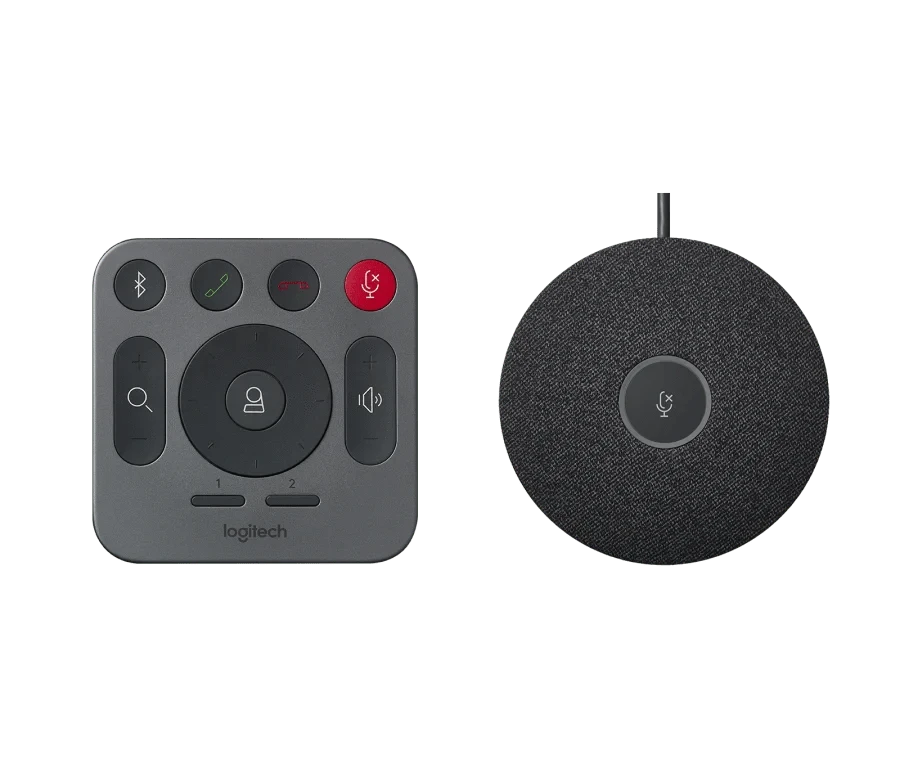

Remote Control
RF remote control (line of sight not required)
CR2032 batteries (included)
Cables / Power
Camera to Display Hub
2 m USB 3.1 Type C to USB Type C 3.1
Conference Room Computer to Display or Table Hub
2 m USB 3.1 Type A to USB Type B
Display Hub to Table Hub
5 m CAT6A Ethernet cable (supports customer-supplied cables up to 50 m
Display Hub to Speaker (x2)
2.95 m Mini XLR (supports customer-supplied extension cables up to 3 m
Conference Room Computer to Displays (x2)
2 m HDMI A
Mic Pod
2.95 m: Hardwired with 12 pin connector
Power Outlets to Power Supplies (x2): 1 m
1 m
Power Supplies to Table Hub / Display Hub (x2)
1.5 m

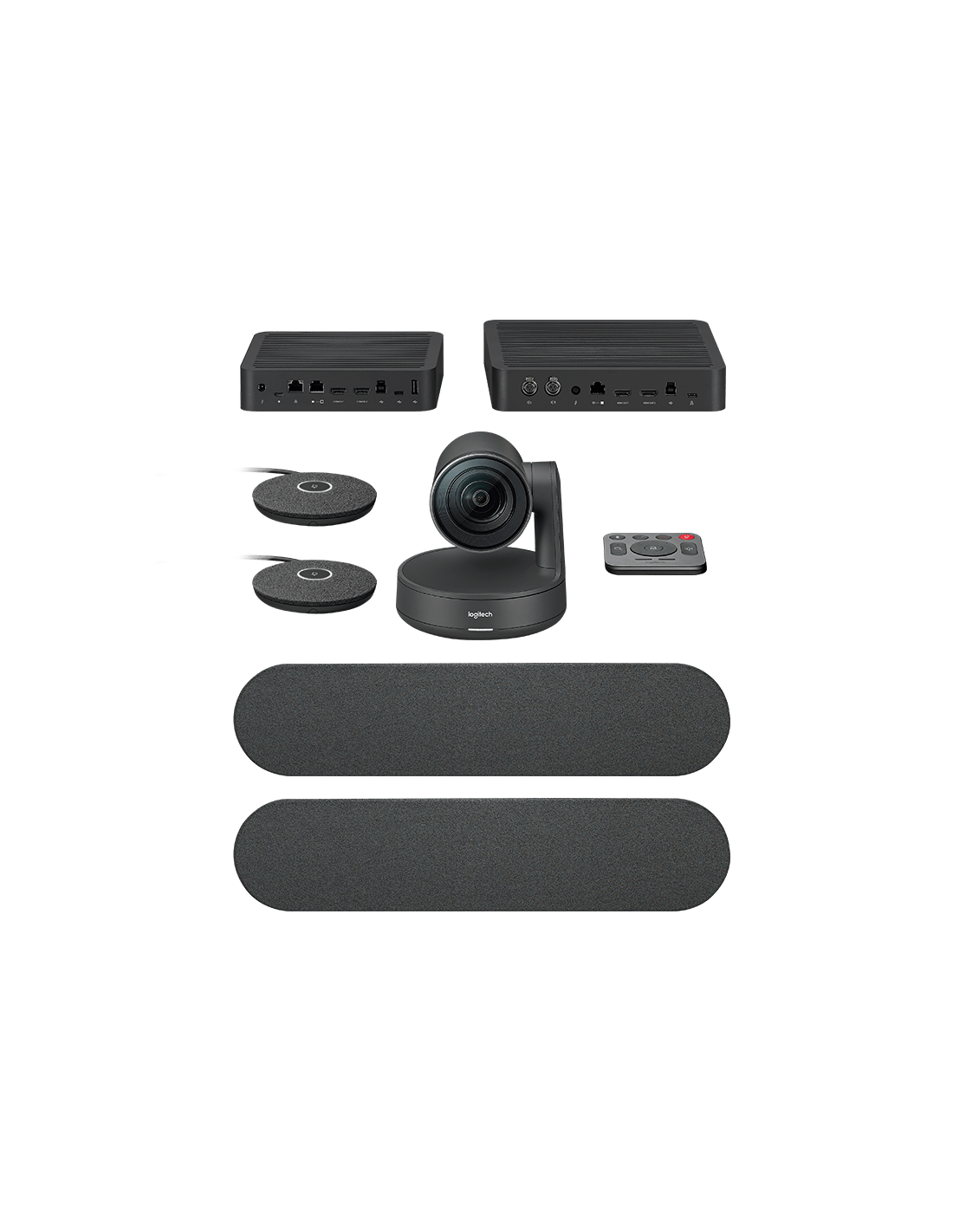

PACKAGE CONTENTS
Logitech Rally Plus
Rally Camera
Rally Display Hub
Rally Table Hub
Rally Speaker (x2)
Rally Mic Pod (x2)
Remote control
USB Type C to USB Type C
USB Type A to USB Type B
CAT6A Ethernet cable
HDMI Type A (x2)
A/C cables (x2)
Power Supplies (x2)
Documentation
WARRANTY INFORMATION
2-Year Limited Hardware Warranty
PART NUMBER
Rally Plus : 960-001275
