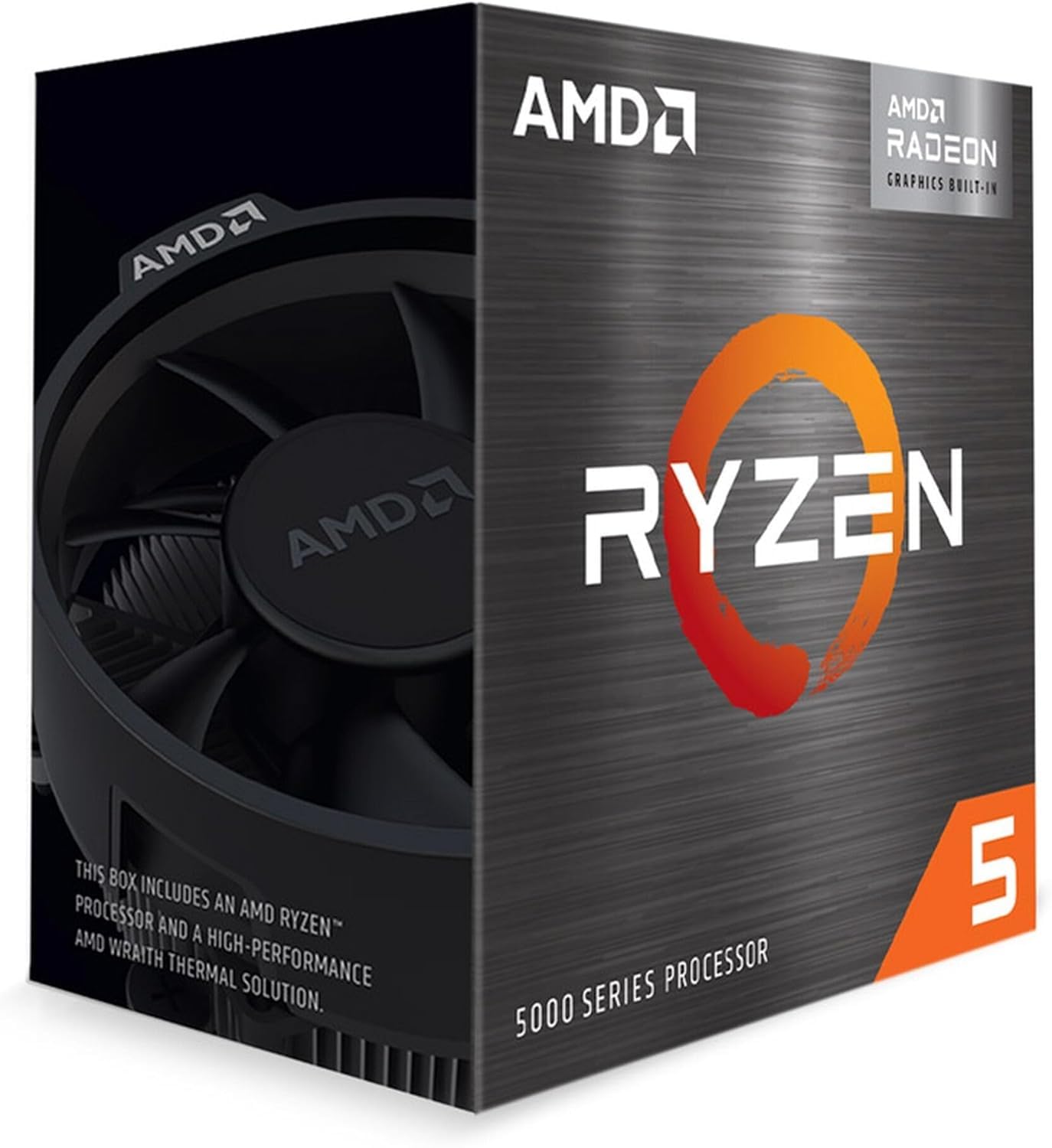

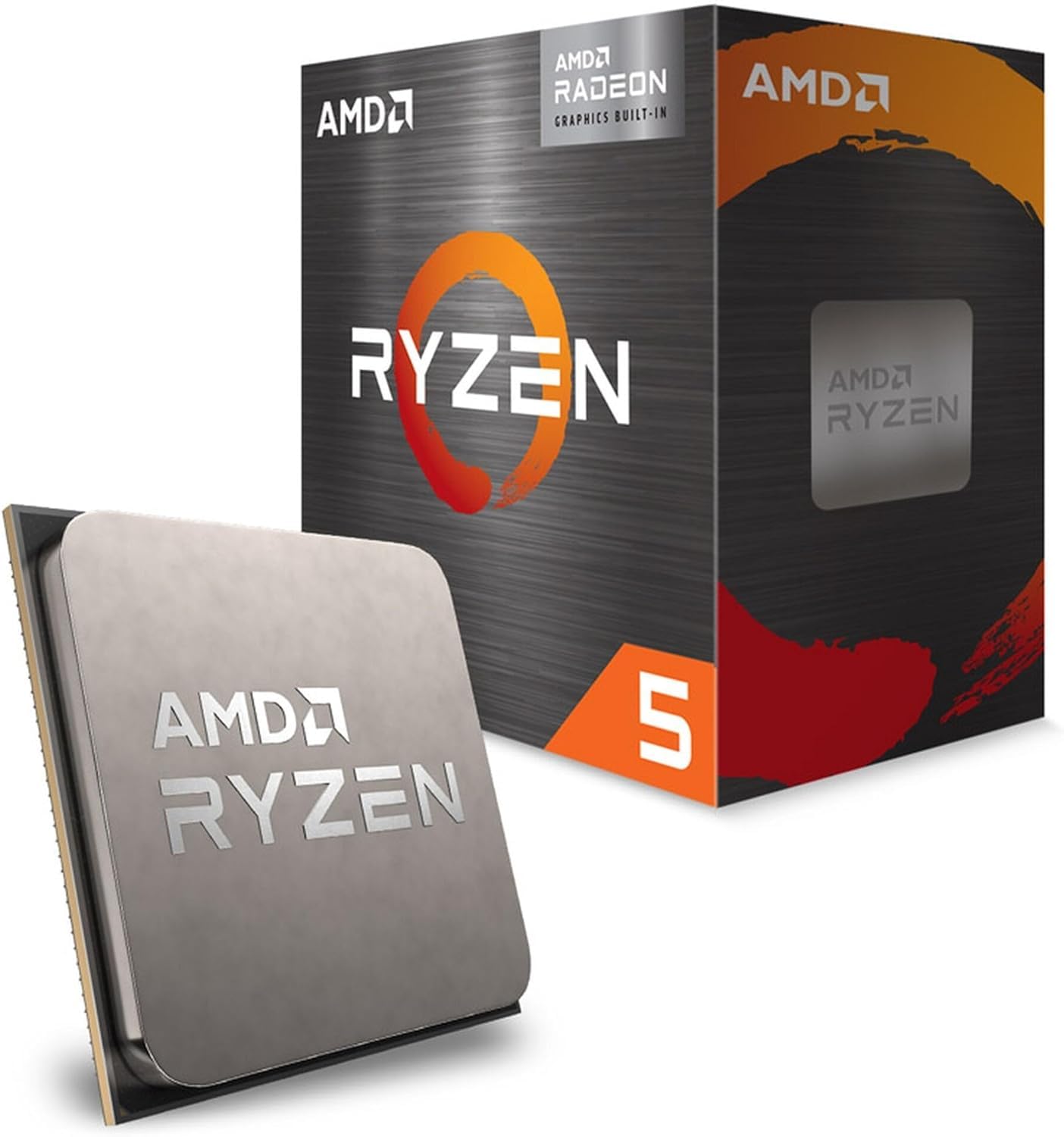

AMD Ryzen™ 5 5600GT Desktop Processor

General Specifications

Specification	Details
Name	AMD Ryzen™ 5 5600GT
Family	Ryzen
Series	Ryzen 5000 Series
Form Factor	Desktops , Boxed Processor
Market Segment	Mainstream Desktop
Regional Availability	Global , China , NA , EMEA , APJ , LATAM
Former Codename	Cezanne
Processor Architecture	Zen 3
# of CPU Cores	6
Multithreading (SMT)	Yes
# of Threads	12
Max. Boost Clock	Up to 4.6 GHz
Base Clock	3.6 GHz
L1 Cache	384 KB
L2 Cache	3 MB
L3 Cache	16 MB
Default TDP	65W
AMD Configurable TDP (cTDP)	45-65W
Processor Technology for CPU Cores	TSMC 7nm FinFET
CPU Compute Die (CCD) Size	180mm²
Package Die Count	1
Unlocked for Overclocking	Yes
CPU Socket	AM4
Thermal Solution (PIB)	AMD Wraith Stealth
Thermal Solution (MPK)	AMD Wraith Stealth
Max. Operating Temperature (Tjmax)	95°C
Launch Date	01/08/2024
*OS Support	Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Specification	Details
PCI Express® Version	PCIe® 3.0
NVMe Support	Boot , RAID0 , RAID1 , RAID10
System Memory Type	DDR4
Memory Channels	2
Max. Memory	128 GB
System Memory Subtype	UDIMM
System Memory Specification	Up to 3200 MT/s

Max Memory Speed

Configuration	Memory Speed
2x1R	DDR4-3200
2x2R	DDR4-3200
4x1R	DDR4-2933
4x2R	DDR4-2667

Graphics Capabilities

Specification	Details
Graphics Model	Radeon™ Graphics
Graphics Core Count	7
Graphics Frequency	1900 MHz

Product IDs

Specification	Details
Product ID Boxed	100-100001488BOX
Product ID Tray	100-000001488
Product ID MPK	100-100001488MPK
