| General Specifications
| Specification |
Details |
| Name |

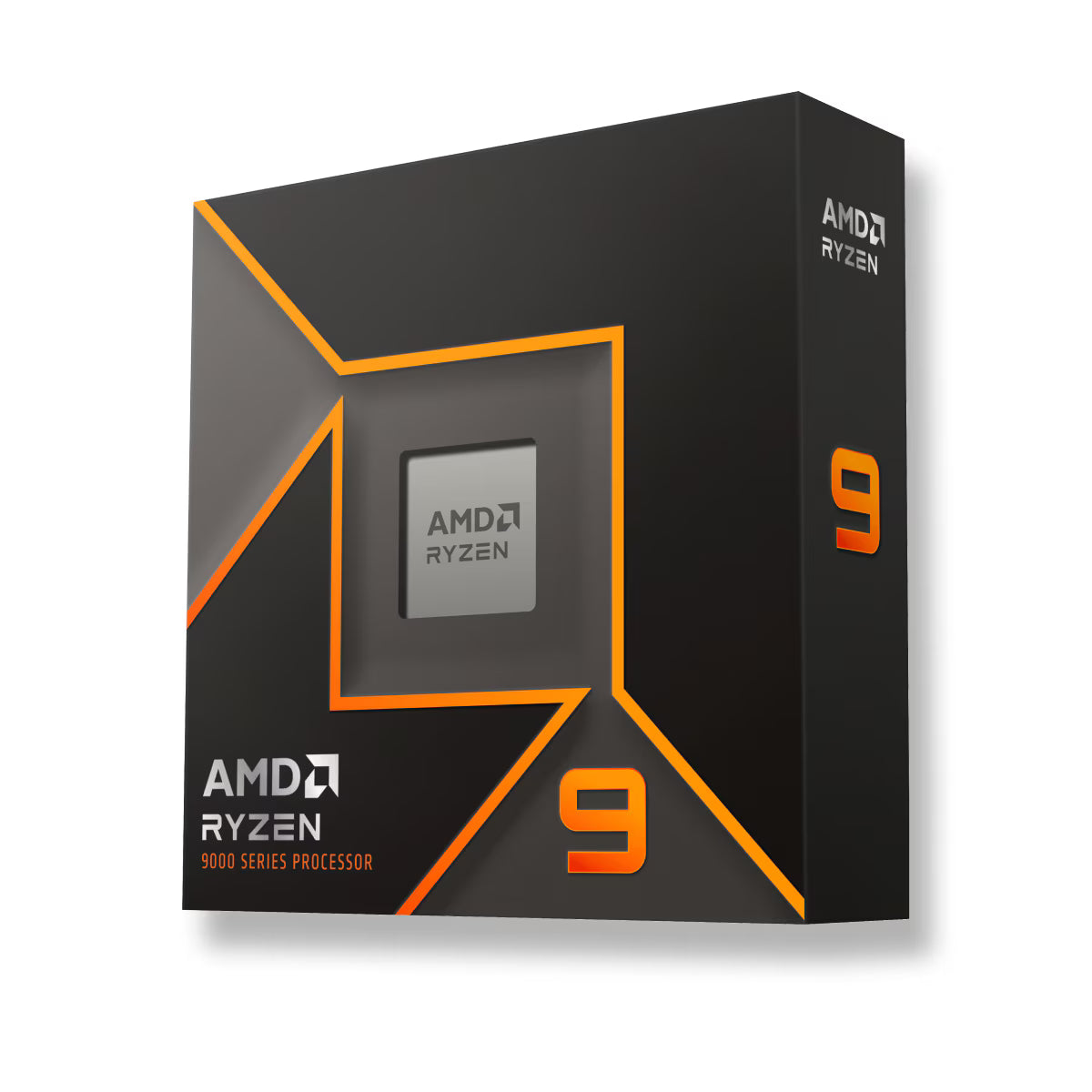

AMD Ryzen™ 9 9950X |
| Family |
Ryzen |
| Series |
Ryzen 9000 Series |
| Form Factor |
Desktop, Boxed Processor |
| Market Segment |
Enthusiast Desktop |
| Regional Availability |
Global |
| Former Codename |
Granite Ridge AM5 |
| Processor Architecture |
Zen 5 |
| CPU Cores |
16 |
| Multithreading (SMT) |
Yes |
| Threads |
32 |
| Maximum Boost Clock |
Up to 5.7 GHz |
| Base Clock |
4.3 GHz |
| L1 Cache |
1280 KB |
| L2 Cache |
16 MB |
| L3 Cache |
64 MB |
| Default TDP |
170W |
| CPU Core Manufacturing Process |
TSMC 4nm FinFET |
| I/O Die Manufacturing Process |
TSMC 6nm FinFET |
| Package Die Count |
3 |
| Unlocked for Overclocking |
Yes |
| AMD EXPO™ Memory Overclocking |
Yes |
| Precision Boost Overdrive |
Yes |
| Curve Optimizer Voltage Offsets |
Yes |
| AMD Ryzen™ Master Support |
Yes |
| CPU Socket |
AM5 |
| Supporting Chipsets |
A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| CPU Boost Technology |
Precision Boost 2 |
| Instruction Set |
x86-64 |
| Supported Extensions |
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution Included |
No |
| Recommended Cooler |
Liquid cooler recommended for optimal performance |
| Maximum Operating Temperature |
95°C |
| Launch Date |
15 August 2024 |
| Operating System Support |
Windows 11 64-bit, Windows 10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit |
Connectivity
| Specification |
Details |
| Native USB 3.2 Gen 2 Ports |
4 |
| Native USB 2.0 Ports |
1 |
| PCI Express Version |
PCIe 5.0 |
| Native PCIe Lanes |
28 total / 24 usable |
| NVMe Support |
Boot, RAID 0, RAID 1, RAID 5, RAID 10 |
Additional PCIe Lanes by Chipset
| Chipset |
Additional Usable PCIe Lanes |
| X870E |
8 × PCIe Gen 4 |
| X870 |
4 × PCIe Gen 4 |
| X670E |
12 × PCIe Gen 4 |
| X670 |
12 × PCIe Gen 4 |
| B650E |
8 × PCIe Gen 4 |
| B650 |
8 × PCIe Gen 4 |
Memory Specifications
| Specification |
Details |
| System Memory Type |
DDR5 |
| Memory Channels |
2 |
| Maximum Memory Capacity |
256 GB |
| Memory Subtype |
UDIMM |
| 2 × 1R Maximum Memory Speed |
DDR5-5600 |
| 2 × 2R Maximum Memory Speed |
DDR5-5600 |
| 4 × 1R Maximum Memory Speed |
DDR5-3600 |
| 4 × 2R Maximum Memory Speed |
DDR5-3600 |
| ECC Support |
Yes, requires motherboard support |
Integrated Graphics
| Specification |
Details |
| Graphics Model |
AMD Radeon™ Graphics |
| Graphics Core Count |
2 |
| Graphics Frequency |
2200 MHz |
| USB Type-C DisplayPort Alternate Mode |
Yes |
Product IDs
| Specification |
Details |
| Boxed Product ID |
100-100001277WOF |
| Tray Product ID |
100-000001277 |
Key Features
| Specification |
Details |
| Supported Technologies |
AMD EXPO™ Technology, AMD Ryzen™ Technologies |
|
Regular price
Rs. 63,999.00
Sale price
Rs. 63,999.00
Regular price
| AMD | Processor | |
