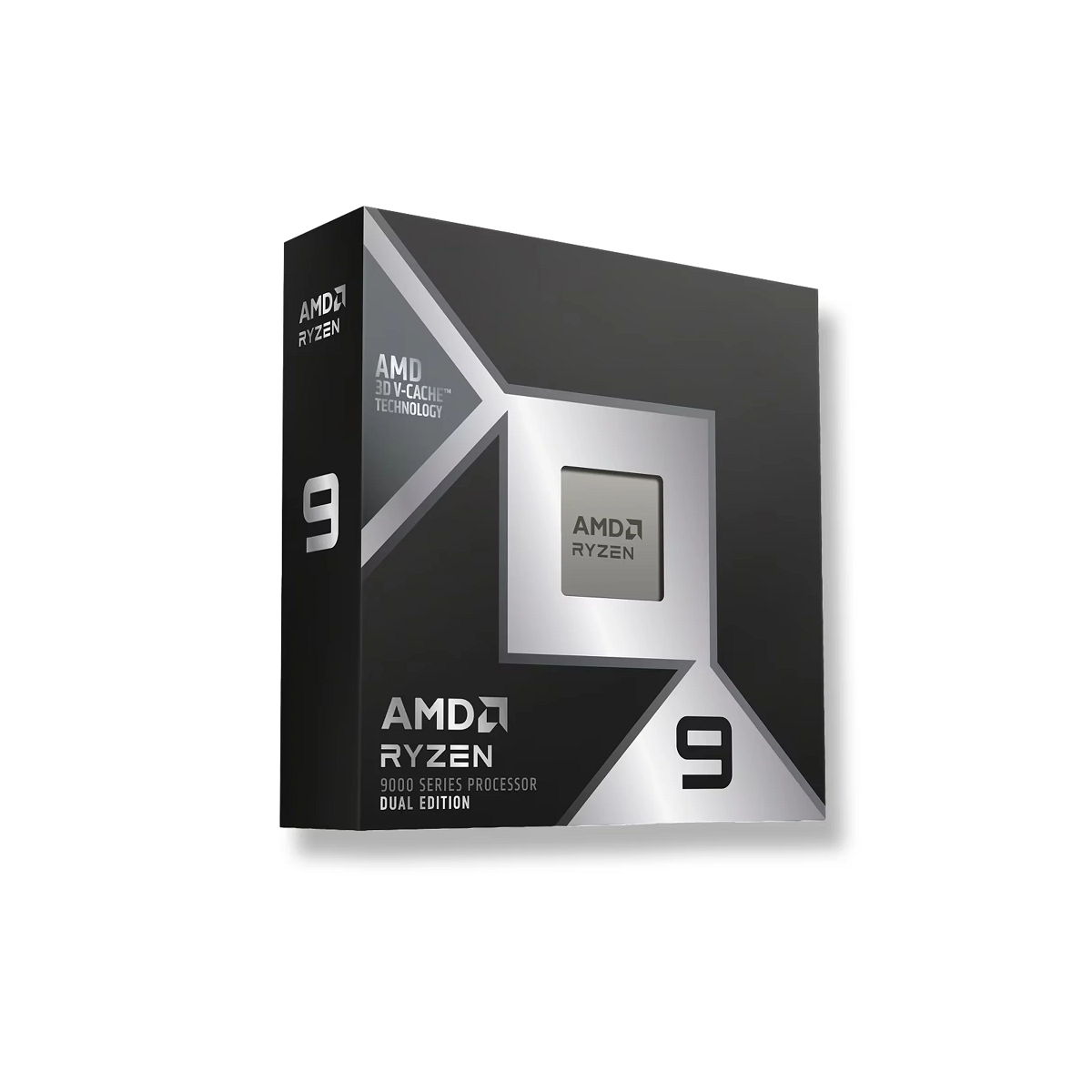

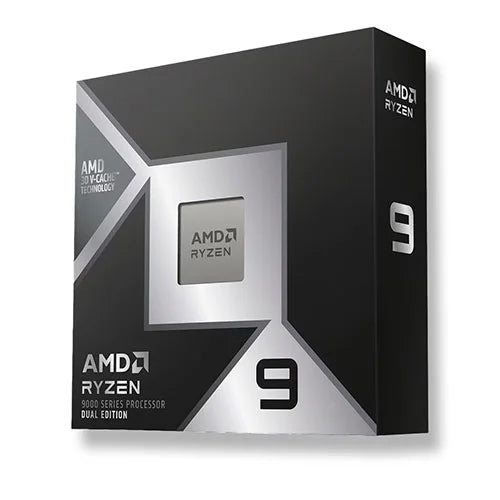

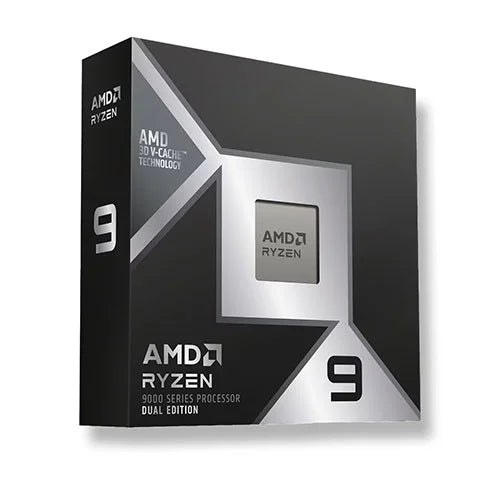

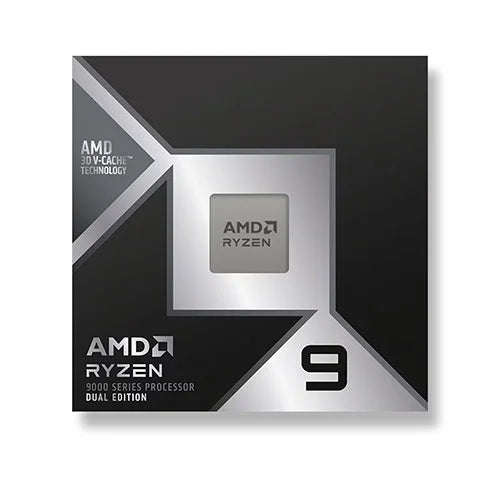

AMD Ryzen™ 9 9950X3D2 Dual Edition Desktop Processor

Name	AMD Ryzen™ 9 9950X3D2 Dual Edition
Family	Ryzen
Series	Ryzen 9000 Series
Form Factor	Desktops , Boxed Processor
Market Segment	Enthusiast Desktop
Regional Availability	Global
Former Codename	Granite Ridge AM5
Processor Architecture	Zen 5
# of CPU Cores	16
Multithreading (SMT)	Yes
# of Threads	32
Max. Boost Clock	Up to 5.6 GHz
Base Clock	4.3 GHz
L1 Cache	1280 KB
L2 Cache	16 MB
L3 Cache	192 MB
Default TDP	200W
Processor Technology for CPU Cores	TSMC 4nm FinFET
Processor Technology for I/O Die	TSMC 6nm FinFET
Package Die Count	3
Unlocked for Overclocking	Yes
AMD EXPO™ Memory Overclocking Technology	Yes
Precision Boost Overdrive	Yes
Curve Optimizer Voltage Offsets	Yes
AMD Ryzen™ Master Support	Yes
CPU Socket	AM5
Supporting Chipsets	A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology	Precision Boost 2
Instruction Set	x86-64
Supported Extensions	AES , AVX512 , AVX2 , AVX , FMA3 , MMX-plus , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64
Thermal Solution (PIB)	Not Included
Recommended Cooler	Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax)	95°C
*OS Support	Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Native USB 3.2 Gen 2 (10Gbps)	4
Native USB 2.0 (480Mbps)	1
PCI Express® Version	PCIe® 5.0
Native PCIe® Lanes (Total/Usable)	28 , 24
NVMe Support	Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type	DDR5
Memory Channels	2
Max. Memory	256 GB
System Memory Subtype	UDIMM
Max Memory Speed
2x1R	DDR5-5600
ECC Support	Yes (Requires mobo support)
Product ID Boxed	100-100001978WOF
Product ID Tray	100-000001978
