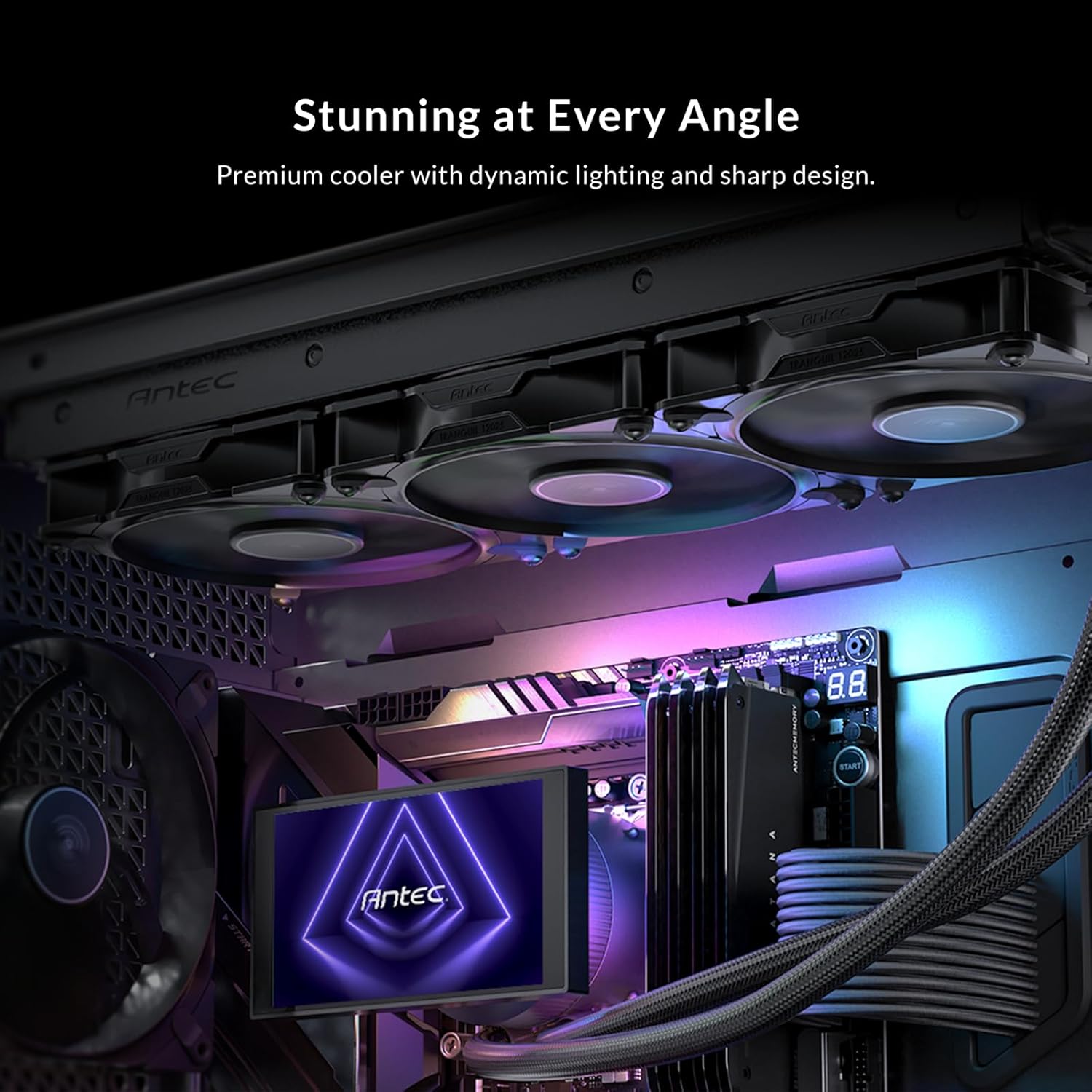

Stunning at Every Angle
Premium cooler with dynamic lighting and sharp design.

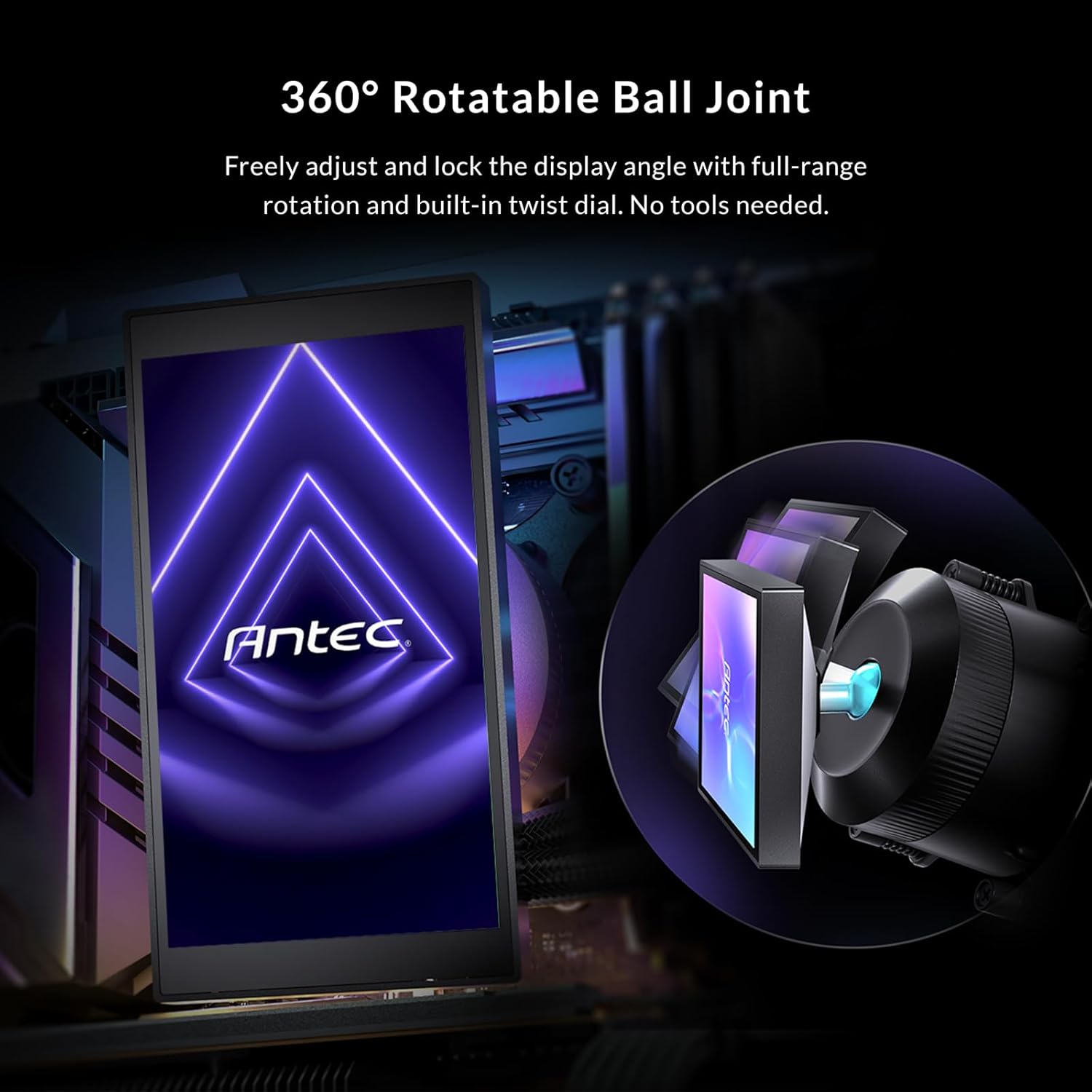

Freely adjust and lock the display angle with full-range rotation and built-in twist dial. No tools needed.
5" IPS Display
1280 x 720 resolution, 60Hz refresh, and 300 nits brightness. Perfect for showcasing system stats, animations, or media. Designed for crystal-clear visibility through case windows at any angle.
RGB Backglow System
An addressable RGB panel behind the display delivers customizable ambient lighting across the pump block and surrounding components. Sync via Antec iUnity or set custom lighting zones.
Quiet Pump Acoustics
Up to 30% quieter than previous-generation models, the Vortex View pump is engineered for low-resonance operation and delivers sub-14 dBA acoustics at 2800 RPM.

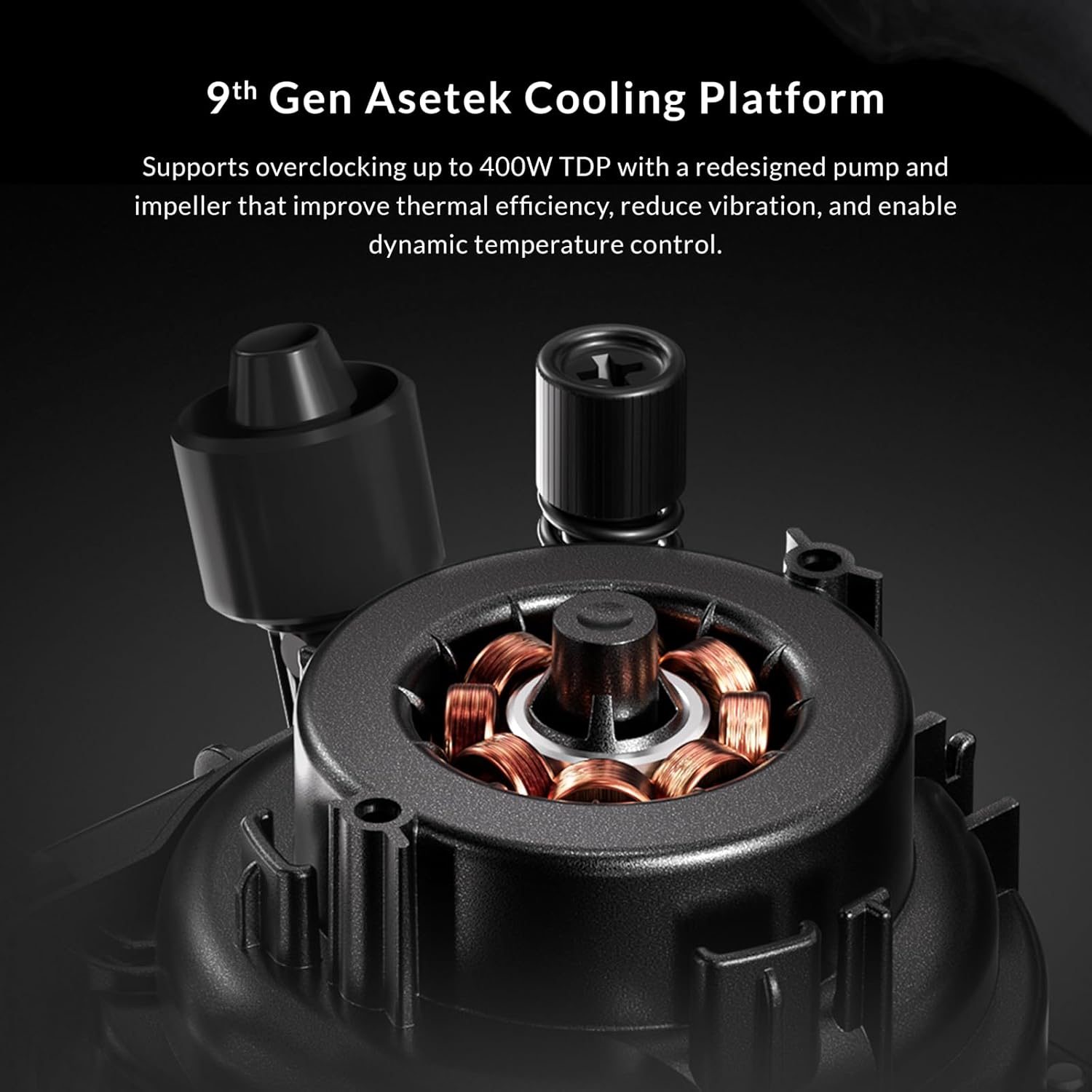

9th Gen Asetek Cooling Platform
Supports overclocking up to 400W TDP with a redesigned pump and impeller that improve thermal efficiency, reduce vibration, and enable dynamic temperature control.
Brand-New iUnity 2.0
Take full control of your system with iUnity 2.0-adjust fan and pump curves, customize per-zone RGB lighting on the Vortex View, and personalize what's shown on the panel.
| Dimensions |
120 x 120 x 25 mm |
| Type |
PWM Fan |
| Speed |
400±100~2000±150 RPM |
| Airflow |
59.23 CFM (max.) |
| Noise |
28.6 dB(A) |
| Air pressure |
2.46 mmH₂O (max.) |
| Lifespan |
50,000 hours / 25℃ |
| Connector |
4-pin PWM |
|
| Radiator |
| Dimensions |
394 x 120 x 27 mm |
| Material |
Aluminum |
|
| Head |
| Connector |
PUMP: 4-pin PWM |
| Lifespan |
50,000 hours |
| Noise |
≤27 dB(A) |
|
| Socket Compatibility |
Intel：LGA115X / 1200 / 1700 / 1851
AMD：AM4 / AM5 |
| Warranty |
6 Years |
| UPC# |
0-761345-40064-0 (Made in China)
0-761345-40068-8 (Made in Malaysia) |
| Net Weight |
1.79 Kg |
| Gross Weight |
2.81 Kg |
|
