APC Easy UPS 3000VA/2400W, 230V Online UPS (SRV3KL-IN)
APC Easy UPS 3000VA/2400W, 230V Online UPS (SRV3KL-IN)
Regular price
Rs. 54,999.00
Sale price
Rs. 54,999.00
Regular price
GST included.
Hurry up, only 1 item left in stock.
Features and Specifications
Features and Specifications
The APC Easy UPS Online SRV3KL-IN is a high-quality, double-conversion online UPS designed for essential power protection, even in the most unstable power conditions. This is the Indian model, with India 3-pin outlets and BIS certification.
Key Features
- Double-conversion online topology: 3000VA / 2400W of continuous sine wave output for critical equipment.
- Wide input voltage window: Operates from 160–280V at full load and 110–280V at half load.

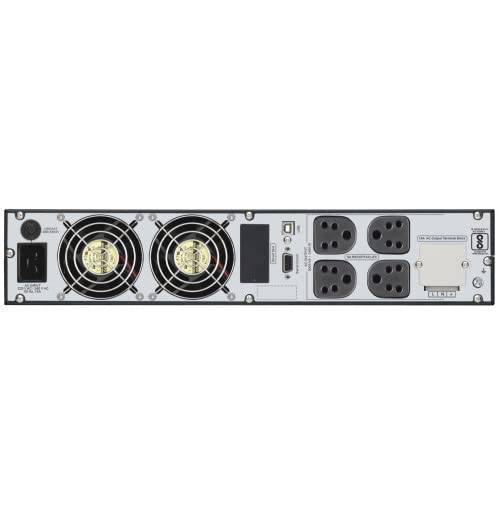

- Indian outlets plus hardwire: 4 × IS 1293 India 3-pin 6A sockets and a 3-wire hardwire output.
- Internal bypass: Automatic and manual bypass built in.
- Configurable output: Set the nominal output voltage to 220V, 230V or 240V.
- High efficiency: 90% efficiency at full load.

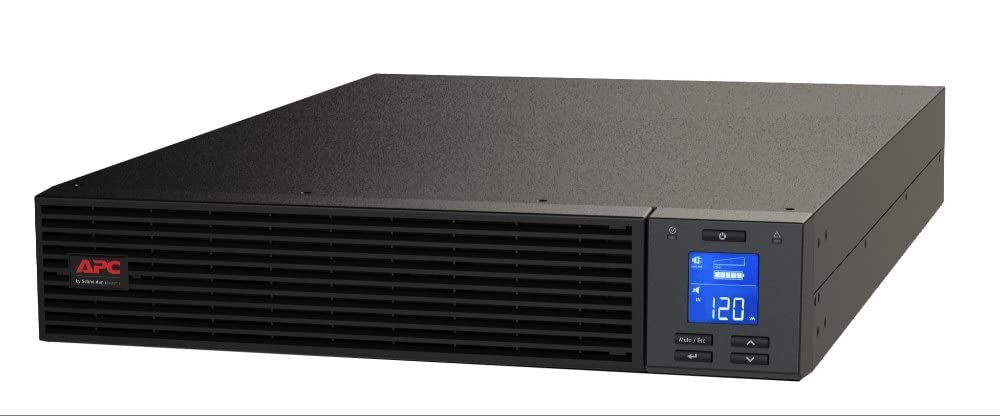

- Multi-function LCD console: Status and control display, with audible and visible alarms prioritised by severity.
- Connectivity: Serial port, USB port and an available expansion slot.
- 2U rackmount: Compact 2U chassis. The rack-mounting kit is sold separately.
Specifications
| Model | SRV3KL-IN |
| Product Name | APC Easy UPS Online 3000VA, Indian Outlet, Rackmount, 230V |
| Range | Easy UPS On-Line |
| UPS Topology | On-Line (double conversion) |
| Rated Power | 3000VA / 2400W |
| Waveform | Sine wave |
| Main Input Voltage | 230V AC, 1-phase |
| Other Input Voltage | 220V, 240V |
| Input Voltage Range | 160–280V (full load), 110–280V (half load) |
| Input Frequency | 40–70 Hz, auto sensing |
| Input Connection | IEC 60320 C20 |
| Input Protection | Circuit breaker |
| Switching Current Capacity | 20A |
| Output Voltage | 230V AC, 1-phase |
| Other Output Voltage | 220V, 240V (configurable) |
| Output Frequency | 50/60 Hz ±3 Hz, sync to mains |
| Output Connections | 4 × IS 1293 India 3-pin 6A; 1 × hardwire 3-wire (H, N + E) |
| Bypass | Internal bypass (automatic and manual) |
| Crest Factor | 3:1 |
| Harmonic Distortion | 3% |
| Efficiency | 90% (full load) |
| Surge Energy Rating | 600 J |
| Battery Type | Lead-acid, included |
| Battery Voltage | 72V |
| Included Battery Module | 1 |
| Battery Power | 372 VAh |
| Battery Charging Power | 60W rated |
| Typical Recharge Time | 4 hours |
| Max Runtime | 3 min |
| Replacement Battery | APCRBCV202 |
| Control Panel | Multi-function LCD status and control console |
| Alarms | Audible and visible, prioritised by severity |
| Connectivity | Serial port, USB port, available expansion slot |
| Rack Units | 2U |
| Mounting | Rack-mounted, horizontal (kit sold separately) |
| Cable Length | 1.5 m |
| Colour | Black (RAL 7010) |
| Dimensions (H × W × D) | 88 × 438 × 632 mm |
| Weight | 28 kg |
| Package Dimensions (H × W × L) | 22.8 × 79.4 × 57 cm |
| Package Weight | 32 kg |
| Acoustic Level | 50 dBA |
| Heat Dissipation | 910 BTU/h |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Relative Humidity | 0–95% non-condensing |
| Operating Altitude | 0–3000 m |
| IP Rating | IP20 |
| Certification | BIS |
| In the Box | Documentation CD, 1 × detachable IEC power cord, rack-mounting brackets, stabilisation / wall-mounting feet, USB cable, user manual |
| Manufacturer | Schneider Electric |
| Country of Origin | China |
| Warranty | 24 months |
