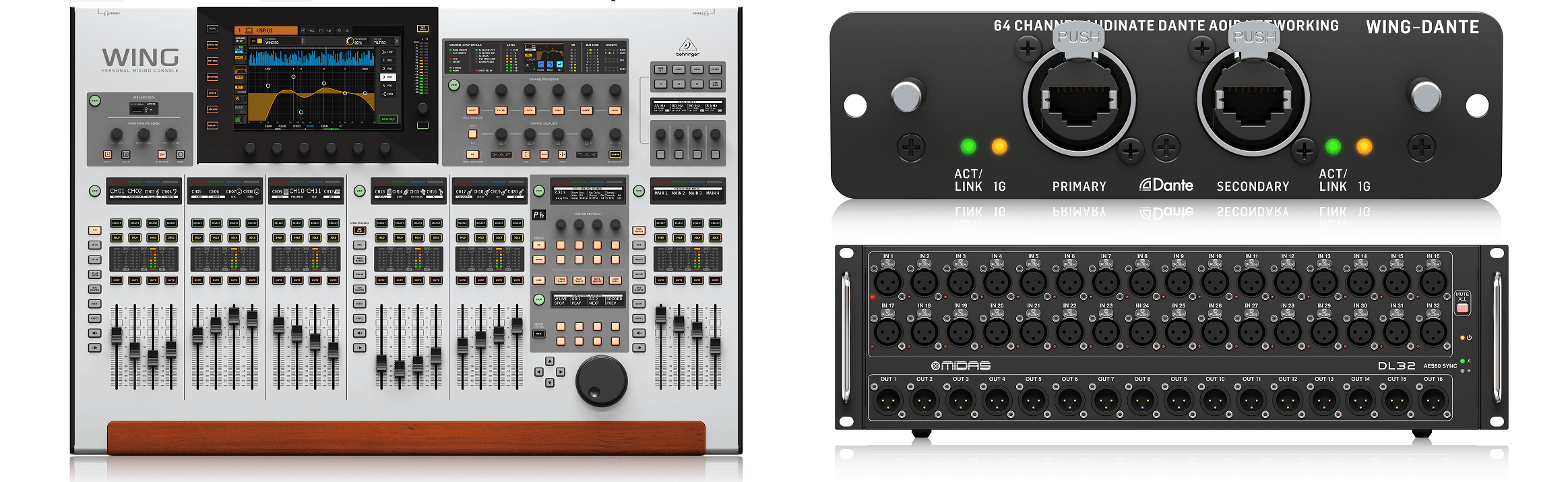

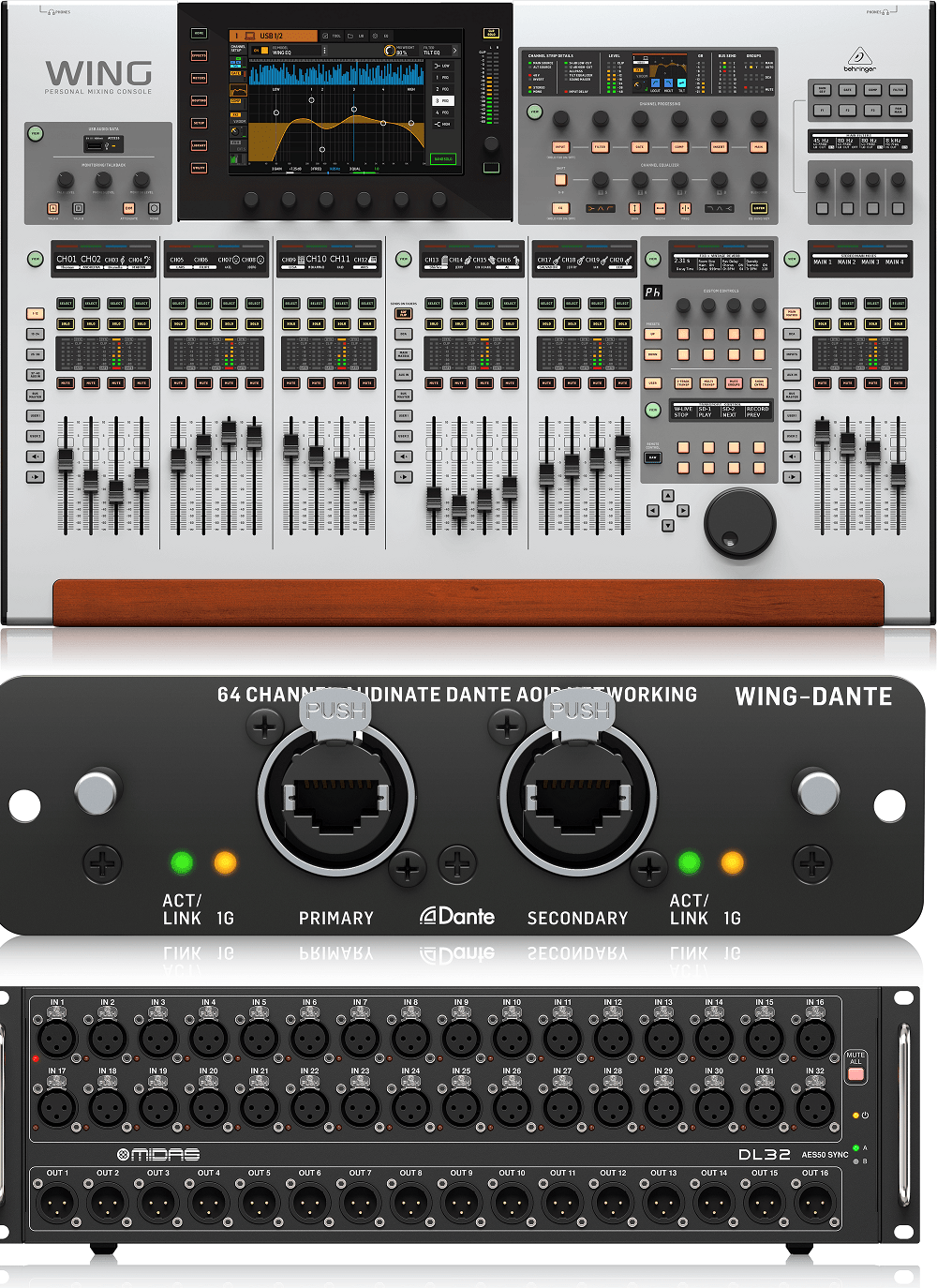

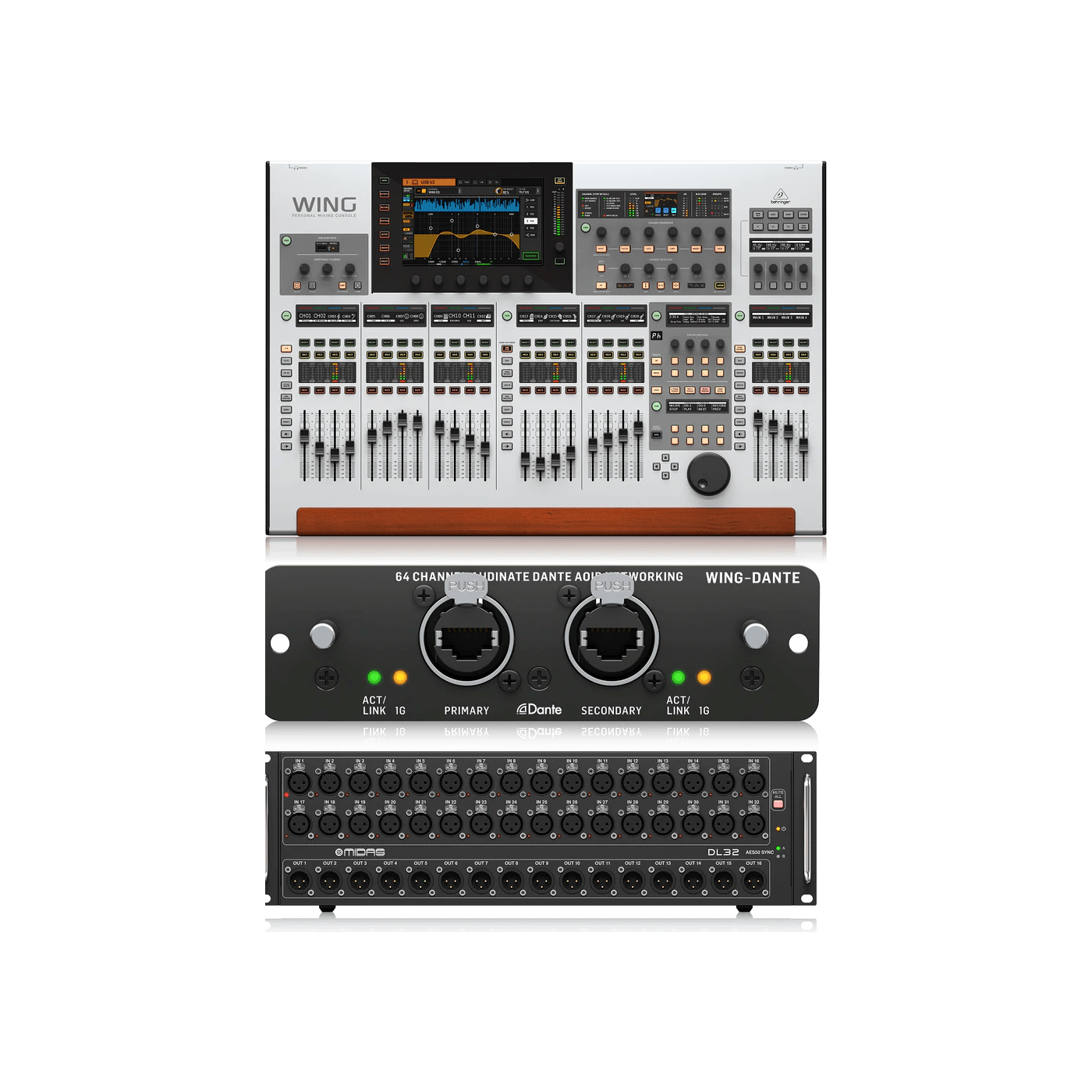

Behringer WING 48-channel Digital Mixer with Behringer Wing Dante with Midas DL 32 Stage Box Combo
WING 48 Stereo Channels, 28 Bus Full Stereo Digital Mixing Console with 8 Midas PRO Preamps, 8 Midas PRO Outputs, 10.1" Touch Screen and 24 Fader Control Surface WING-DANTE The 64-channel...
Claim your GST Invoice with this order
Guaranteed Safe Checkout
Dispatched usually within 24 hours.

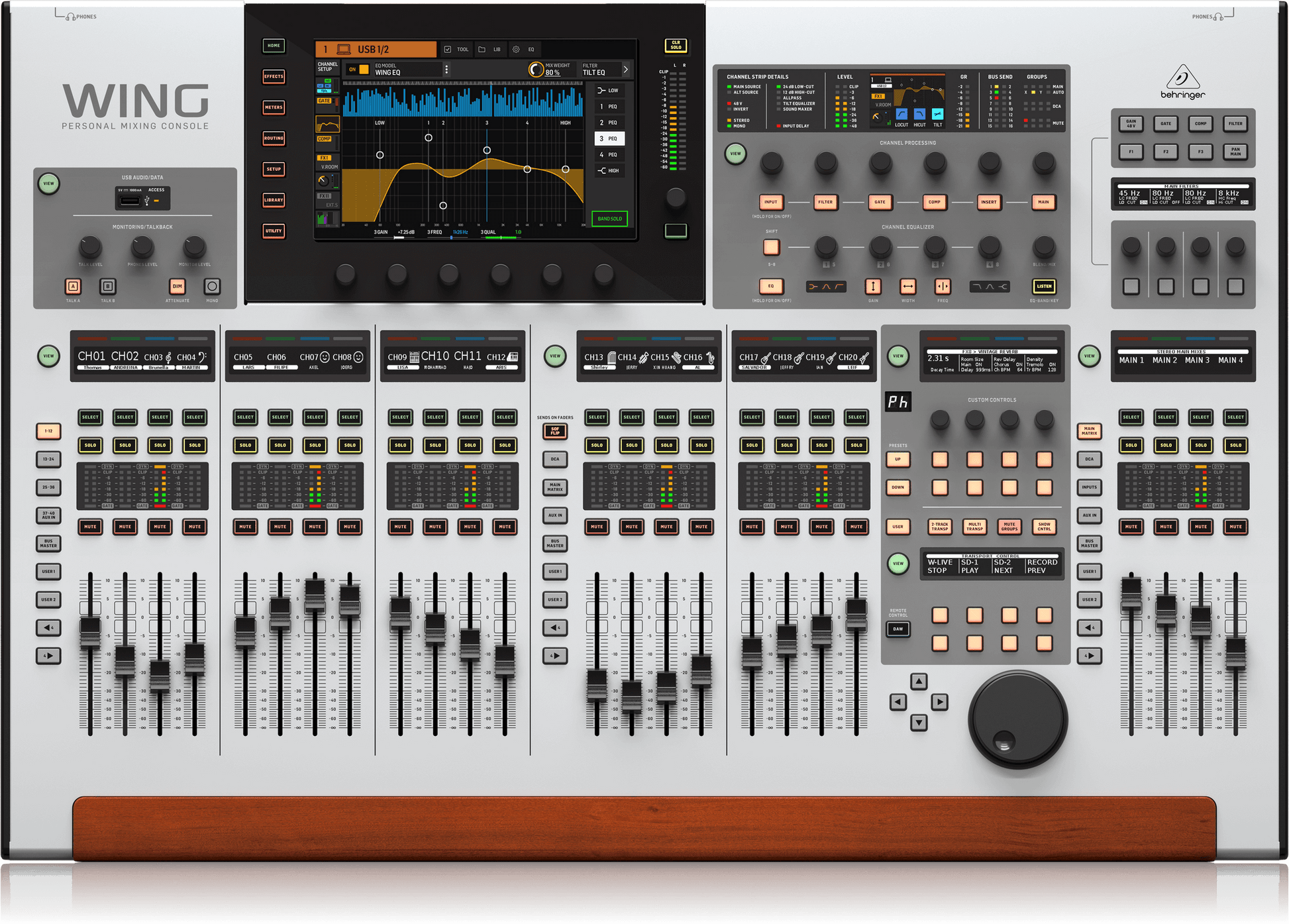

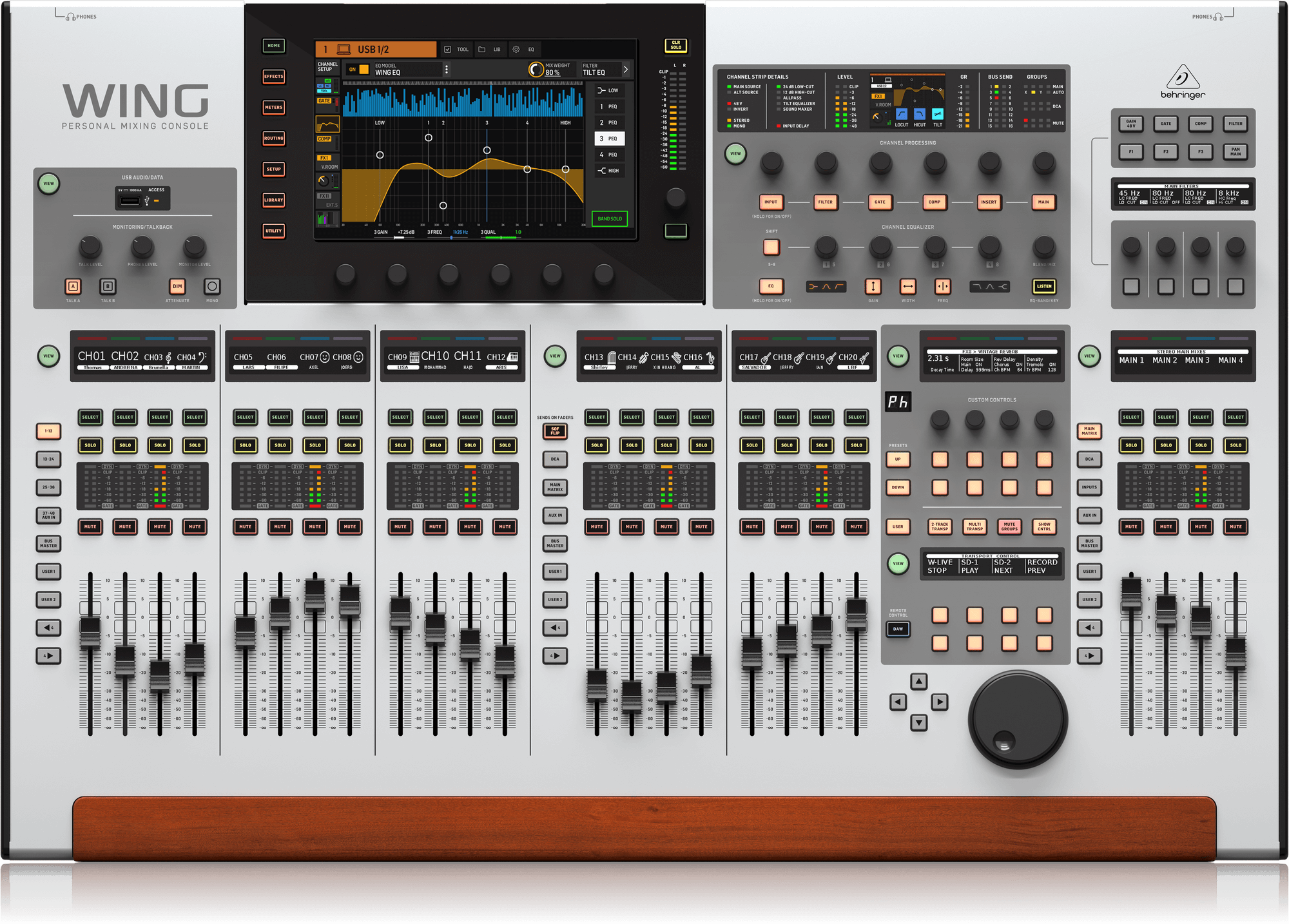

WING
48 Stereo Channels, 28 Bus Full Stereo Digital Mixing Console with 8 Midas PRO Preamps, 8 Midas PRO Outputs, 10.1" Touch Screen and 24 Fader Control Surface

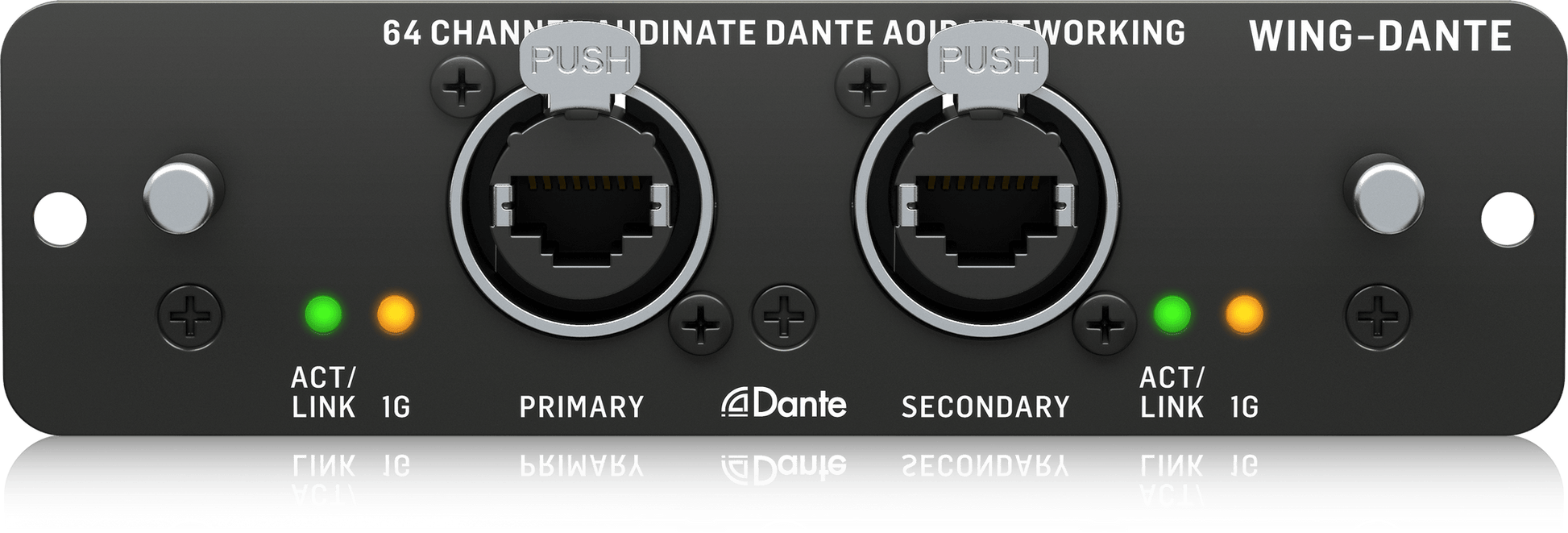

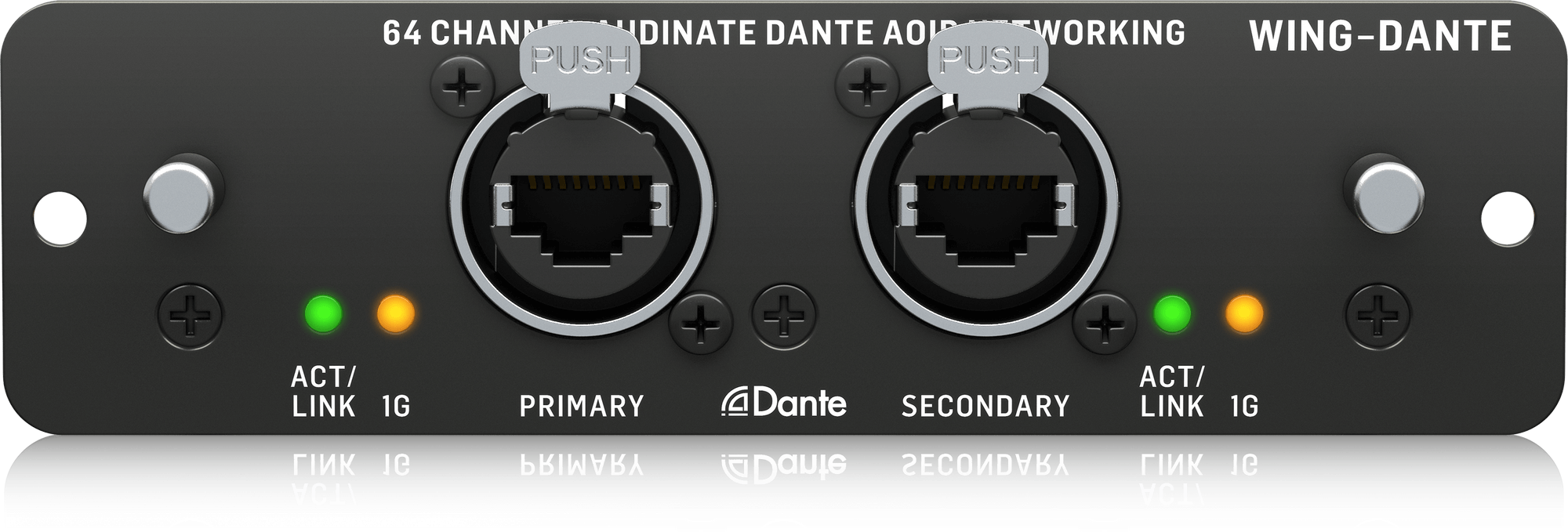

WING-DANTE
The 64-channel 48 kHz bi-directional audio interface brings even more I/O options to the WING by making it ready for integration with Dante enabled IP networks.

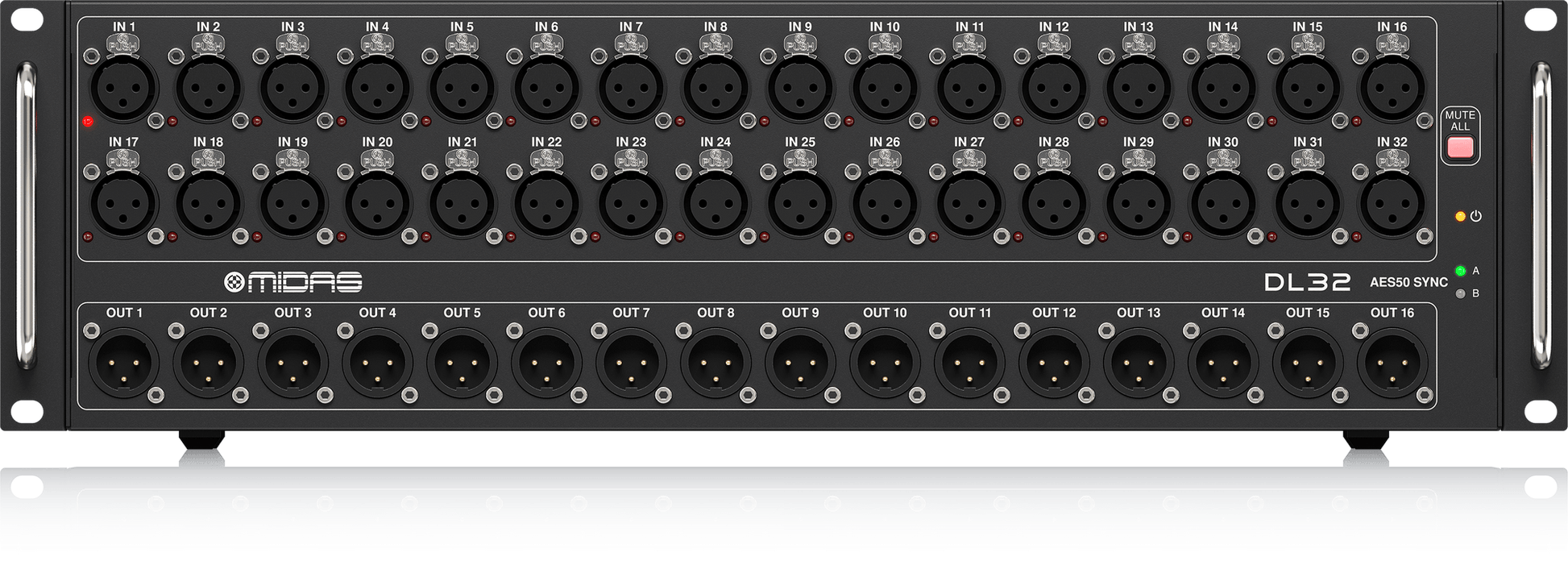

DL32
Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. The DL32 is the perfect solution for connecting the onstage talent with your Front of House (FOH) console, and the rest of the world – the I/O packed and highly affordable DL32 digital stage box.
TECHNICAL SPECIFICATIONS
WING
Input/Output Characteristics
Frequency response @ 48 kHz sample rate, 0 to -1 dB (any gain setting)
10 Hz - 20 kHz
Dynamic range, analog in to analog out (typical), XLR / aux
111 dB / 108 dB
A/D dynamic range, preamplifier and converter (typical), XLR / aux
112 dB / 110 dB
D/A dynamic range, converter and output (typical), XLR / aux
118 dB / 112 dB
Crosstalk rejection @ 1 kHz, adjacent channels
100 dB
Output level, XLR connectors (nominal / maximum)
+4 dBu / +21 dBu
Output impedance, XLR connectors (unbalanced / balanced)
75 Ω / 75 Ω
Input impedance, TRS connectors (unbalanced / balanced)
20 kΩ / 40 kΩ
WING-DANTE
64-channel 48 kHz, bi-directional audio interface for Dante IP networks
Low-latency 24-bit signal transmission with sample-accurate synchronization
Allows interfacing with standard 100 MBit/s or Gigabit network infrastructure with DSCP-based QoS
Mixed sample and bit rates can coexist on the same Dante network
WING remote control possible using the integrated Ethernet switch
Audinate Dante Controller application with full control over configuration and signal routing among all Dante-enabled devices
Dante Virtual Soundcard allows employing your PC or Mac for IP-based multitrack recording and playback of up to 64 channels (license optionally available at www.audinate.com)
Secondary connection can be configured for seamless redundant audio networking
Midas DL32
32 award-winning Midas PRO microphone preamplifiers with switchable 48 V phantom power
16 electronically balanced low impedance line level outputs
ULTRANET personal monitoring system connectivity for in-ear applications
Dual ADAT outputs for use in splitter mode and stand-alone digital multicore applications
Two AES-3 ports (AES/EBU),e.g. for directly connecting PA system controllers with digital inputs
Remote operation up to 100 m via CAT5/5e cable
MIDI In/Out for bidirectional communication between FOH console and on-stage MIDI devices
Features Neutrik etherCON AES50 and ULTRANET network ports
Rugged 3U rackmount chassis for durability in portable applications
Auto-ranging universal switch-mode power supply
Mute-All-Inputs function for quietly patching any inputs on stage
