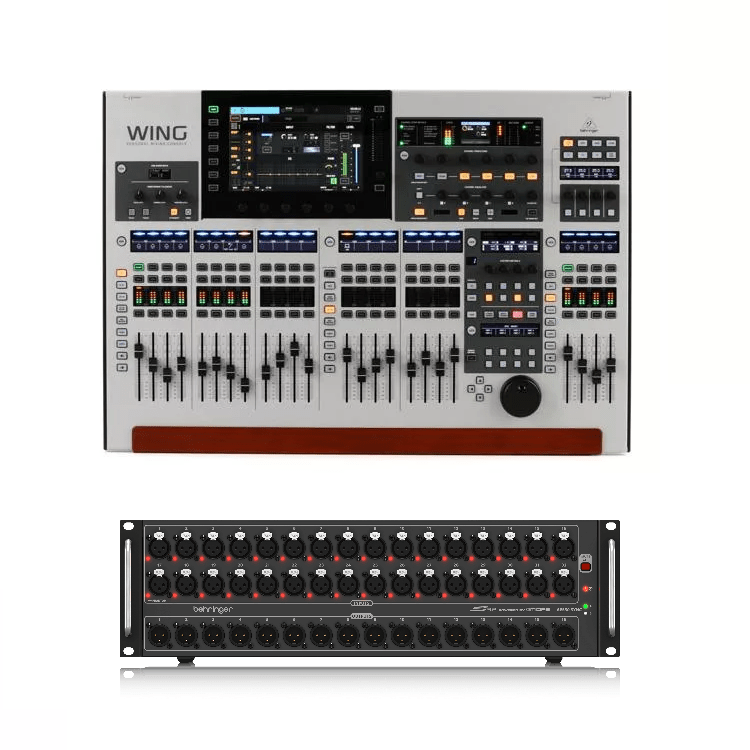

Behringer WING Digital Mixer and S32 Stage Box Bundle
Enjoy World-Class Effects WING is equipped with over 80 unique effects and emulations inspired by renowned hardware like the Pultec EQ, SSL Bus Compressor, Gate/Expander, SPL Transient Designer, Neve EQ, Compressor,...
Claim your GST Invoice with this order
Guaranteed Safe Checkout
Dispatched usually within 24 hours.
Enjoy World-Class Effects
WING is equipped with over 80 unique effects and emulations inspired by renowned hardware like the Pultec EQ, SSL Bus Compressor, Gate/Expander, SPL Transient Designer, Neve EQ, Compressor, Gate, Focusrite ISA and D3, DBX160, LA-2A, 1176, Elysia mPressor, and Empirical Labs Distressor*. No external gear is required. WING boasts double the effect engines and insert points compared to the X32 and utilizes 40-bit internal processing algorithms, providing greater accuracy and an expanded dynamic range.
S32
Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. The ultra-affordable S32 digital stage box bridges the gap between the onstage talent, Front of House (FOH) console and the rest of the world with its ultra-fast and rock-solid performance!
TECHNICAL SPECIFICATIONS

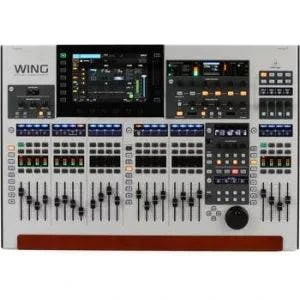

Behringer WING Digital Mixer
Input/Output Characteristics
Frequency response @ 48 kHz sample rate, 0 to -1 dB (any gain setting)
10 Hz - 20 kHz
Dynamic range, analog in to analog out (typical), XLR / aux
111 dB / 108 dB
A/D dynamic range, preamplifier and converter (typical), XLR / aux
112 dB / 110 dB
D/A dynamic range, converter and output (typical), XLR / aux
118 dB / 112 dB
Crosstalk rejection @ 1 kHz, adjacent channels
100 dB
Output level, XLR connectors (nominal / maximum)
+4 dBu / +21 dBu
Output impedance, XLR connectors (unbalanced / balanced)
75 Ω / 75 Ω
Input impedance, TRS connectors (unbalanced / balanced)
20 kΩ / 40 kΩ
Non-clip maximum input level, TRS connectors
+16 dBu

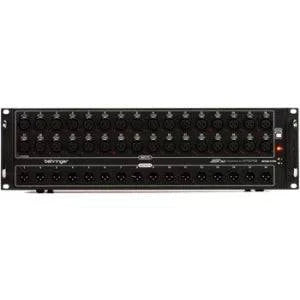

S32 Stage Box
32 Midas-designed, fully programmable mic preamps for audiophile sound quality
16 analog, servo-balanced XLR outputs
AES50 network ports featuring Klark Teknik's SuperMAC networking capability for ultra-low jitter and latency
ULTRANET Connectivity for Behringer's P16 personal monitoring system for in-ear applications
Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability
Automatic AES50 stage-split mode when connected between Behringer X32 Series FOH and monitor consoles
Dual AES50 ports for cascading additional S16, SD16 or SD8 stage boxes-no merger or router required
2 AES-3 ports (AES/EBU), for directly connecting PA system controllers with digital inputs
Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK connectors
Mute All function for quietly patching any inputs on stage
MIDI In/Out for bi-directional communication between Behringer X32 Series console and on-stage MIDI devices
Remote operation via shielded CAT5e cable up to 330 ft / 100 m length
USB connector for system updates via PC
"Planet Earth" switching power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
"Built like a tank" yet compact, all-steel 3U rack-mount chassis
