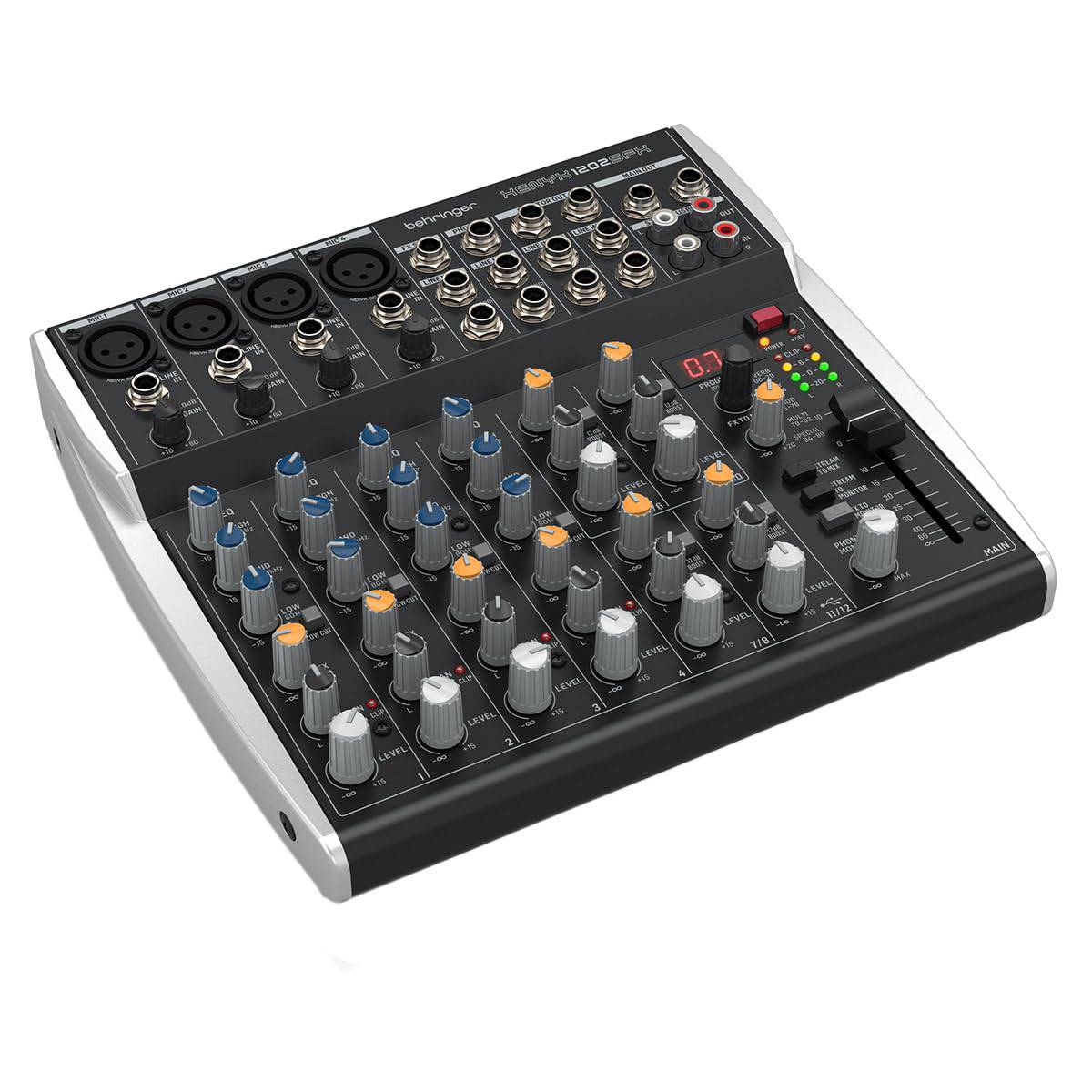

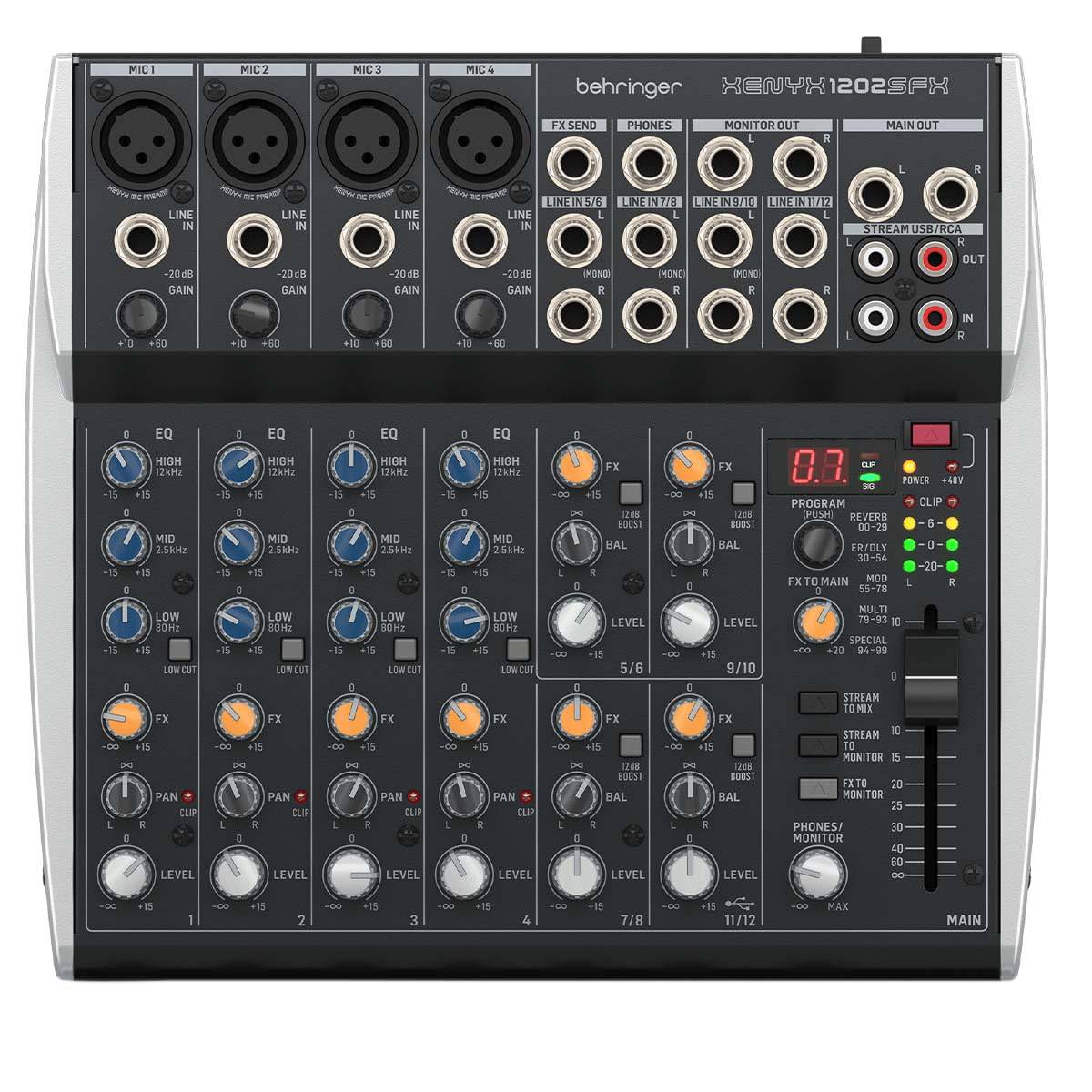

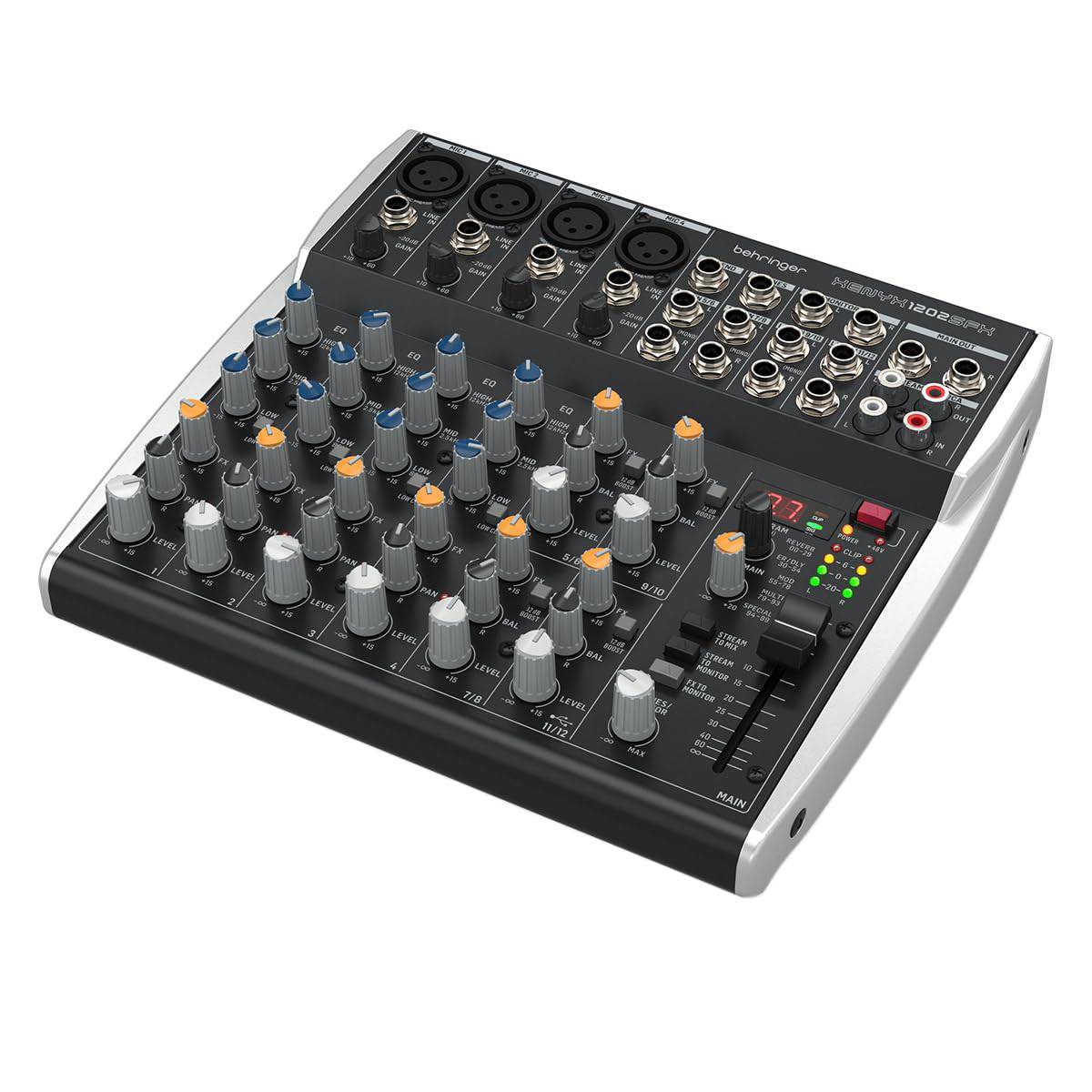

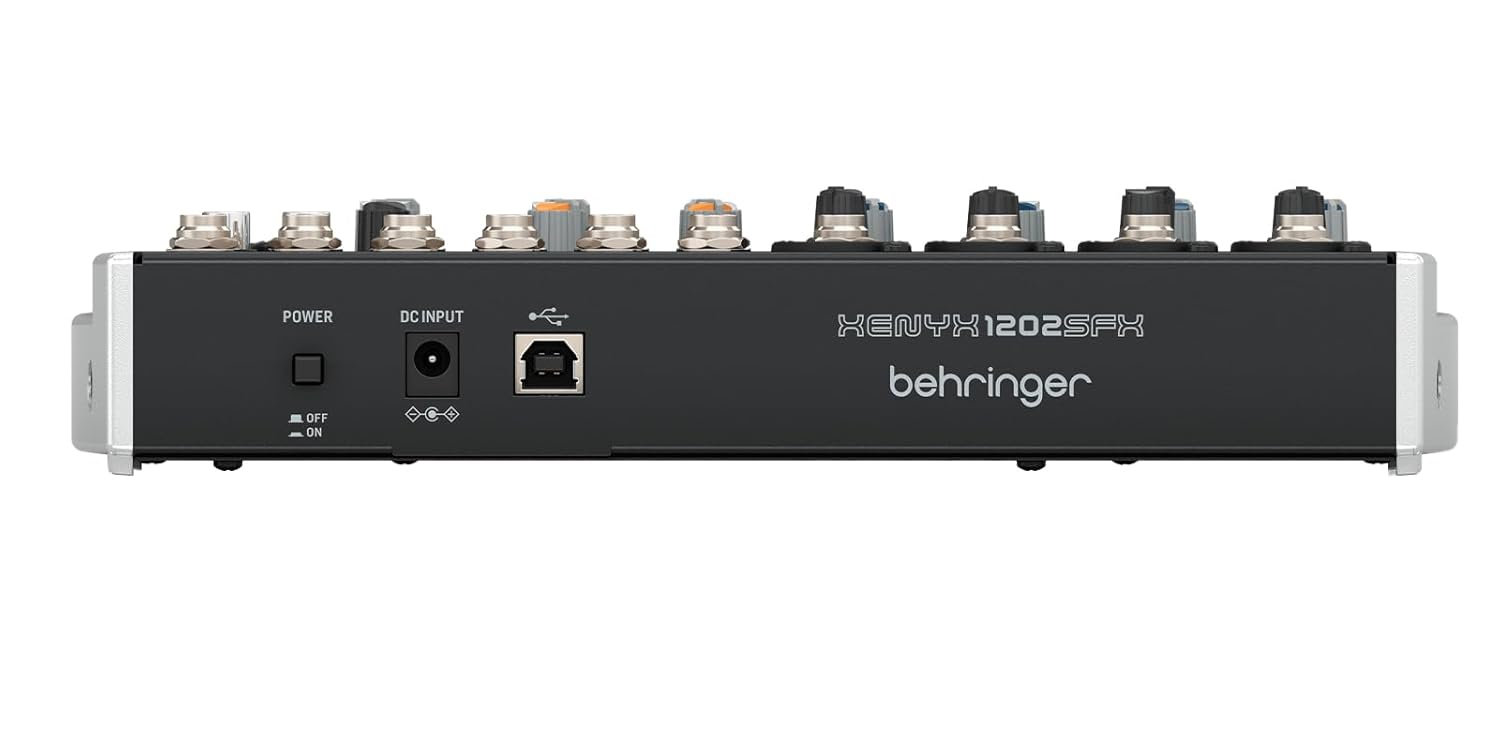

Behringer Xenyx 1202SFX Premium Analog 12-Input Mixer with USB Streaming Interface and Klark Teknik Effects
Guaranteed Safe Checkout
Product Features
-
Ultra-low noise analog mixer for streaming, podcasting and recording
-
4 Award winning XENYX microphone preamps for warm and musical sound
-
Stereo USB audio interface to connect to your computer or mobile device
-
Klark Teknik FX processor with 100 great sounding presets
-
Direct mixing of PC / gaming sounds into the streaming output
-
Analog mixing and equalization for pure sound
-
Versatile sub mixer for network enabled audio devices
-
Stereo channel 11/12 automatically switches between TRS input and USB playback
-
3-band EQs for warm and musical sound
-
FX send control per channel for internal or external FX processor
-
High-quality monitoring, phones and streaming outputs
-
Stereo RCA inputs assignable to main mix or monitor/phones outputs
Specification
Mono Inputs
| Microphone Input |
Balanced XLR, discrete input circuit Mic EIN (22 Hz-22 kHz) @ 50 Ω: 132 dB, A-weighted Frequency response Gain +10 dB: 10 Hz to 150 kHz Frequency response Gain +60 dB: 20 Hz to 70 kHz Gain range: +10 dB to +60 dB Max input level @ +10 dB Gain: +12 dBu Input Impedance 2 kΩ balanced Distortion (THD + N) 1 kHz |
| Mono Line Inputs |
1/4" TRS connector balanced Impedance: 22 kΩ Balanced, 10 kΩ unbalanced Gain range: -10 dB to +40 dB Max input level @ 0 dB Gain: +21 dBu |
Stereo Inputs
| Stereo Line |
1/4" TRS connector balanced Frequency response: 20 Hz to 200 kHz Impedance: 22 kΩ Balanced, 10 kΩ unbalanced Max input level @ 0 dB Gain: +21 dBu |
| STREAM Inputs (Analog) |
RCA connector unbalanced Impedance: 10 kΩ unbalanced Max input level: 10 dBu |
EQUALIZER
| Low |
80 Hz/±15 dB |
| Mid |
2.5 kHz/±15 dB |
| High |
12 kHz/±15 dB |
Main, Monitor & FX Send Outputs
| Type |
1/4" TRS connector impedance-balanced |
| Impedance |
120 Ω |
| Max output level |
21 dBu |
Phones Out
| Type |
1/4" TRS connector unbalanced |
| Impedance |
23 Ω |
| Max output level |
19 dBu/150 Ω |
STREAM out (Analog)
| Type |
RCA connector unbalanced |
| Impedance |
1 kΩ unbalanced |
| Max output level 10 |
10 dBu |
Main Mix noise
| Main Mix @ -∞ |
-108 dBu A-weighted |
| Channel @ -∞ |
-108 dBu A-weighted |
FX Section
| Type |
Klark Teknik |
| Converter |
24-bit Sigma Delta |
| Sample Rate |
40 kHz |
USB
| Type |
Type-B connector |
| USB Audio Data |
48 kHz 16 Bit |
| UAC2 Class Compliant |
stereo in/out |
