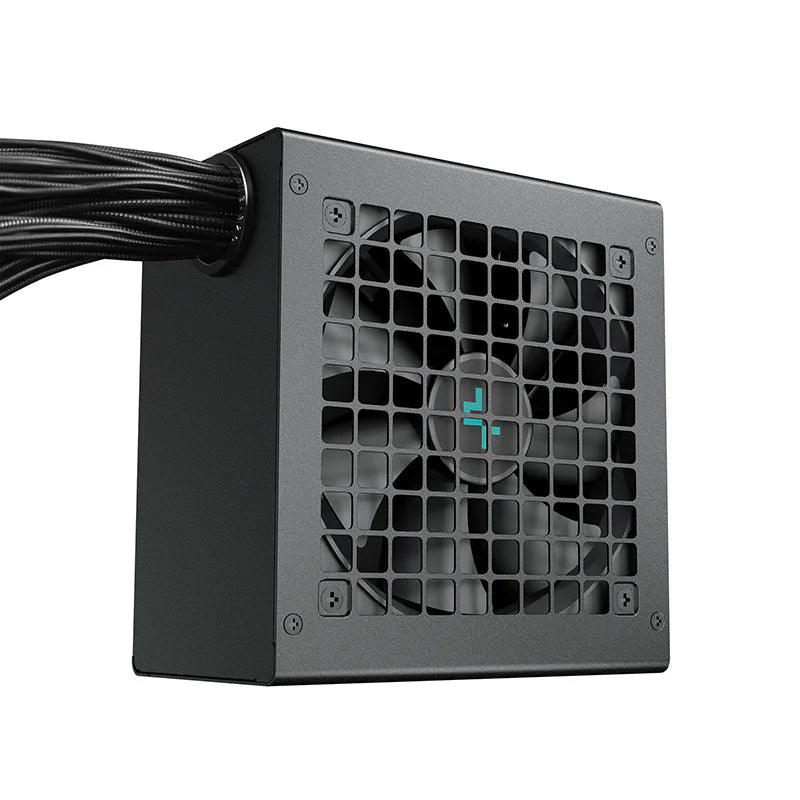

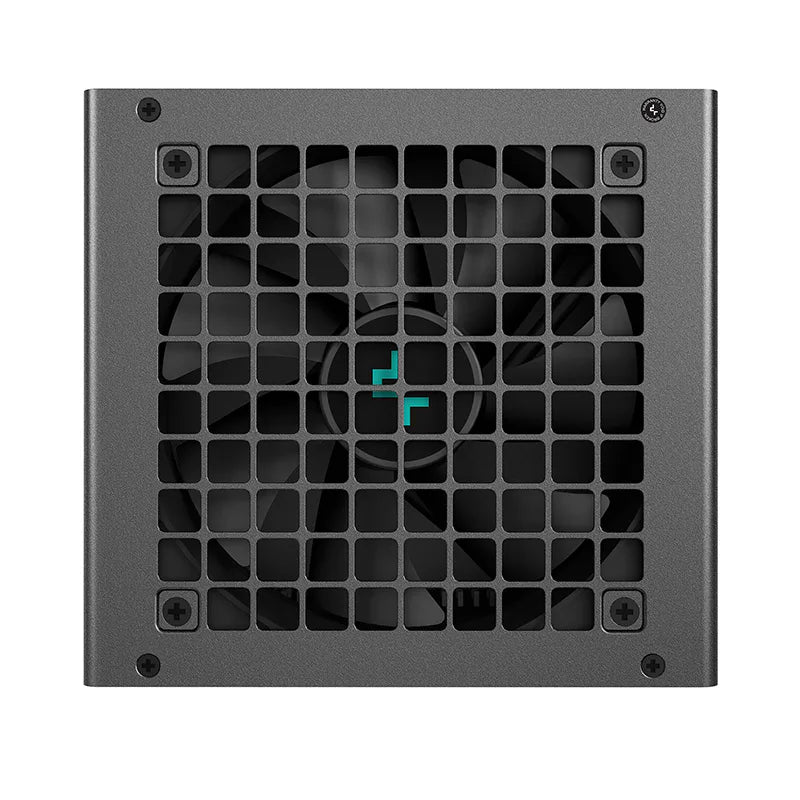

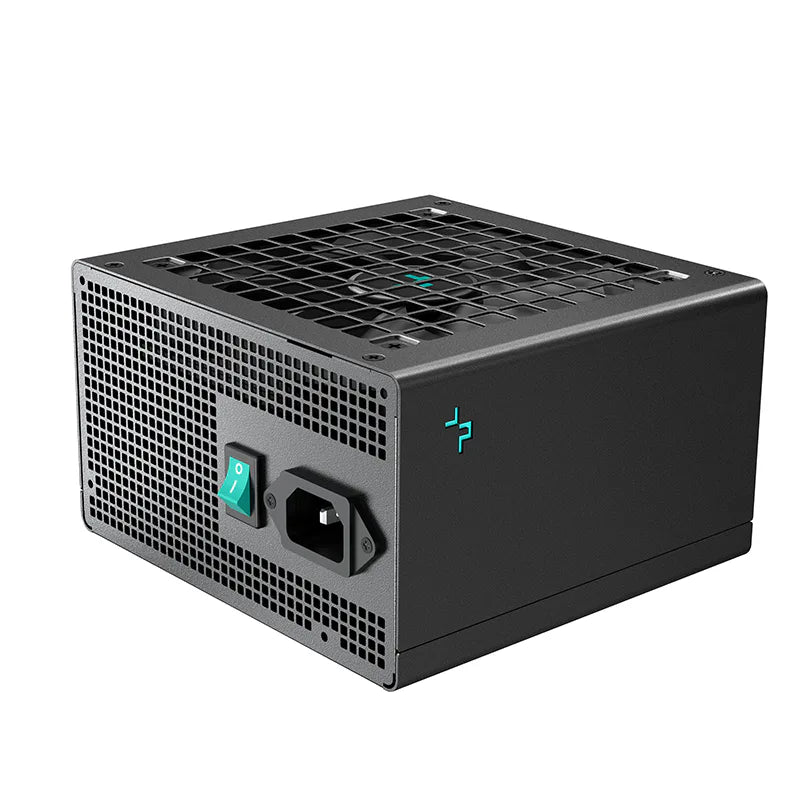

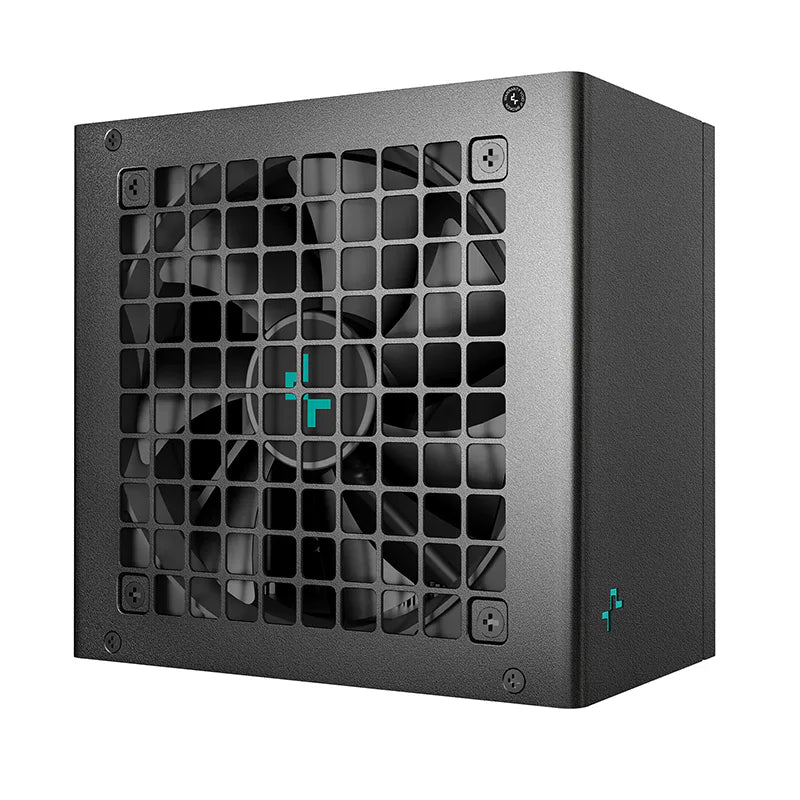

DeepCool PN650D V2 650W 80 Plus Gold ATX 3.1 Non-Modular Power Supply
DeepCool PN650D V2 650W 80 Plus Gold ATX 3.1 Non-Modular Power Supply
Regular price
Rs. 0.00
Sale price
Rs. 0.00
Regular price
GST included.
Out of stock
Features and Specifications
Features and Specifications
The DeepCool PN650D V2 is a 650W non-modular power supply built to the latest Intel ATX 3.1 and PCIe 5.1 standards, with a dedicated 12V-2x6 connector, 2 EPS, and 3 PCIe connectors delivering stable power for modern high-power components. 80 Plus Gold certified with fully sleeved cables and a 10-year warranty
KEY FEATURES
- ATX 3.1 & PCIe 5.1 compliant — ready for current-gen GPUs and platforms
- Native 12V-2x6 connector — 105°C-rated 16AWG copper-core sleeved cable delivering up to 450W for modern GPUs
- 80 Plus Gold certified — ≥90% efficiency at typical load, also rated Gold by Cybenetics
- Premium internals — active PFC, full-bridge SRC LLC, DC-to-DC topology with ≥16ms hold-up time at 80% load
- Sleeved cables out of the box — clean premium look without extensions
- 120mm dynamic hydro bearing fan — adjusts speed based on the PSU's cooling needs
- 8 protection circuits — OPP, OVP, SCP, OTP, OCP, UVP, NLO, SIP
- High-altitude rated — operates at up to 5,000m above sea level
- 10-year limited warranty
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Model | PN650D V2 |
| Wattage | 650W |
| Form Factor / Standard | ATX12V V3.1, PCIe 5.1 |
| Modularity | Non-modular |
| Efficiency | 80 Plus Gold (≥90% @ 50% load), Cybenetics Gold |
| Dimensions | 150 × 140 × 86 mm (W × L × H) |
| Fan | 120mm, Hydro Bearing (HYB), dynamic speed |
| Topology | Active PFC + Full Bridge SRC LLC + DC-to-DC |
| Hold Up Time | ≥16ms @ 80% load |
| Power Good Signal | 100–150ms |
| Protections | OPP / OVP / SCP / OTP / OCP / UVP / SIP / NLO |
| Operating Temperature | 0–40°C |
| MTBF | 100,000 hours |
| Regulatory | CE / FCC / CCC / TUV-RH / cTUVus / RCM / EAC |
| Warranty | 10 years (mining use excluded) |
Connectors:
| Connector | Qty |
|---|---|
| 24-pin (20+4) Main | 1 |
| CPU EPS (4+4) | 2 |
| 12V-2x6 (16-pin) | 1 |
| PCIe (6+2) | 3 |
| SATA | 6 |
| 4-pin Molex | 2 |
