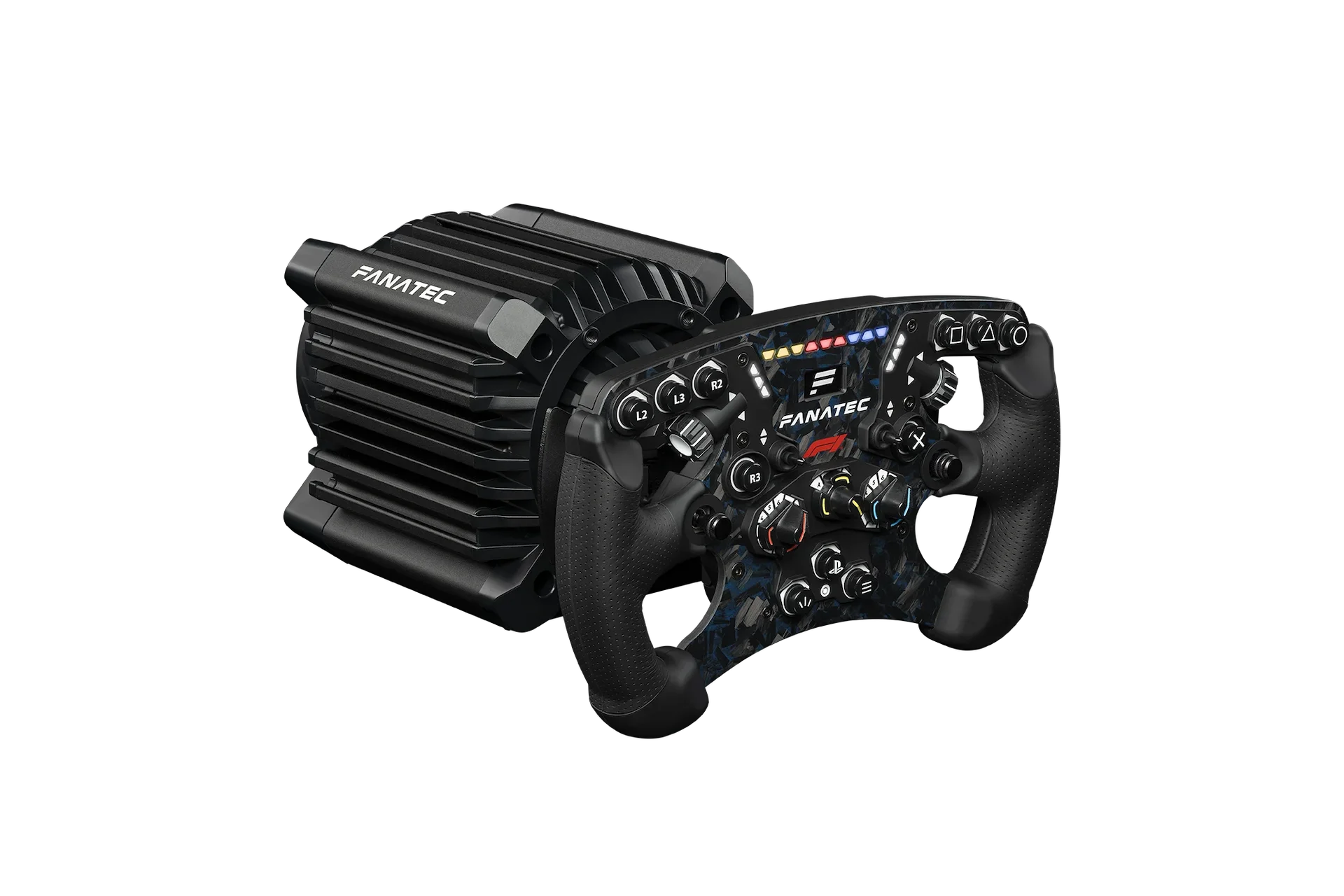

Fanatec ClubSport Racing Wheel F1® (15 Nm)

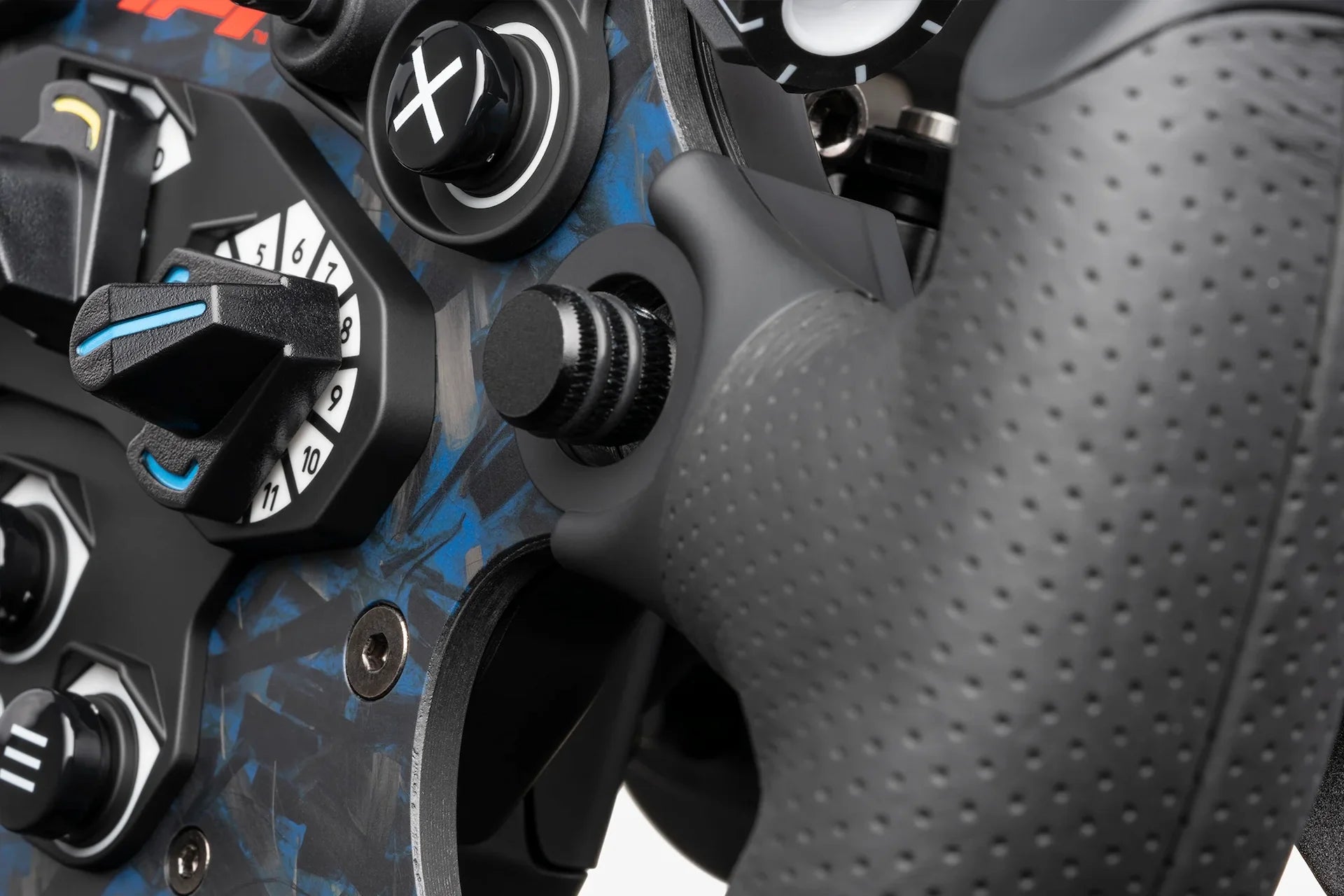

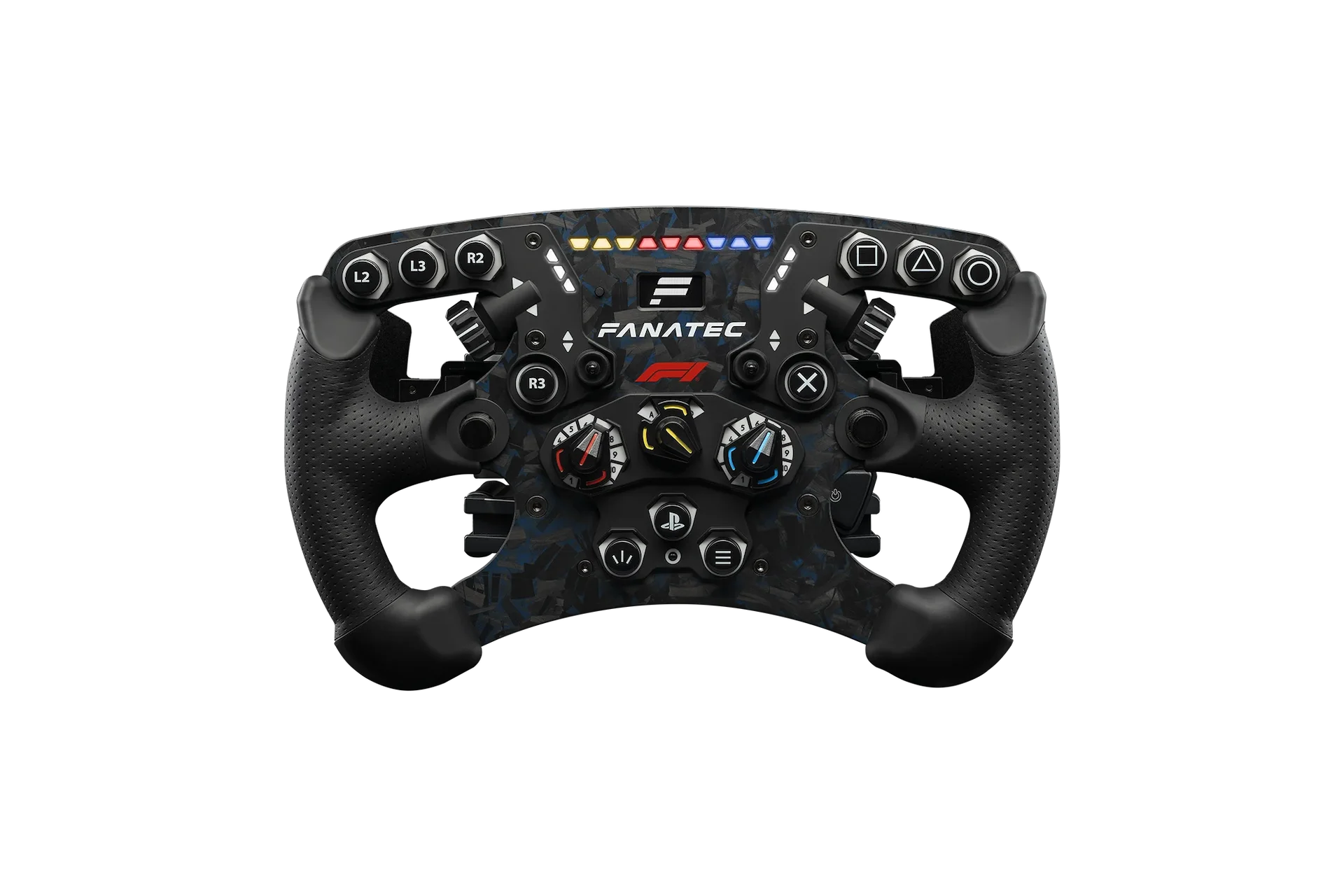

ClubSport Steering Wheel F1® PS5:

• Officially licensed by Formula 1®

• Officially licensed for PlayStation®5 (compatibility is achieved via the Wheel Base)

• Unique to ClubSport Racing Wheel F1® package, not sold separately

• F1®-style steering wheel with a compact 270 mm diameter for fast movements and reactions

• Strong, 5 mm-thick blue carbon fibre front plate; unique finish to each wheel

• Genuine leather grips (perforated for breathability)

• ClubSport Magnetic Paddle Module preinstalled

  • 3 mm-thick, black anodised aluminium paddle plates

  • Paddle module cage made of diecast and CNC machined aluminium

  • Neodymium magnets

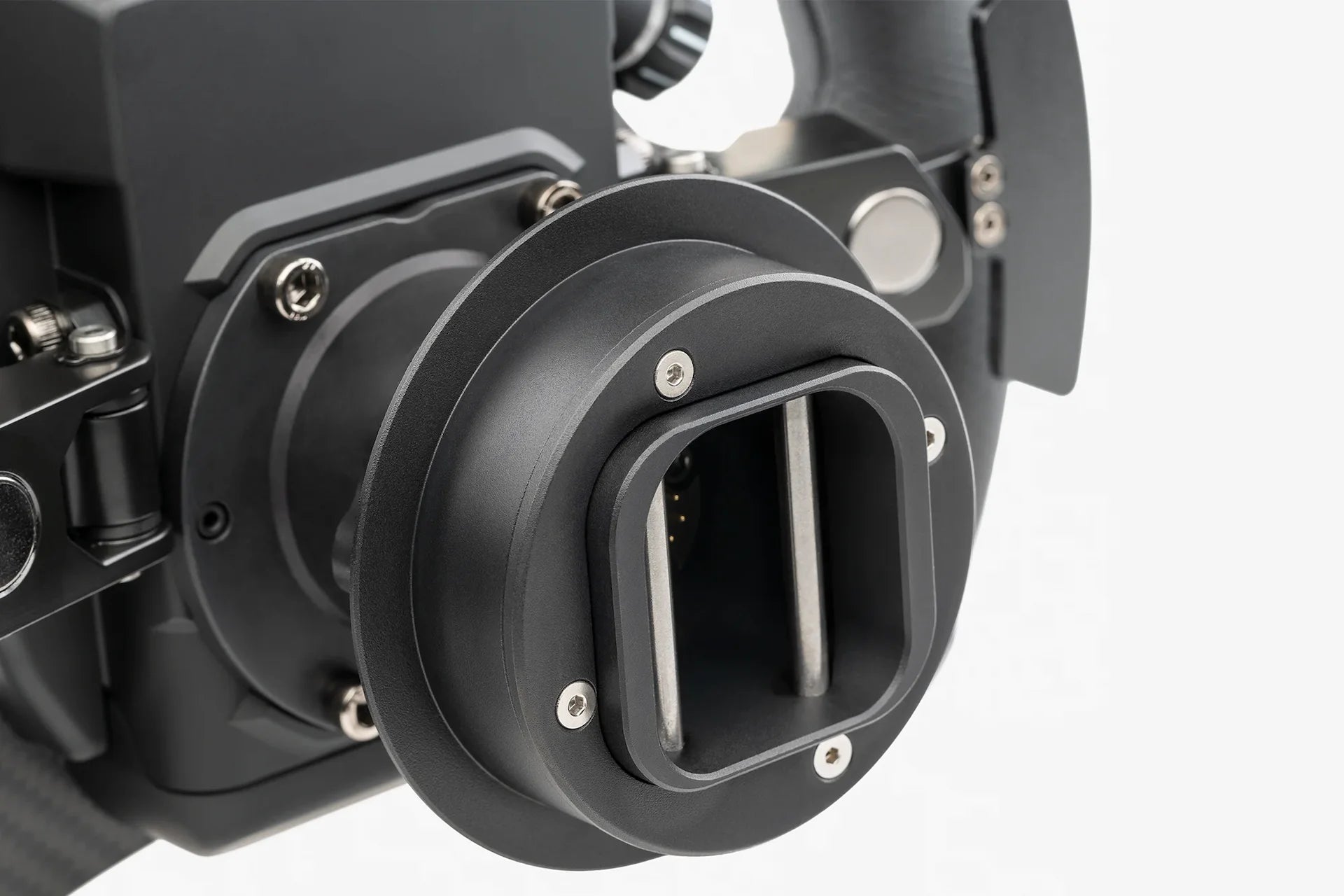

• QR2 Wheel-Side preinstalled

  • Diecast aluminium with CNC-machined and black anodised finish

  • Precision fit means you feel all the detail of FullForce technology

• 11 buttons plus four paddles with ultra-reliable switches

• Two 2-way toggle switches

• Two 12-way multi-position switches with encoder functionality

• 7-way FunkySwitch™: left, right, up, and down directional inputs, push button, and rotary encoder functionality

• Analogue joystick

• Two thumb encoders easily reachable while driving without releasing the grips

• RevLEDs with nine multi-colour LEDs to show motor RPM and optimal shifting point as games program through the Fanatec SDK

• Two FlagLEDs with three multi-colour LEDs each to indicate tyre slip, flag warnings, pit limiter, and more, as games program through the Fanatec SDK

• 1" 128x64 white OLED display to show telemetry data like speed or gear as games program through the Fanatec SDK

• Tuning functions with OLED display to adjust settings independent from the game and during gameplay

ClubSport DD+ Wheel Base:

• Officially licensed for PlayStation®5 consoles and PlayStation®4 consoles

• Direct Drive servo motor

  • Custom-designed in Germany for the ClubSport DD+ specifically for sim racing

  • 18 Nm holding torque

  • Optimised skew angle on rotor magnets reduces cogging torque

  • Patented, exclusive FluxBarrier technology improves motor efficiency and smoothness

• FullForce technology

  • New force feedback protocol developed for Fanatec Direct Drive

  • Super low-latency detail effects through fine motor frequency control

• Passively cooled Wheel Base

  • Most thermally stable Wheel Base in its class

  • Consistent performance under the most extreme conditions

• QR2

  • Wheel Base optimised for QR2 from the ground-up

  • Electronics module integrated with shaft

  • Diecast aluminium with CNC-machined finish

  • Motorsport-derived quick release system

  • QR1 downgrade possible (sold separately, coming soon)

• Standard Tuning Menu allows beginners to get started quickly without having to worry about settings

• Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences

• High-resolution (contactless) Hall-position-sensor

• Rotation: 2520 degrees (electronically limited, adjustable)

• Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data between Steering Wheel and Wheel Base without the need for a mechanical limiter (allows for high steering angle settings)

• Compatible with entire Fanatec ecosystem (see Compatibility section for details)

• T-nut rail system on sides and bottom for easily adjustable hard-mounting

• Ports:

  • Power supply

  • USB-C to PC / console

  • Shifter 1

  • Shifter 2 (Sequential only)

  • Pedals

  • Handbrake

  • CAN (for future Fanatec peripherals)

• Front-mounted threaded inserts for future Fanatec accessories. Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.
