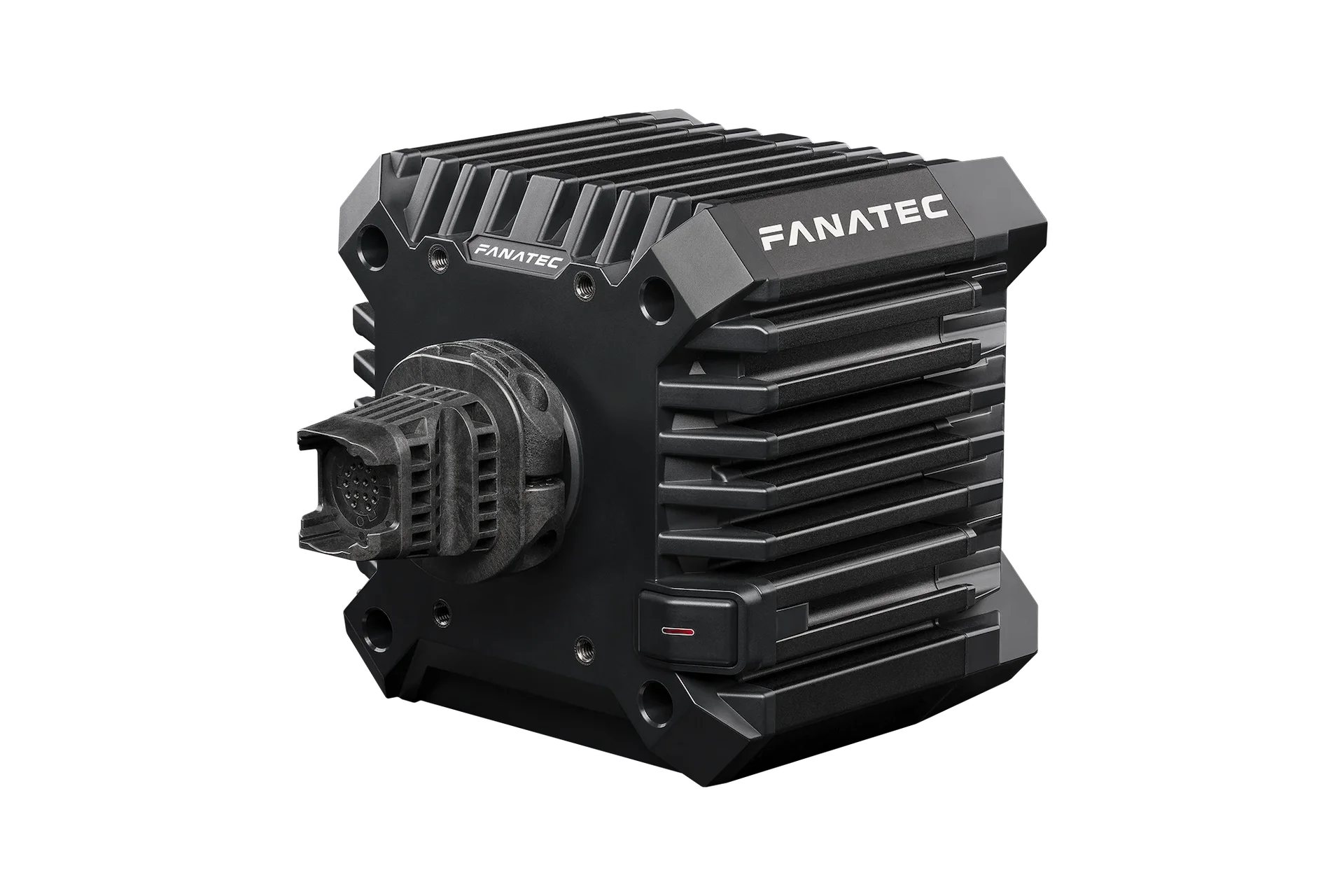

Fanatec CSL DD QR2 (5 Nm)

Direct-Drive system delivers instant, detailed force feedback

Linear, consistent performance (5 Nm peak torque)

Optional Boost Kit 180 (sold separately) unlocks maximum strength (8 Nm peak torque)

Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness

Full Fanatec SDK support ensures game compatibility out of the box for all major racing games

Standard Tuning Menu allows beginners to get started quickly without having to worry about settings

Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences

High-resolution (contactless) Hall-position-sensor, same as Podium Series

Steering axis made from carbon fibre-enhanced composite

Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps

Rotation: 2520 degrees (electronically limited, adjustable)

Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data to steering wheels

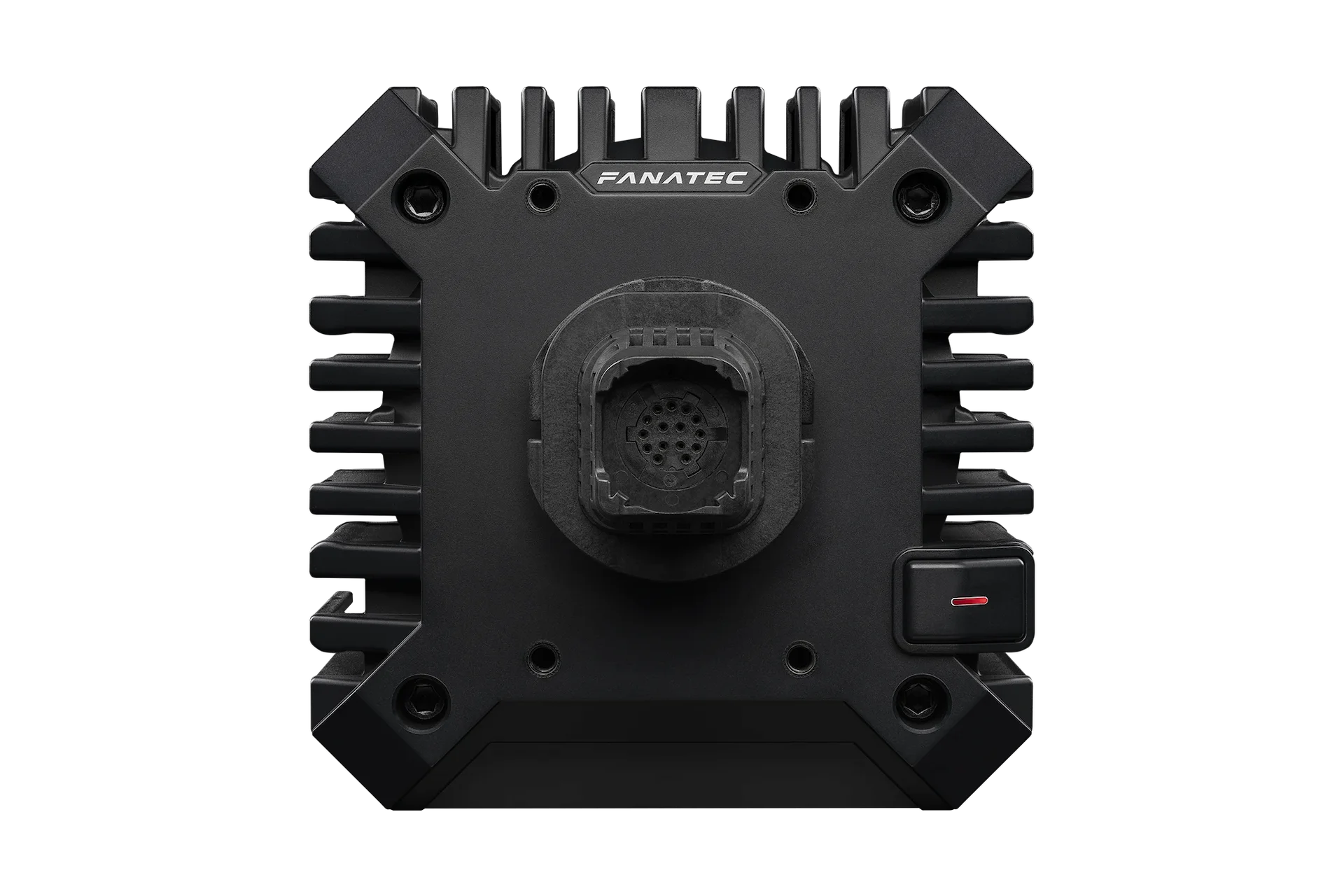

QR2 quick release system

• Motorsport-derived quick release

• Tapered shape naturally ensures a tight fit

• Carbon fibre-reinforced polyamide construction

• Exchangeable

T-nut rail system on sides and bottom for easily adjustable hard-mounting

Optional table clamp (sold separately), supports 5 to 60 mm table thickness

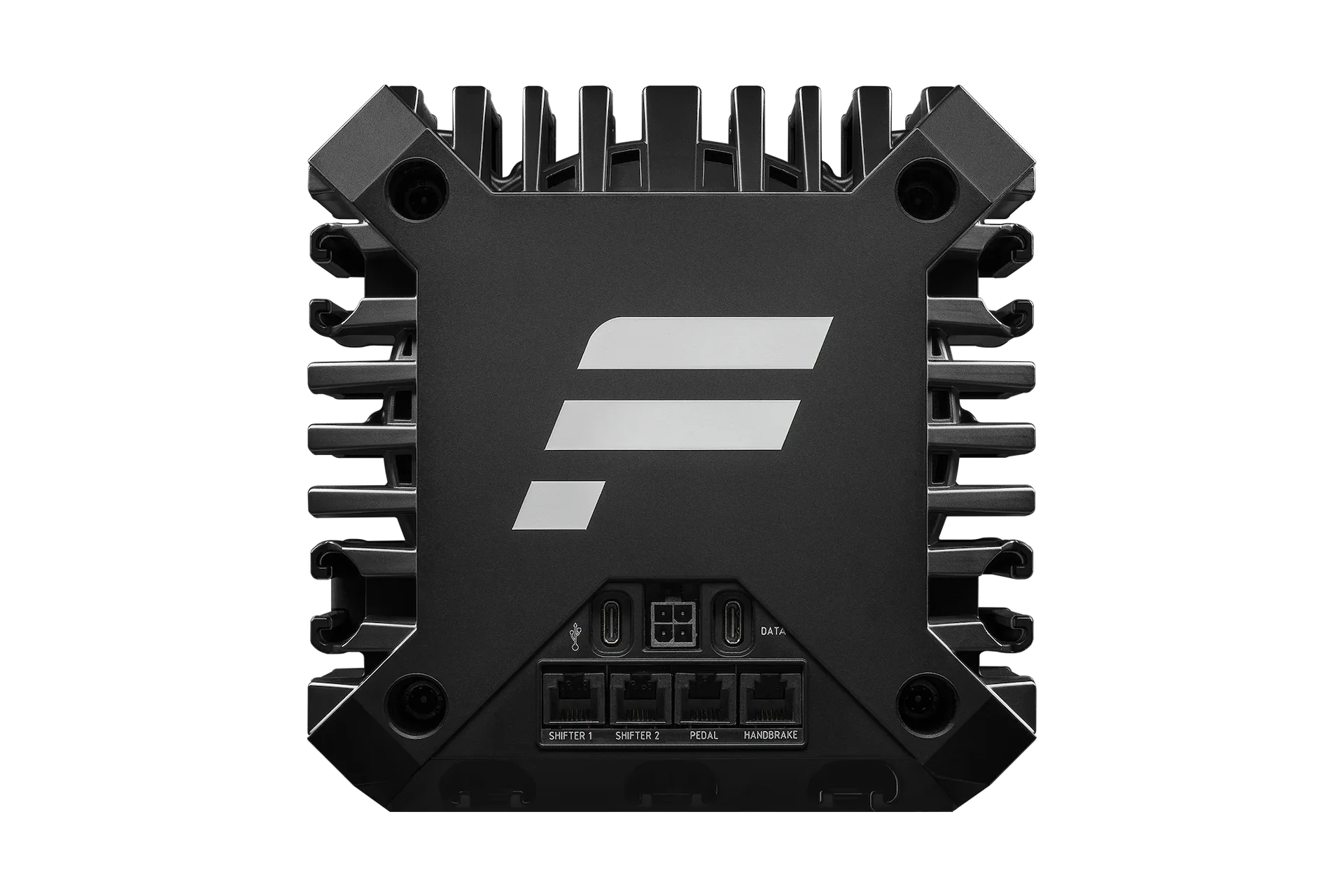

Ports:

• Power supply

• USB-C to PC / console

• Fanatec DataPort-C

• Shifter 1

• Shifter 2 (Sequential only)

• Pedal

• Handbrake

Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.
