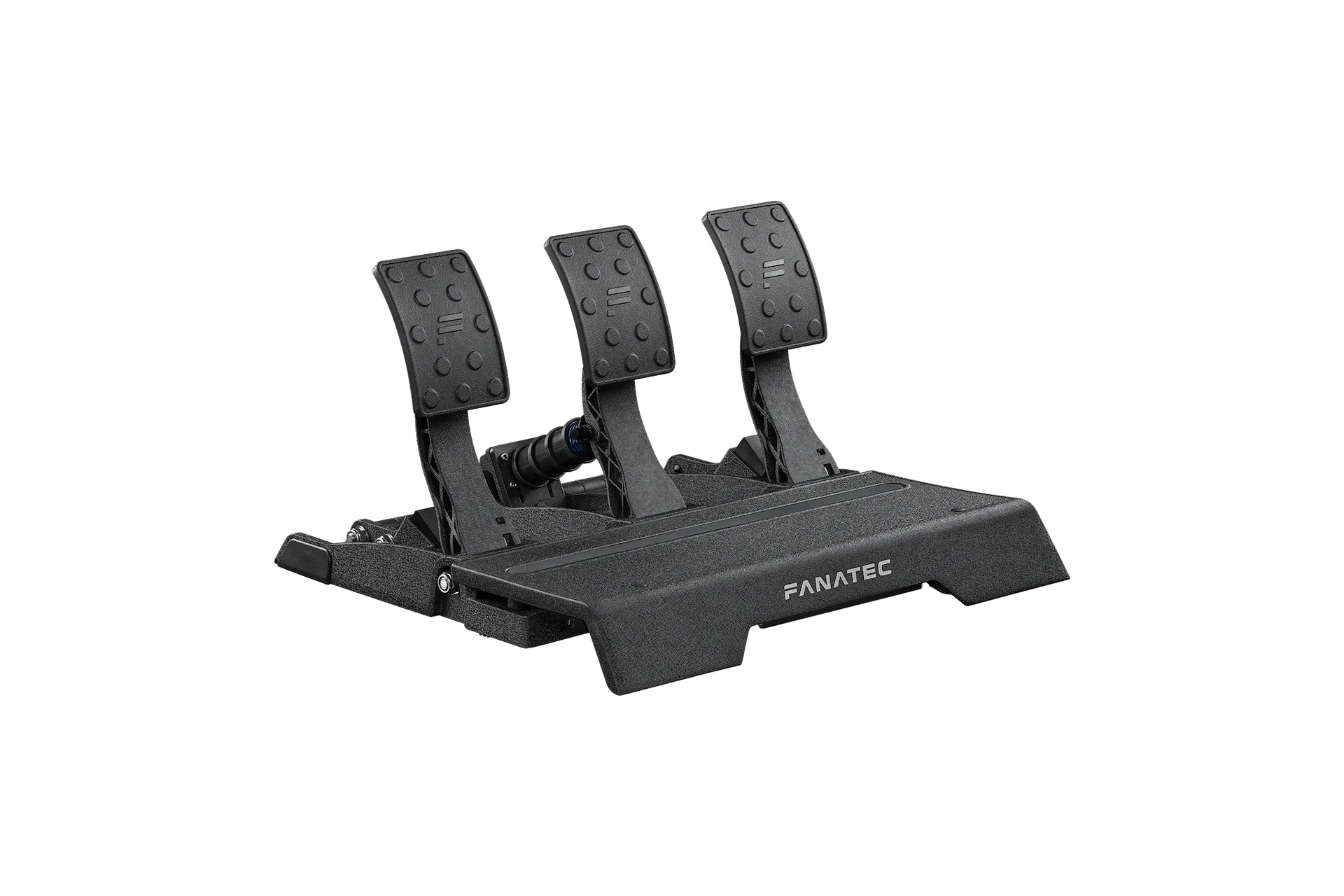

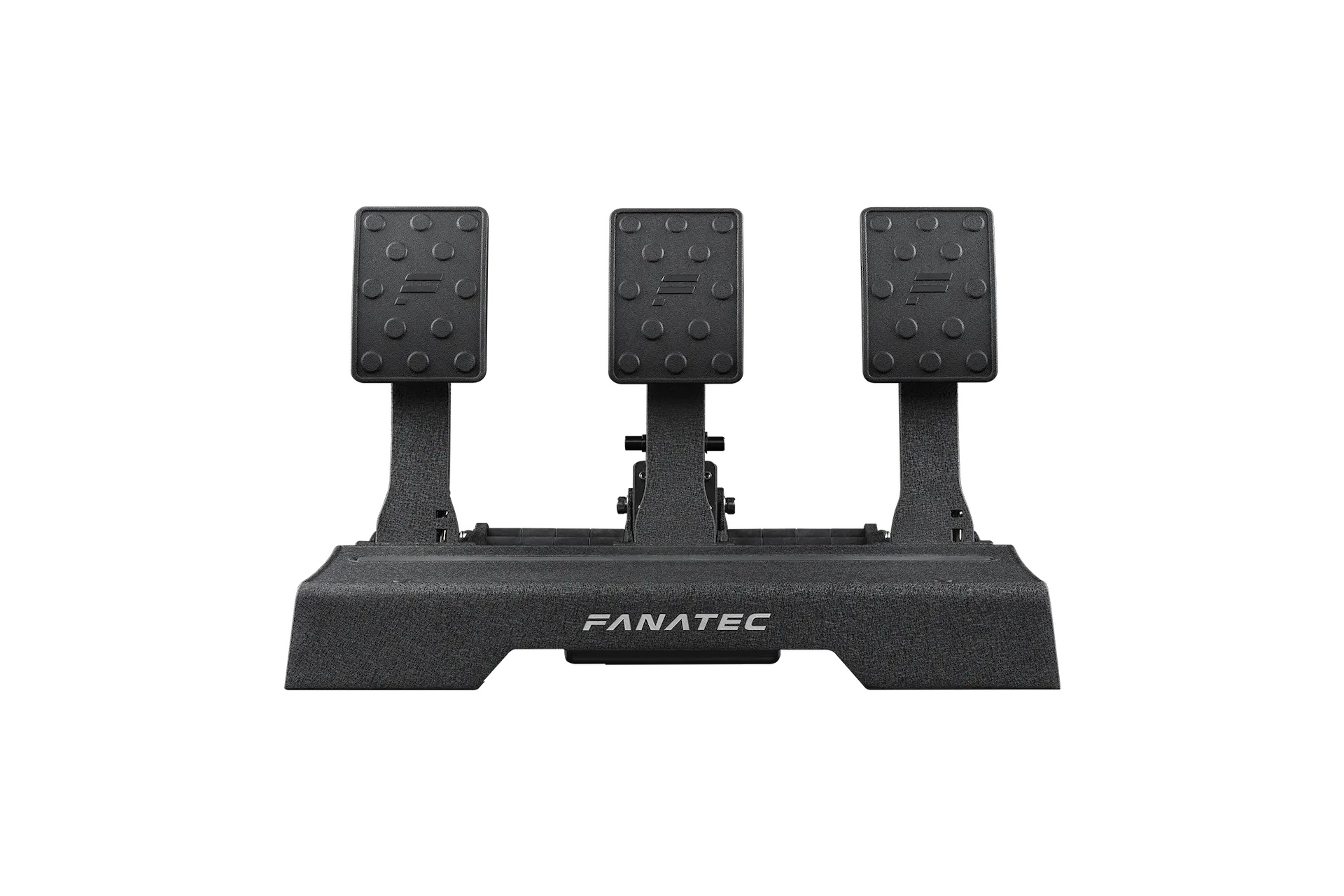

Fanatec CSL Elite Pedals V2

High-performance three-pedal set (clutch, brake, throttle)

Contactless Hall sensors on both clutch and throttle for high precision and durability

All-new load cell brake system

• Up to 90 kg measured foot force on pedal plate (load cell sensor rated >200 kg)

• Load cell sensitivity (approx. 10 kg minimum) adjustable via Tuning Menu (or Fanatec Control Panel on PC)*

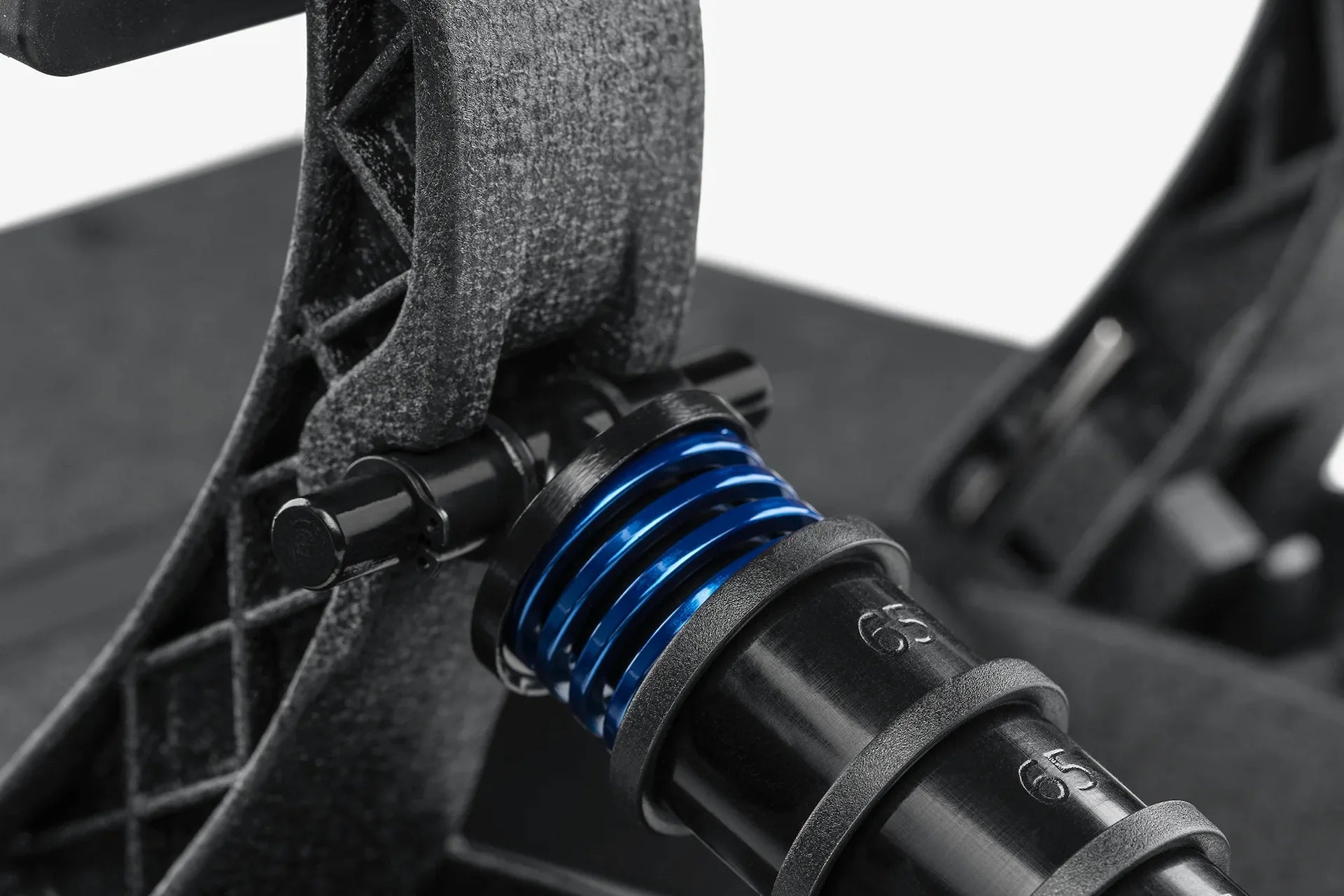

• Elastomer stack combined with load cell sensor creates a realistic braking feel

• Elastomer springs with 65, 75, and 85 Shore hardness included (tool-free adjustment)

• ‘Dual-stage’ preload feeling with metal spring and elastomer

• Alternative metal spring also included for stiffer preload

Pedal arms, faces, and heel rest made from cast and machined aluminium with durable power-coated finish

Fully assembled out of the box, plug and play

Easily configurable as a two-pedal set

Pedal position can be adjusted sideways along heel rest

Pedals can be individually mounted without heel rest, inverted mounting possible (hardware not included)

Detachable rubber pedal covers

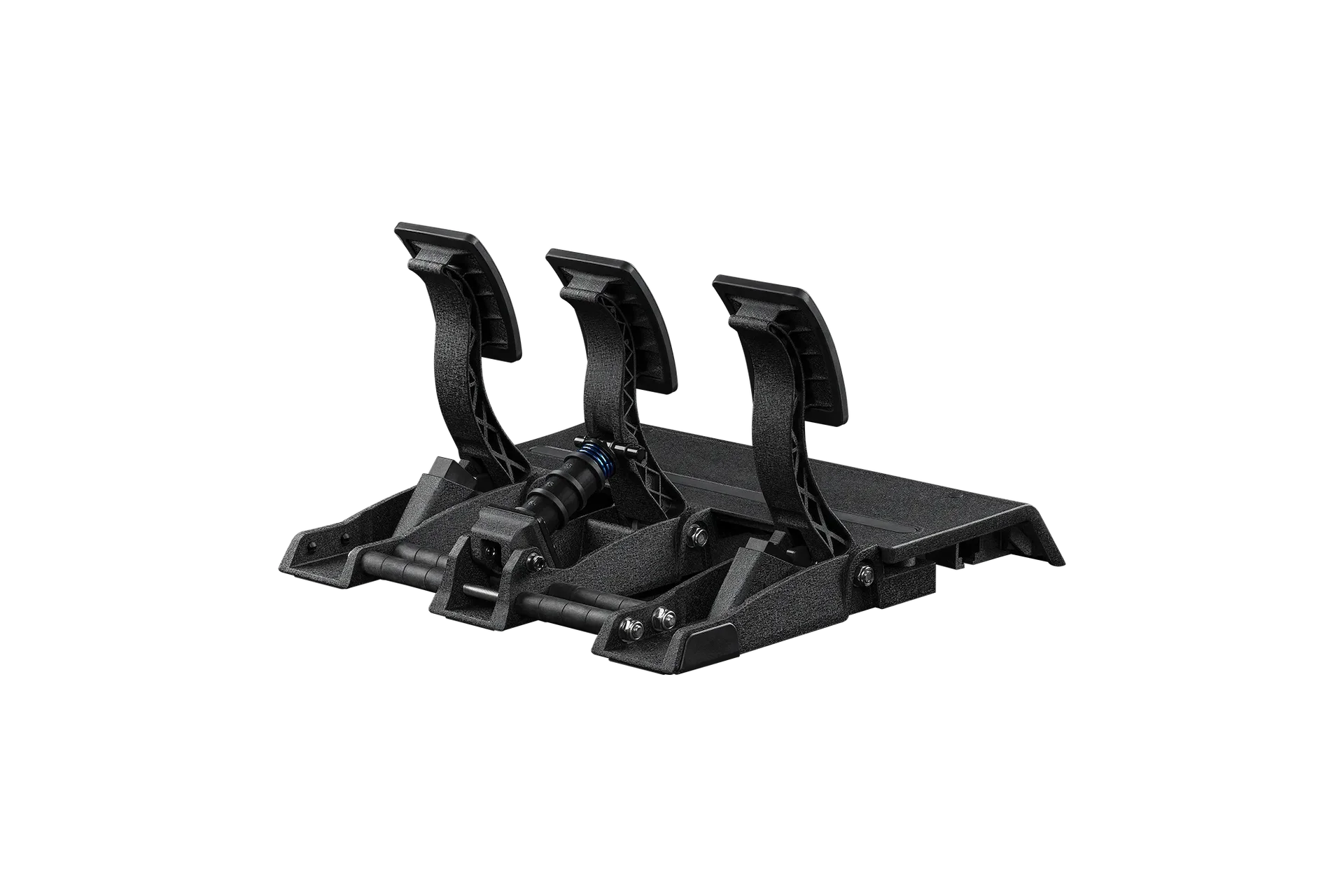

Revised structure on all pedals for greater durability

Improved access to hard-mounting points

Dedicated handbrake port

RJ12 or USB connection

• Connect directly to all compatible Fanatec Wheel Bases via RJ12 (recommended)

• Use as a standalone USB input device (PC only)
