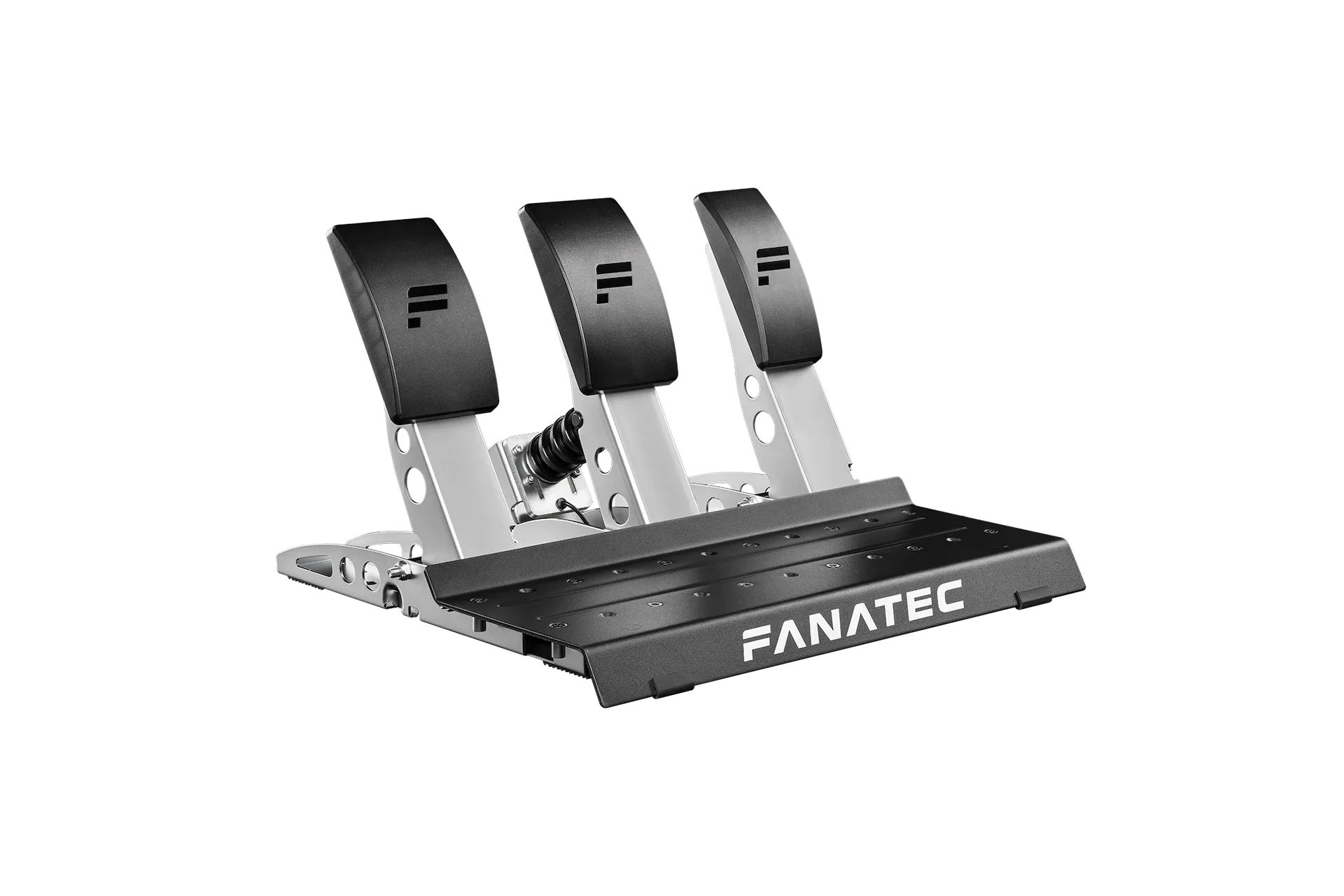

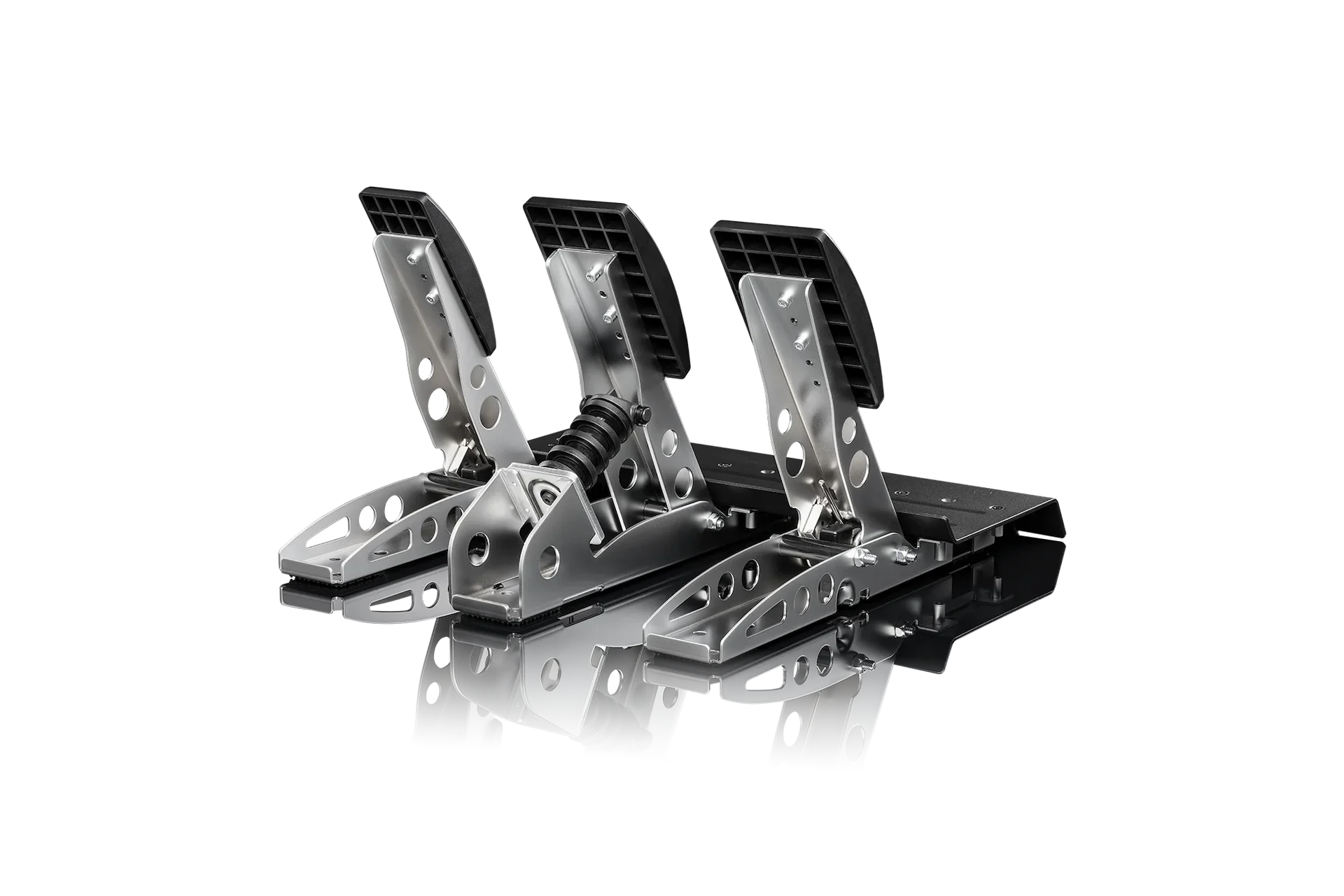

Fanatec CSL Pedals Load Cell Kit

Load cell brake upgrade for CSL Pedals

Heavy steel construction (excluding pedal face)

Pedal position can be adjusted sideways along CSL Pedals heel rest

Height-adjustable pedal face

Pearl chrome plating on pedal base and arm

Custom-designed load cell sensor

• 12-bit precision

• Load cell sensitivity (approx. 10 kg minimum) adjustable via Tuning Menu (or Fanatec Control Panel on PC)*

Heavy-duty elastomer stack with 65 Shore hardness

Upgraded electronics

• USB or RJ12 connection (USB means you can use the CSL Pedals as a standalone USB device on PC)

• Manual calibration of Min and Max values possible, settings saved to the internal memory

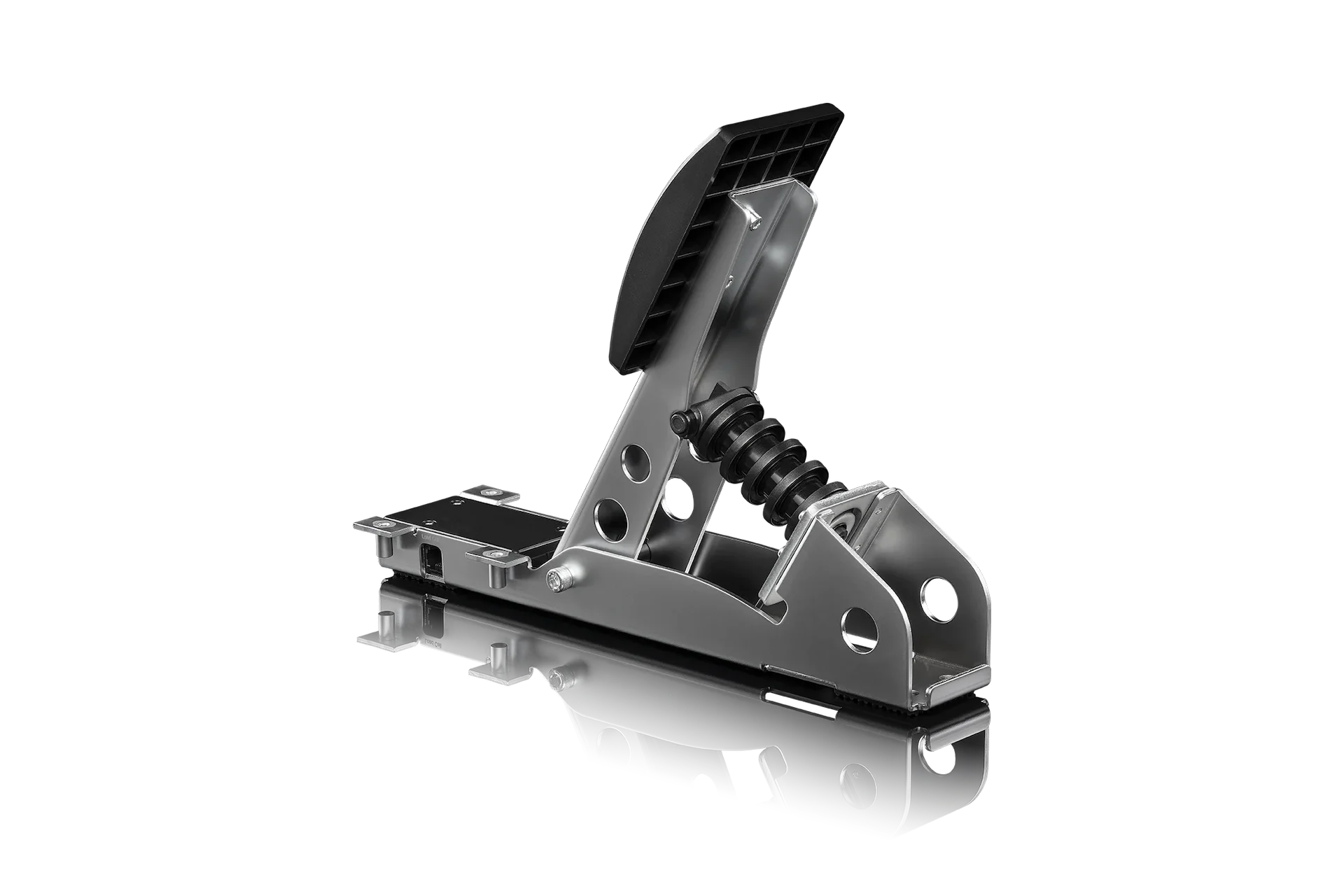

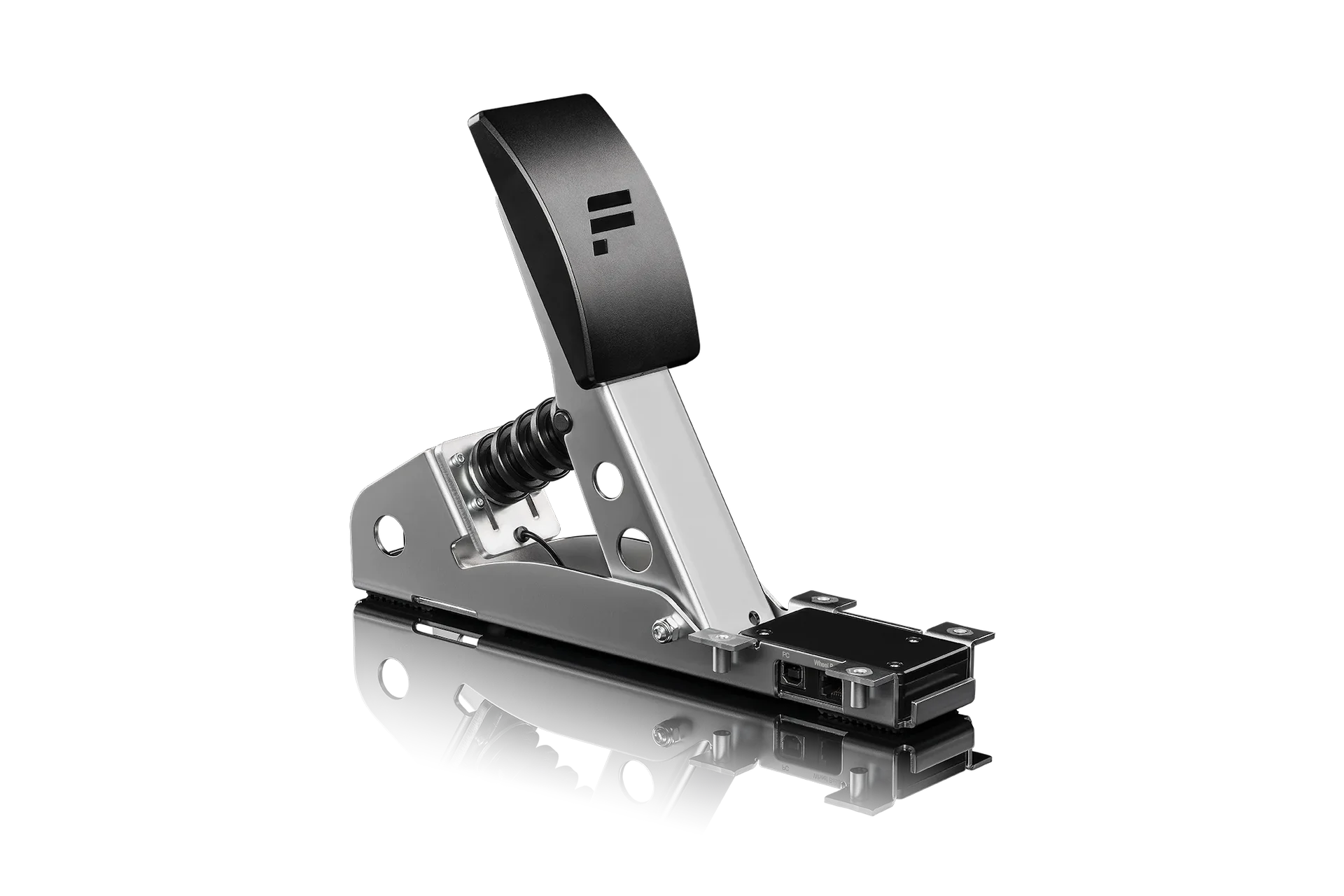

Load Cell Brake Pedal (pre-assembled)

1x USB cable

1x RJ12 to RJ12 cable

1x Torx key

M4x12 Mounting bolts (only to mount pedals to heel rest)

1x Quick Guide
