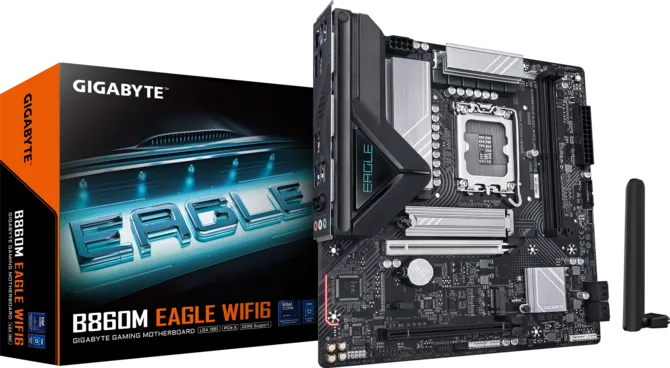

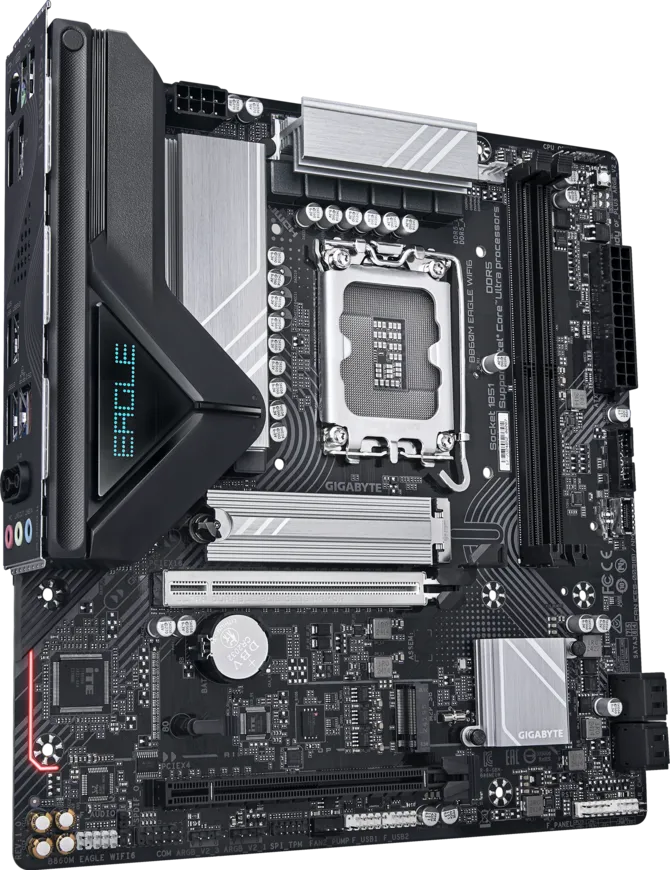

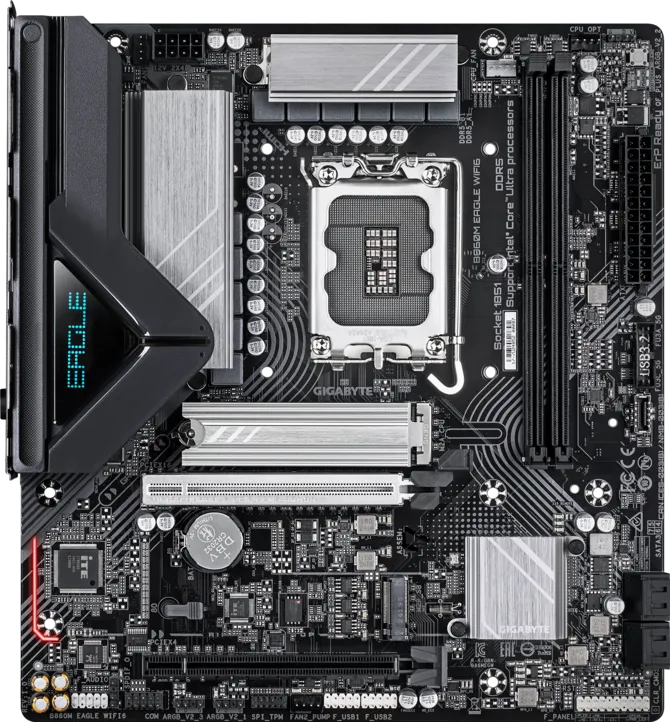

GIGABYTE B860M EAGLE WIFI6 INTEL B860 DDR5 MOTHERBOARD

• Supports Intel® Core™ Ultra processors (Series 2)
• Digital 6+1+2 phases VRM solution
• Dual Channel DDR5 : 2*DIMMs with XMP Memory Module Support
• D5 Bionic Corsa for Infinite Memory Performance
• AI Perfdrive : Provides optimal and customized BIOS preset profile for users
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• EZ-Latch : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking : 2.5GbE LAN Wi-Fi 6
• Extended Connectivity : HDMI, DisplayPort



CPU Support	LGA1851 socket Support for Intel® Core™ Ultra Processors (L3 cache varies with CPU)
Chipset	Intel® B860 Express Chipset
Memory	2 × DDR5 DIMM sockets Up to 128 GB (64 GB single DIMM capacity) Dual channel memory architecture Supported speeds: DDR5 9066 (O.C.) / 8800 / 8600 / 8400 / 8266 / 8200 / 8000 / 7950 / 7900 / 7800 / 7600 / 7400 / 7200 / 7000 / 6800 / 6600 / 6400 / 5600 MT/s ECC & Non-ECC Un-buffered DIMM support (operates in non-ECC mode) Extreme Memory Profile (XMP) support
Onboard Graphics	Integrated Intel® HD Graphics • 1 × HDMI 2.1 (max 4096×2160@60 Hz, HDCP 2.3) • 1 × DisplayPort 2.1 (max 3840×2160@144 Hz) Graphics specifications may vary depending on CPU
Audio	Realtek® Audio CODEC High Definition Audio 2 / 4 / 5.1 / 7.1-channel S/PDIF Out support
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps)
Wireless	Realtek® Wi-Fi 6 RTL8851BE Wi-Fi 6 (802.11ax) – 2.4/5 GHz Bluetooth 5.3
Expansion Slots	• 1 × PCIe 5.0 x16 slot (from CPU – PCIEX16) • 1 × PCIe 4.0 x4 slot (from chipset – PCIEX4)
Storage	CPU: 1 × M.2 2280 PCIe 5.0 x4/x2 (M2A_CPU) Chipset: 1 × M.2 2280 PCIe 4.0 x4/x2 (M2P_SB) 4 × SATA 6Gb/s connectors RAID 0 / RAID 1 / RAID 5 / RAID 10 support (SATA)
USB Ports	Back Panel: 3 × USB 3.2 Gen 1 + 3 × USB 2.0/1.1 Internal: 1 × USB Type-C (USB 3.2 Gen 1), 1 × USB 3.2 Gen 1 header, 2 × USB 2.0/1.1 headers
Internal I/O	24-pin ATX + 8-pin CPU power Multiple fan headers (CPU + system + water pump) 3 × Addressable RGB Gen2 LED headers 2 × M.2 connectors + 4 × SATA Front panel header, audio header, S/PDIF Out, TPM header, serial port header Q-Flash Plus button + Clear CMOS jumper

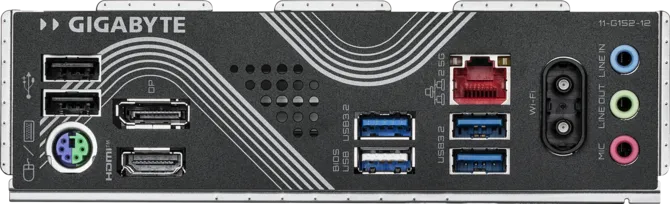

Back Panel Connectors	1 × PS/2 keyboard/mouse 1 × HDMI + 1 × DisplayPort 3 × USB 3.2 Gen 1 + 3 × USB 2.0/1.1 2 × Wi-Fi antenna connectors 1 × RJ-45 (2.5GbE) 3 × audio jacks
Form Factor	Micro ATX – 24.4 cm × 22.5 cm
Other Features	GIGABYTE Control Center (GCC) Q-Flash / Q-Flash Plus Smart Backup Windows 11 64-bit & Windows 10 64-bit support
