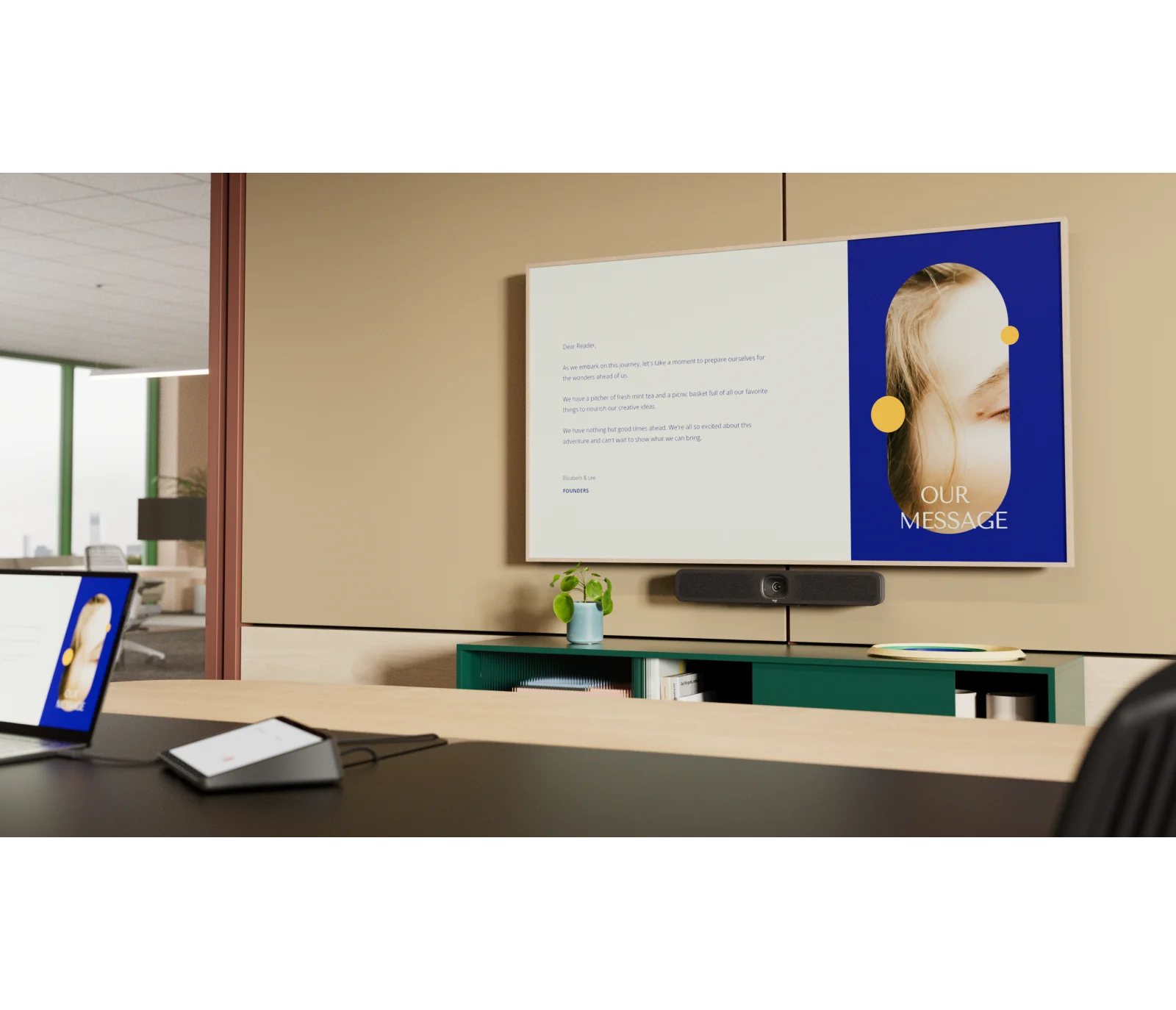

Upgrade your small USB-based meeting rooms
Bring AI-based features into your small USB meeting rooms with Meetup 2. Compatible with popular video platforms such as Microsoft Teams, Zoom, and Google Meet, MeetUp 2 can function in USB mode with an in-room PC or when connected to a laptop in BYOD mode.
MeetUp 2 is easy to set up and easy to manage with Logitech Sync — monitor room status, deploy updates, and modify settings all from a single cloud-based app.
Meetup 2 brings intelligent audio and video experiences to USB-based deployments in small rooms. Regular updates continuously enhance MeetUp 2's performance, expand its capabilities, and foster deeper integrations.
MeetUp 2 is easy to set up and manage in small spaces thanks to multiple mounting options, clean cabling, and remote management through Logitech Sync.
Deliver elegant, single-cable BYOD connections with MeetUp 2 when it is paired with the optional Active USB Cable accessory.
Dimensions
Technical Specifications
Overview

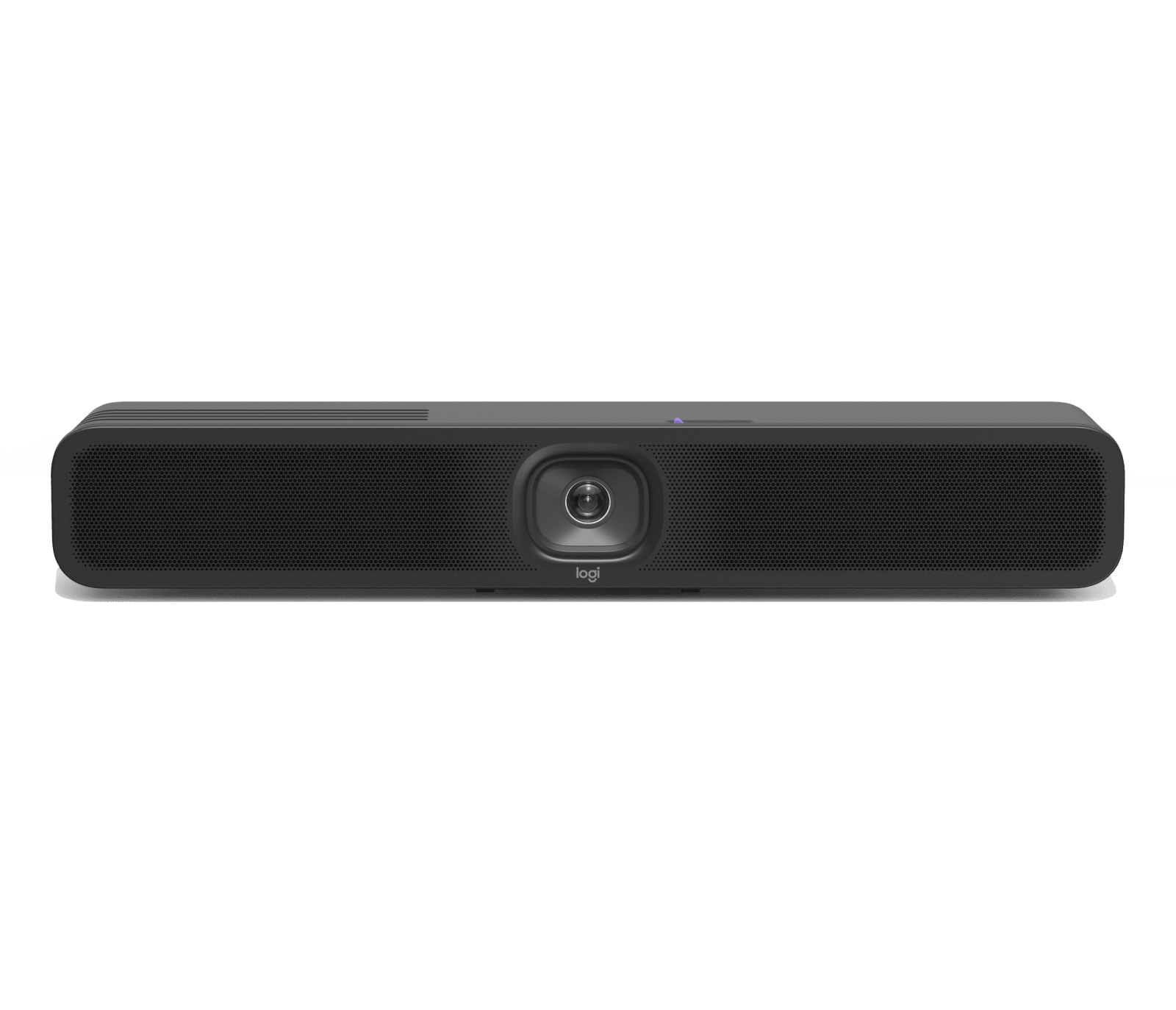

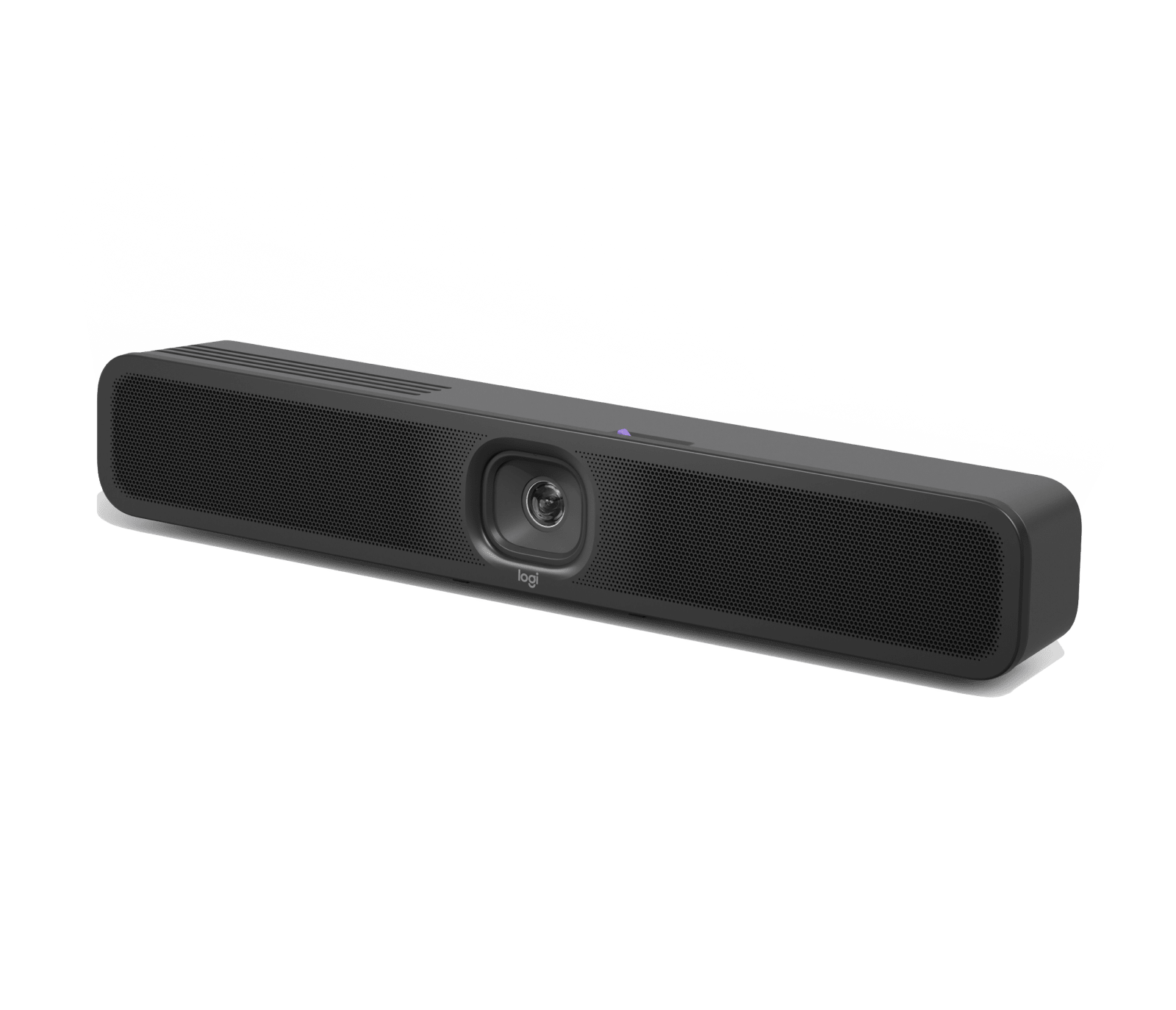

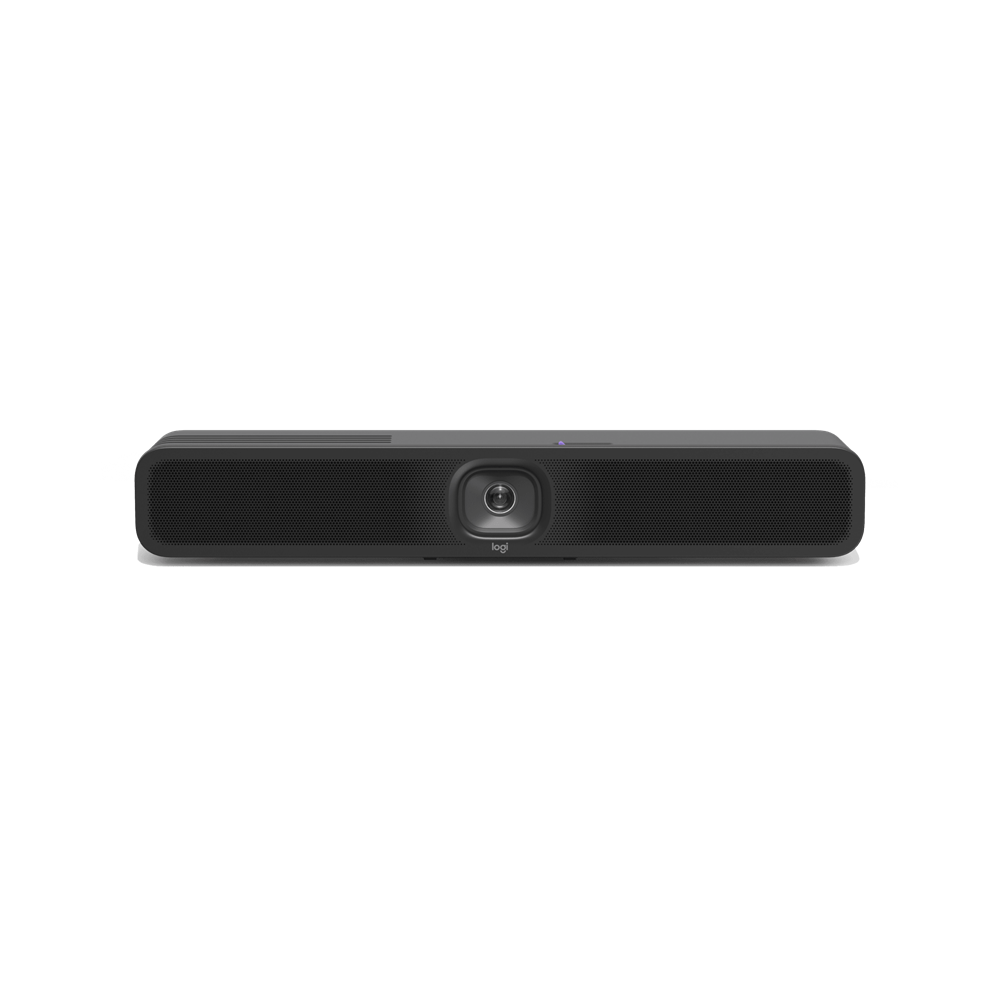

- Built-in Components
- 6 DMIC microphone array
- Digital PTZ camera
- 1 full range ported speaker
- Cable management & retention system

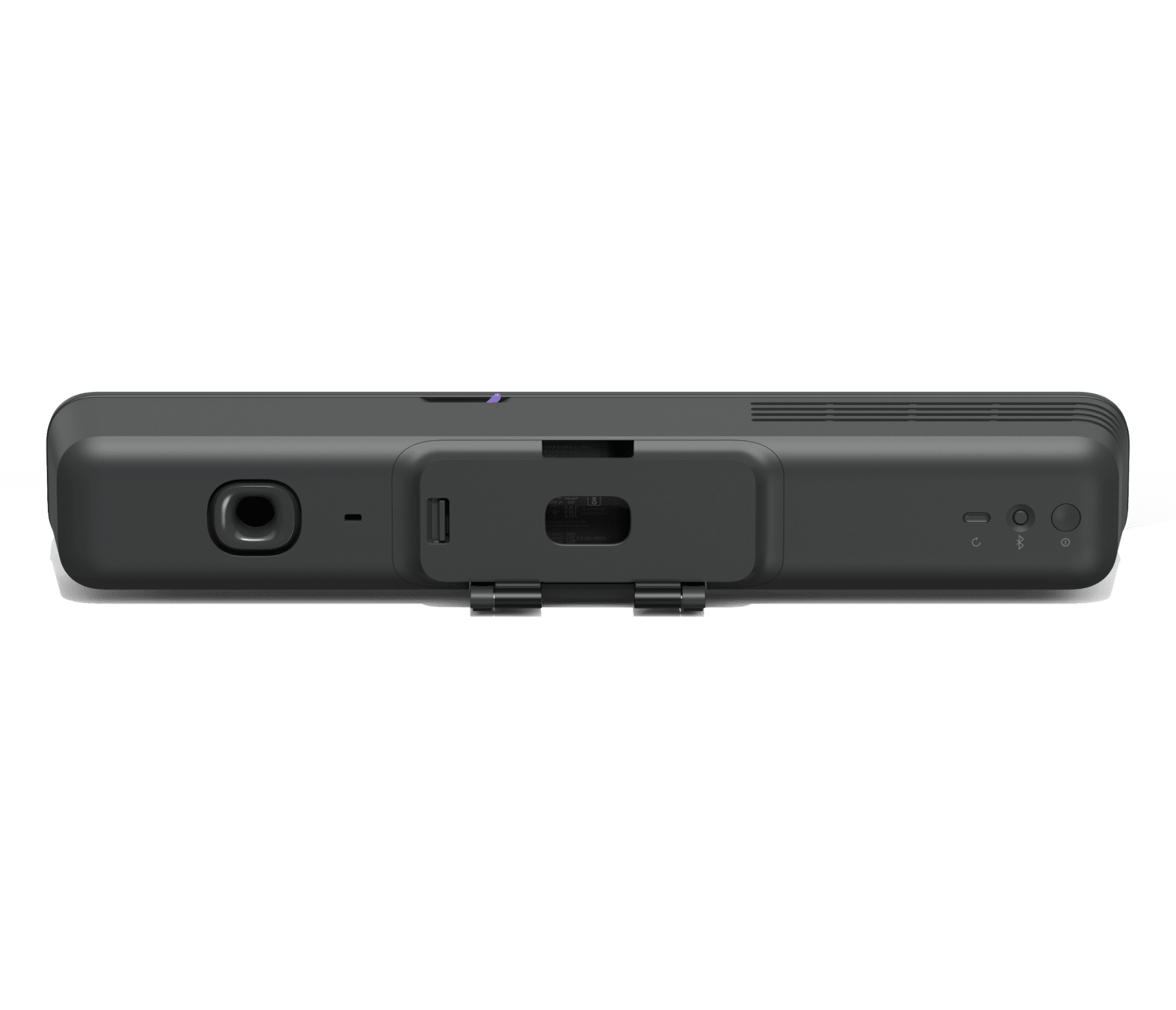

- Multi-mount
- Logitech CollabOS platform
- Logitech RightSight 2
- Logitech RightSound 2
General Specifications
-
Enclosure: All-in-one enclosure
-
Device Management: Logitech Sync
-
Displays Supported: BYOD mode: 1; Dedicated computer mode: computer/application dependent
-
Display Resolution: 1080p
-
Network Protocol Support: IPv4, IPv6
-
Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
-
RoomMate Compatibility: Not compatible with Logitech RoomMate, MeetUp 2 can be deployed in PC and BYOD mode only.
Camera
-
Digital pan: ±48° at 4x zoom
-
Digital Tilt: ±32° at 4x zoom
-
Zoom: 4X HD digital zoom
-
Diagonal Field of View: 120°
-
Horizontal Field of View: 113°
-
Vertical Field of View: 80°
-
Resolution: 4K
Speakers
-
Driver: 55 mm with bass reflex enclosure and patented suspension design
-
Sensitivity: 83 dB SPL @1W +/-2dB @ 1 meter
-
Rated Power: 8W THD at 1W, 1kHz : <2%
-
Speaker Sampling Rate: 48KHz
-
Impedance: 4 Ohms
Microphones
-
Frequency Response: 90Hz – 16kHz
-
Sensitivity: -36dBFS +/-1 dB @ 1Pa
-
Microphone data rate output: 48 kHz
-
Pickup Range: Up to 7m
-
Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
-
Audio processing: AEC (Acoustic Echo Cancellation) VAD (Voice Activity Detector)
-
Noise suppression: AI based de-noising algorithm
Interfaces
-
HDMI Out: 1
-
HDMI In: 1
-
USB: 1 x Type C USB 3.1
-
Network: 10/100/1G Ethernet
-
WiFi: 802.11a/b/g/n/ac/ax
-
Bluetooth: Bluetooth® Low Energy
Power and Cables
-
Power supply: Auto-sensing
-
Operating Voltage/Power: 100-240V, 19V, 2.1A
-
Power Supply Dimensions: 114 x 47 mm x 32.3 mm
-
DC Cable: 3 m
-
USB C to USB C 2.0 Cable: 3 m
Environmental
-
Operating temperature: 0 to 40°C
-
Storage temperature: -25-70°C
-
Humidity: 10 to 90%
Security
-
File Based Encryption: AES-128
-
Data Encryption: Symmetric Keys, PKI
-
Device Identity: Protected by device attestation
-
Device Access: Authenticated using API
-
Key Protection: Arm TrustZone, RPMP
-
Physical Security: Kensington security slot
2-Year Limited Hardware Warranty
1-Year and 3-Year Extended Warranty available for purchase
macOS: two most recent versions
Network Connection: wired or wireless
In the Box
- All-in-one MeetUp 2 with multi-function mount
- Power supply with region-specific plugs
- USB-C to USB-C 2.0 cable that is 3 m
- 2 wall anchors and 2 screws
- Quick start guide printed on the box
