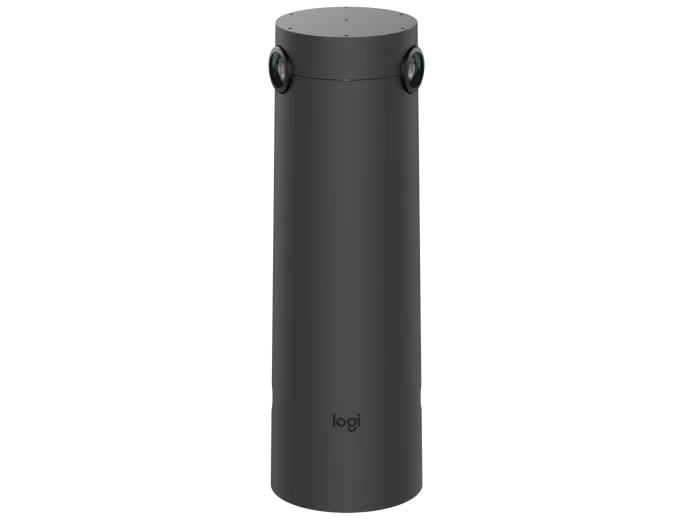

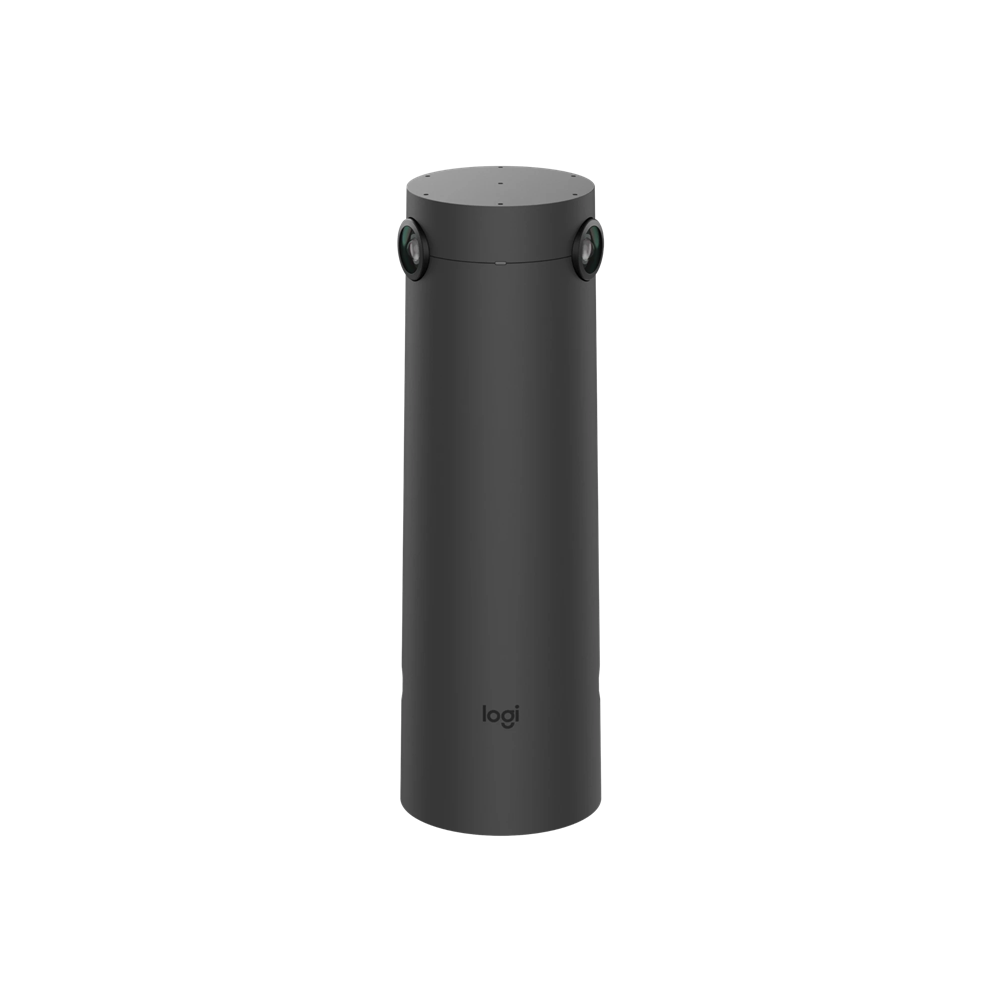

Logitech Sight Tabletop companion camera with intelligent multi-participant framing.

• Graphite : 960-001510
• White : 960-001503

Table-mounted

• Height: 299.0 mm
• Width: 169 mm
• Depth: 169 mm

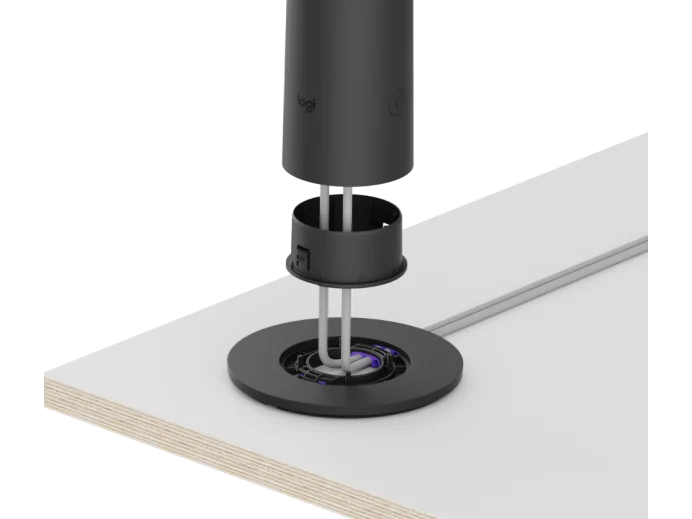

Grommet-mounted

• Height: 291.2 mm
• Width: 93.4 mm
• Depth: 93.4 mm
• Grommet hole 25 mm or larger

Video Platform Compatibility

• Integration and feature compatibility will vary by platform. For more details, see www.logitech.com/prosupport/sight-compatibility.

General Specifications

• Built-in Components
  • 7 beamforming microphones, dual lens camera, Logitech Collab OS platform
• Device Management
  • Logitech Sync

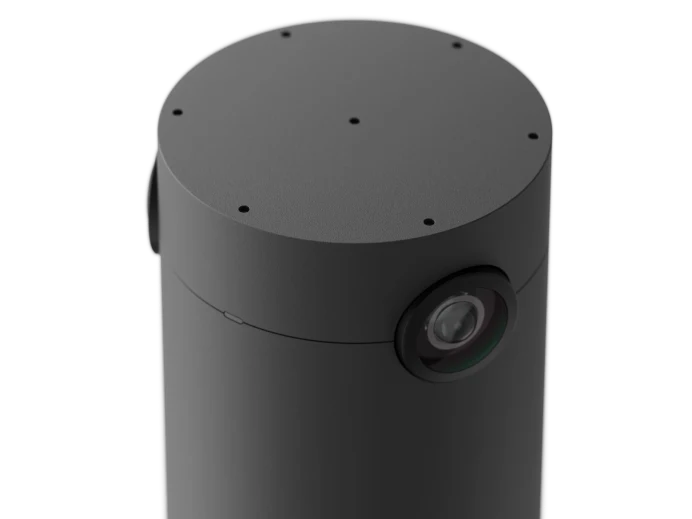

• Camera
  • Sensor resolution: 4K
  • Zoom: X1
  • Horizontal Field of View: 315°
  • Vertical Field of View: 97°
  • Diagonal Field of View: 180°
  • Focal Length: 1.87 mm
  • Depth of Field: 50 cm-5 m
  • Frame Rate (max): 60 fps
• Microphone Specifications
  • Beamforming Elements: 7 omnidirectional digital MEMS microphones forming six adaptive acoustic endfire beams
  • Pickup Range: 2.3 m radius per single device
  • Microphone Type: digital MEMS microphones with 72 dB SNR and 130 dB AOP, dirt and water resistant to IP57 spec
  • Frequency Response: 90Hz – 16 kHz
  • Sensitivity: >-36 dBFS +/-1 dB @ 1 Pa
  • Audio processing: AEC (Acoustic Echo Cancellation), Machine Learning VAD (Voice Activity Detector)
  • Noise suppression: Artificial Intelligence Machine Learning to attenuate both stationary and non-stationary noises
  • Additional mic pods
    • Rally Bar: Supports up to 3 Mic Pods and 2 Mic Pod Hubs
    • Rally Bar Mini: Supports up to 2 Mic Pods and 2 Mic Pod Hubs
    • Rally/Rally Plus: Supports up to total of 6 Mic Pods and/or Mic Pod Hubs
