Technical Specifications
|

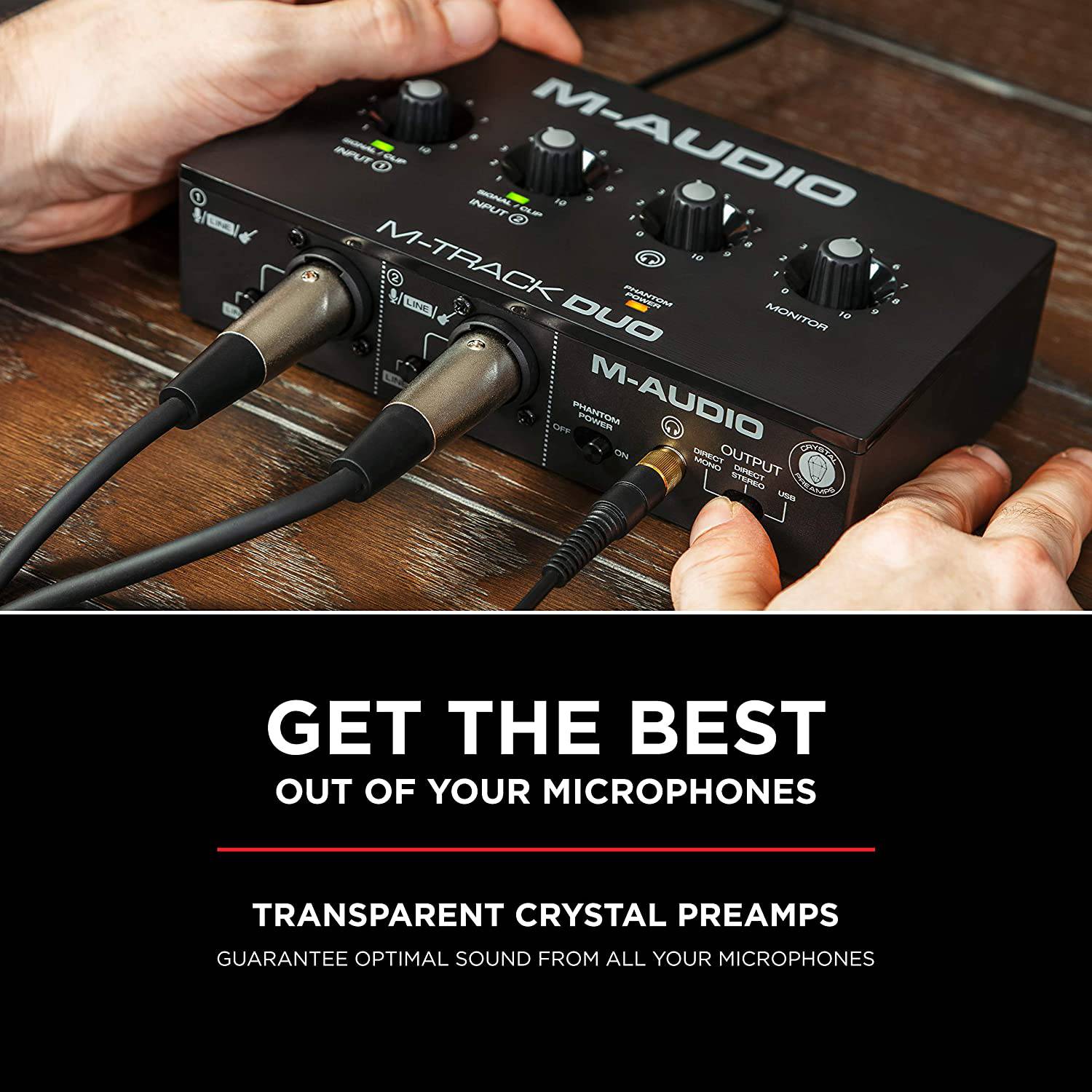

Mic Input (balanced XLR) |
|
|
Frequency Response |
20 Hz – 20 kHz (+0.1 dB) |
|
Signal-to-Noise Ratio |
109 dB (A-weighted) |
|
THD+N |
0.003% (min. gain, 0 dBu out, A-weighted) |
|
Preamp EIN |
-128 dBu (max. gain, 40 Ω source, A-weighted) |
|
Gain Range |
Direct Mono: 0 dB to +54 dB Direct Stereo: 6 dB to +60 dB |
|
Line Input (balanced 1/4" [6.35 mm] TRS) |
|
|
Frequency Response |
20 Hz – 20 kHz (+0.1 dB) |
|
Sensitivity |
-43 dBu |
|
THD |
0.002% (min. gain, 0 dBu out, A-weighted) |
|
Gain Range |
Direct Mono: -10 dB to +44 dB Direct Stereo: -4 dB to +50 dB |
|
Instrument Input (unbalanced 1/4" [6.35 mm] TS) |
|
|
Frequency Response |
20 Hz – 20 kHz (+0.1 dB) |
|
THD+N |
0.005% (min. gain, 0 dBu out, A-weighted) |
|
Input Impedance |
1 MΩ |
|
Gain Range |
Direct Mono: -10 dB to +44 dB Direct Stereo: -4 dB to +50 dB |
|
Main Outputs, L and R (impedance-balanced 1/4" [6.35 mm] TRS) |
|
|
Frequency Response |
20 Hz – 20 kHz (+0.1 dB) |
|
Signal-to-Noise Ratio |
109 dB (A-weighted) |
|
THD |
0.002% (0 dBu out, A-weighted) |
|
Max Output Level |
+4 dBu |
|

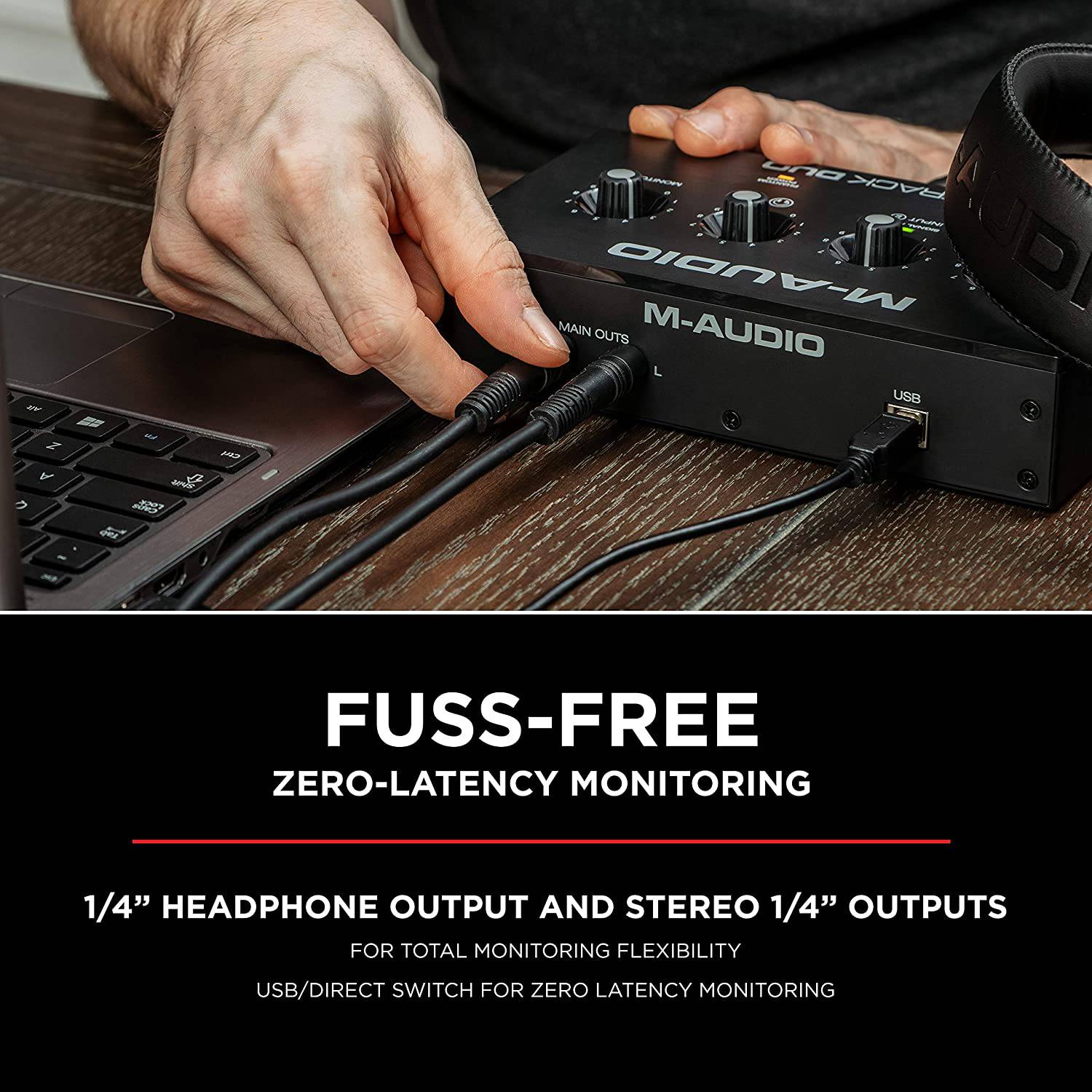

Headphone Output (1/4” [6.35 mm] TRS) |
|
|
Power |
60 mW/Ch, 32 Ω |
|
Frequency Response |
20 Hz – 20 kHz (+0.5 dB) |
|
THD+N |
0.02% (A-weighted) |
|
Signal-to-Noise Ratio |
100 dB (A-weighted) |
What’s In The Box
M-Track Duo
USB-B–to–USB-A Cable
Software Download Cards
User Guide
Safety & Warranty Manual
