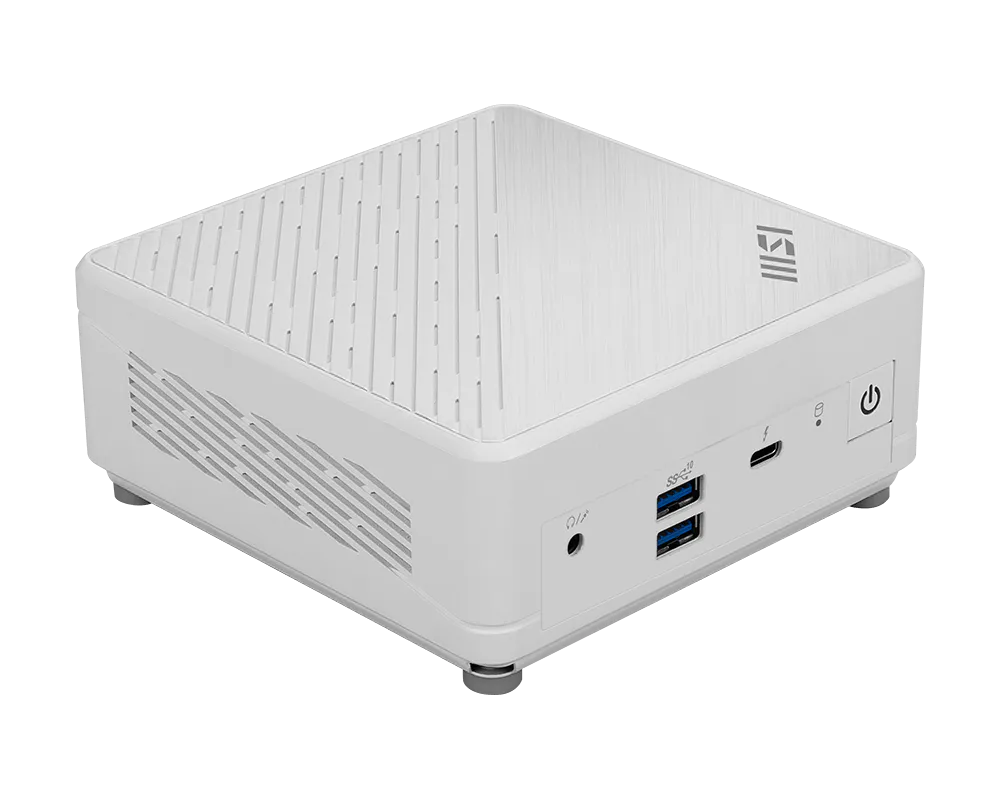

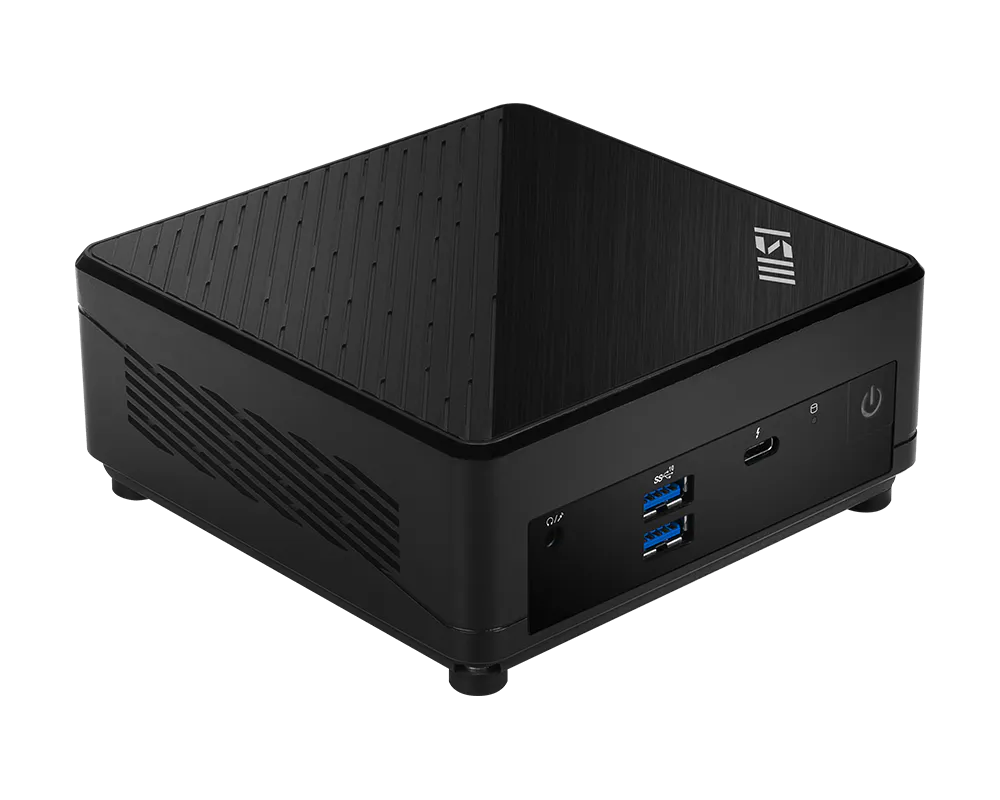

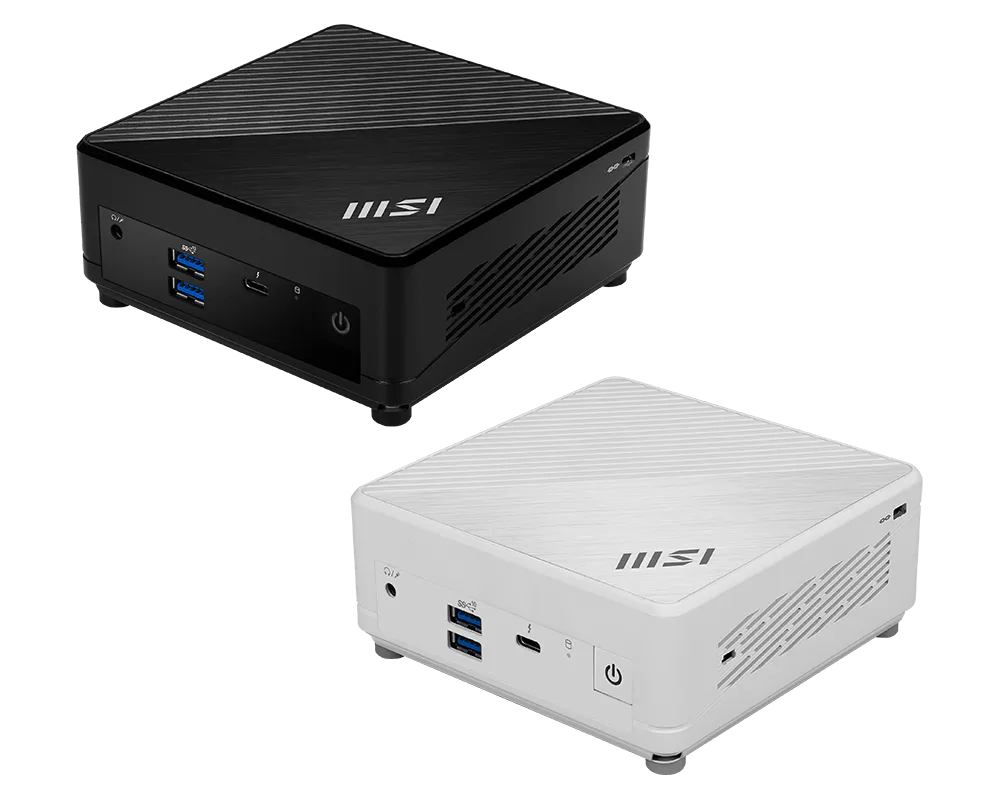

MSI Cubi 5 12M Mini PC – Intel Core i7-1255U, DDR4, Barebone

Note: This is a barebone mini PC. It does not include RAM, SSD or an operating system — these need to be purchased and installed separately.

MSI Cubi 5 12M

• Up to 12th Gen Intel® Core™ i7 Processors
• Support up to 8K UHD Display
• Support three displays that allow you to see more and do more
• Thunderbolt 4 delivers the fastest, most versatile connection to any dock, display, or data device & NAS
• Dual LAN: the best way to back up your file / secure data and prevent the hacker (with MSI exclusive BIOS)
• Get all the performance benefits from USB 3.2 Gen 2 and enjoy the best data transmission experience
• Experience 75% lower latency with WiFi 6E technology (optional)
• FW TPM design secures your confidential data with encryption keys
• Supports standard VESA-mount

Specifications

Model	Cubi 5 12M-444BIN
CPU	Intel® Core™ i7-1255U (10 cores / 12 threads)
Chipset	Intel® SoC
Graphics	Intel® Iris® Xe Graphics (with dual-channel memory)
System Memory	2x DDR4 2666/3200MHz SO-DIMMs, expandable up to 64GB (RAM not pre-installed)
Storage	1x M.2 SSD (NVMe PCIe Gen4 x4 / SATA auto switch) slot 1x 2.5" HDD / SSD bay (storage not pre-installed)

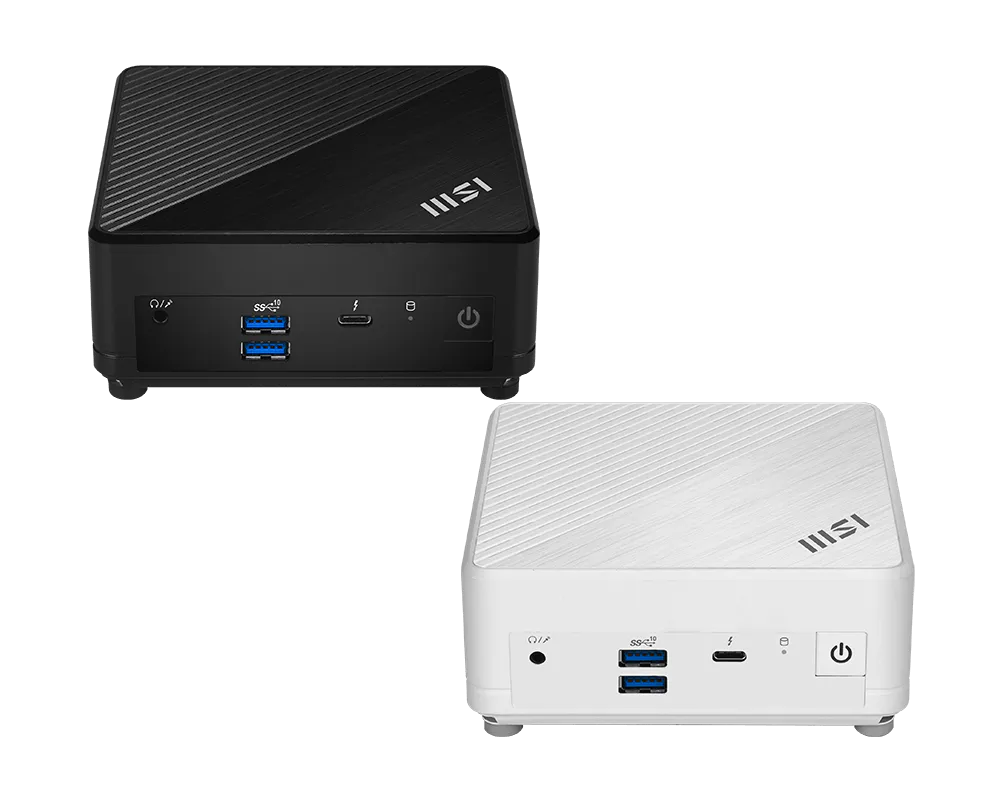

I/O (Front)	2x USB 3.2 Gen 2 Type A 1x Thunderbolt 4 (USB Type C port) 1x Mic-in/ Headphone-out combo

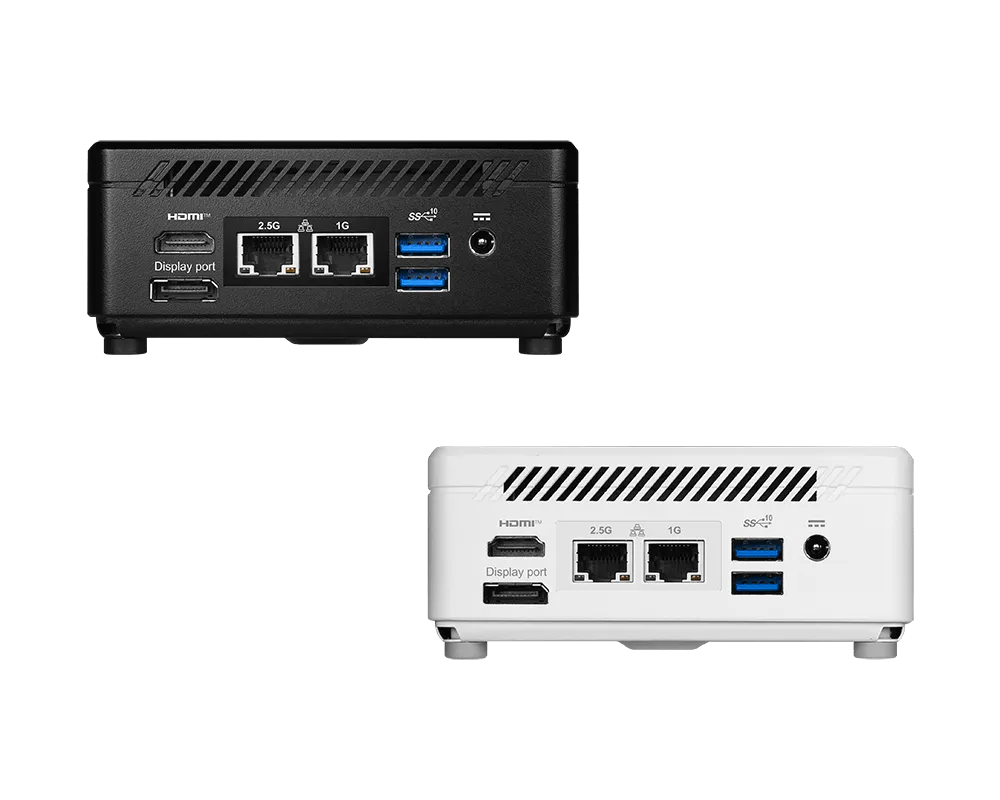

I/O (Rear)	2x USB 3.2 Gen 2 Type A 2x RJ45 1x HDMI™-out (supports 4K @60Hz as specified in HDMI™ 2.0b) 1x DP-out (1.4)
Wireless LAN / Bluetooth	Wi-Fi 6E + Bluetooth 5.3
LAN	1x Realtek® RTL8111H 1x Realtek® RTL8125BG-CG
Audio	Realtek ALC256, 2.1 Channel HD Audio
Cooling System	Fan Cooler
AC Adapter / PSU	65W
Colour	Black
Dimension (WxDxH)	124 x 124 x 53.7 mm (4.88 x 4.88 x 2.11 inch)
Weight (N.W./ G.W.)	0.59 kg / 1.33 kg
VESA Mount	100 x 100 mm
Volume	0.66 Liter
In the Box	AC Adaptor, Power Cord, Quick Guide, VESA Mount Kit, Power Switch
Warranty	36 months
