MSI Cubi 5 1M Mini PC – Intel Core 7 150U, DDR5, Barebone

Note: This is a barebone mini PC. It does not include RAM, SSD or an operating system — these need to be purchased and installed separately.

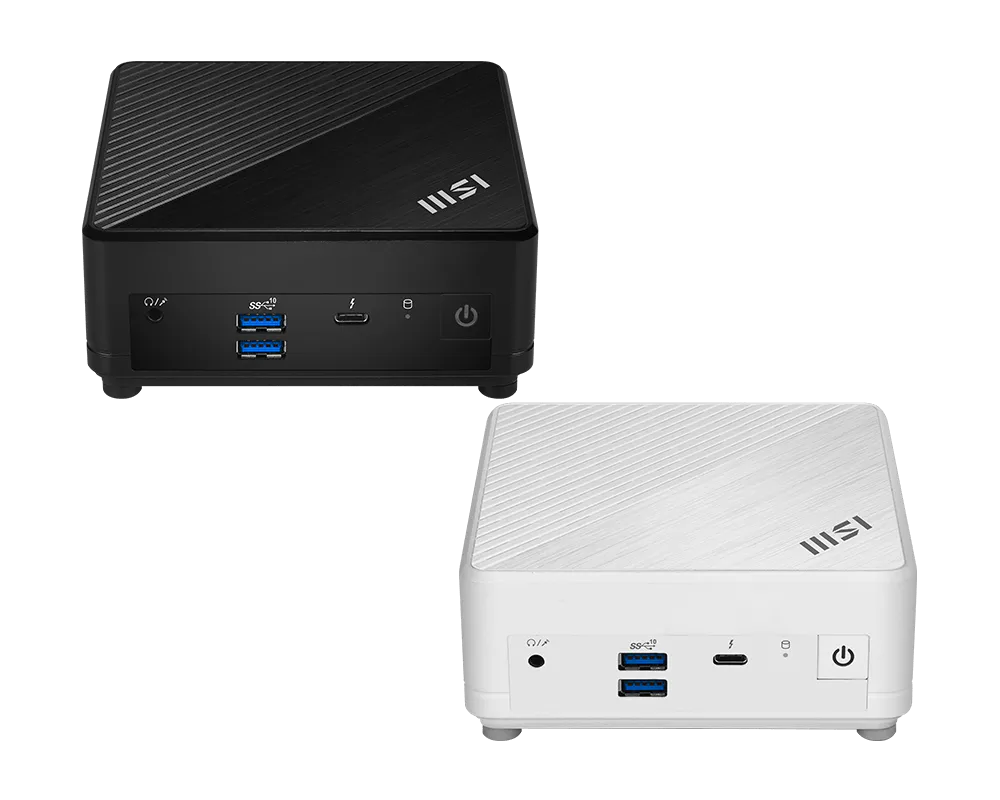

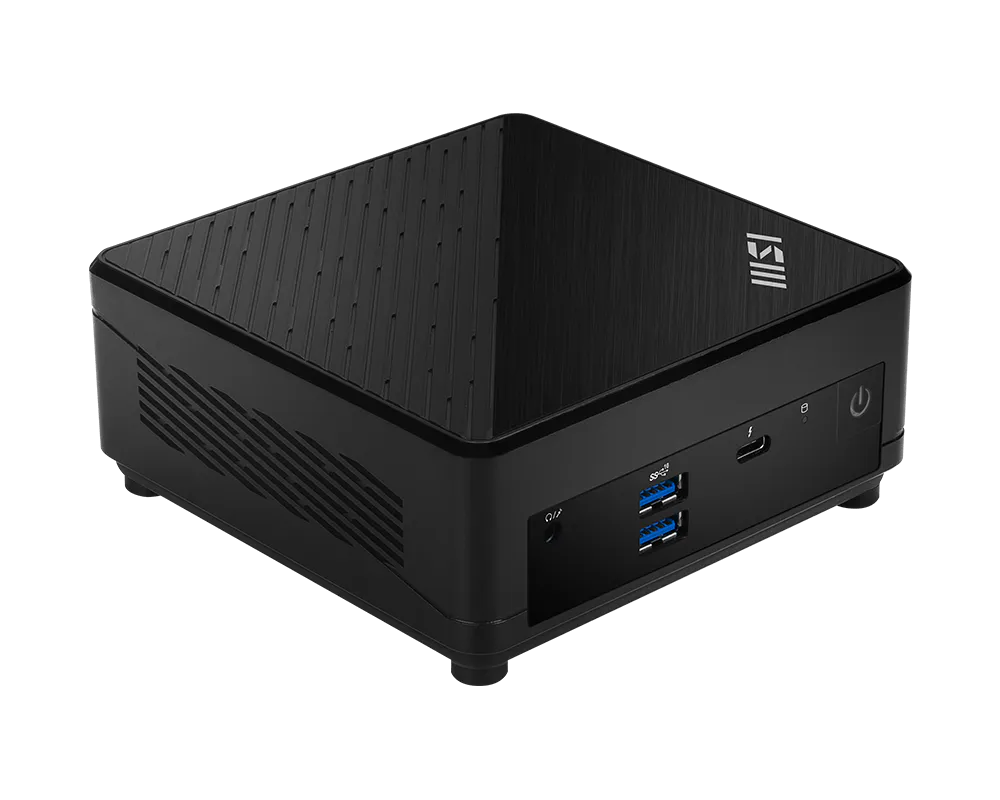

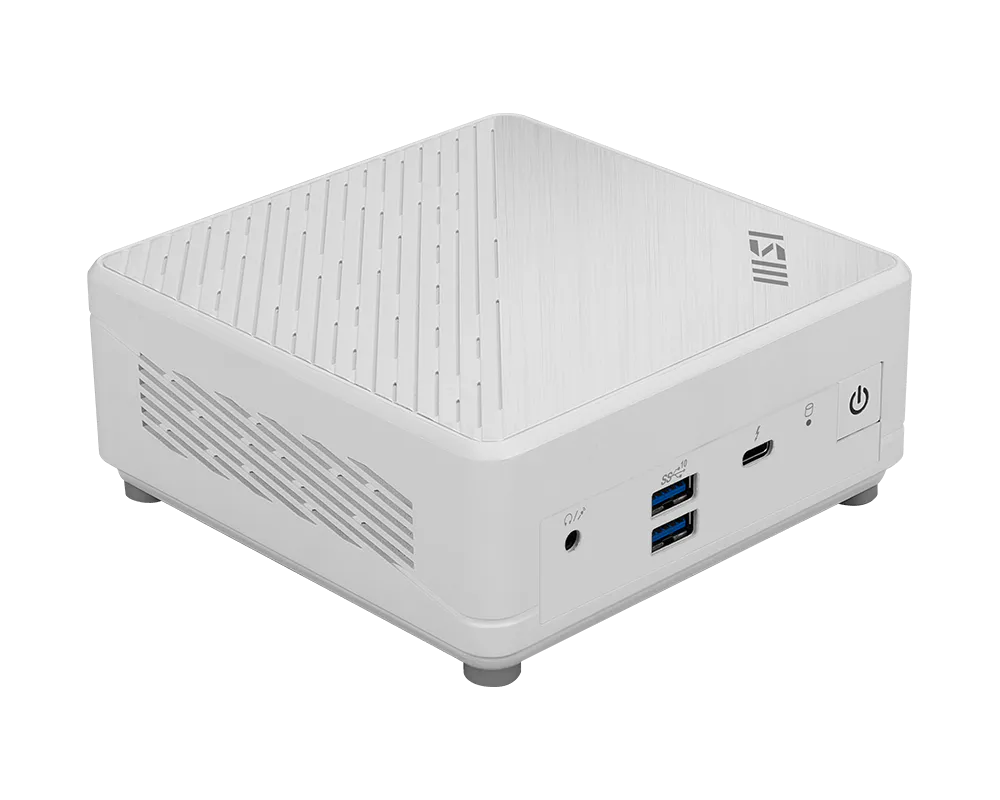

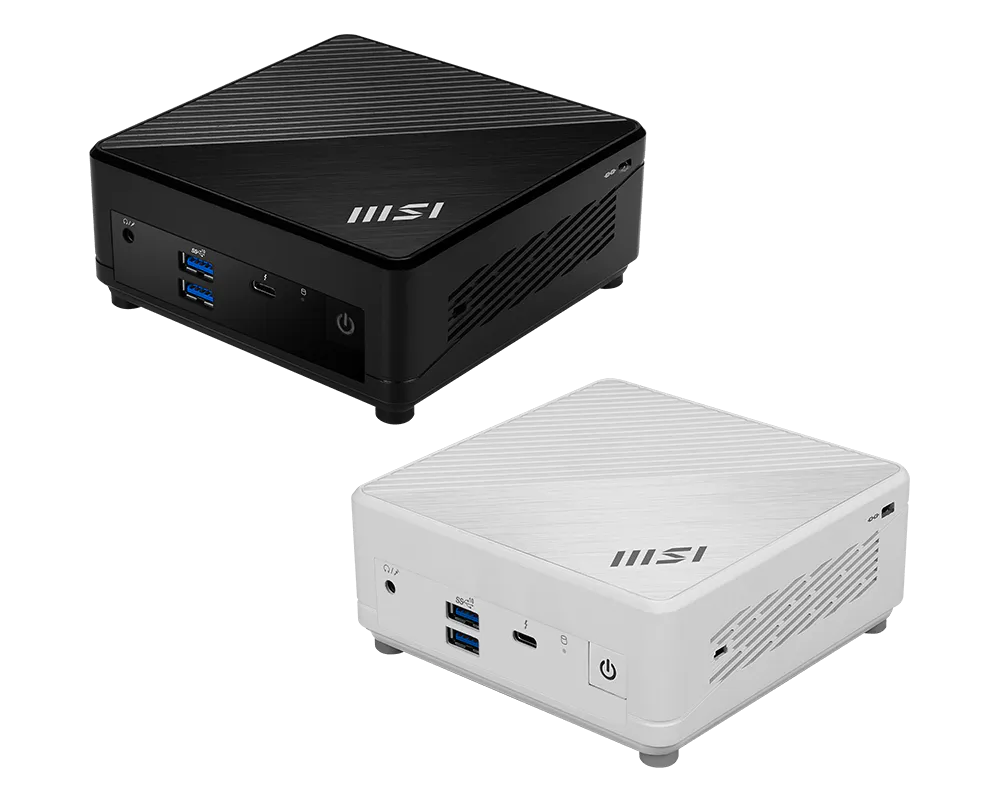

MSI Cubi 5 1M

• 0.83-Liter with VESA mountable design
• Up to Intel® Core™ 7 processor 150U
• Dual channel DDR5 SO-DIMMs memory
• Thunderbolt™ 4 & Dual LAN (2.5G & 1G)
• Triple display support & easy to upgrade design
• MSI Power Link: Cubi 5 1M can be powered by a monitor through MSI Power Link technology
• MSI AI Engine: Optimize user experience without manual configuration.
• Power Meter enables one-click power saving, carbon emission calculation, and electricity cost estimation
• Equipped with FSC™-certified carton; Waste reduction with recycled molded pulp (100% recyclable); Manufactured with 99% Renewable Energy at the factory

Specifications

Model	Cubi 5 1M-435BIN
CPU	Intel Core 7 Processor 150U (10 cores / 12 threads, 12 MB Intel® Smart Cache, 1.8GHz up to 5.40 GHz)
TDP	15W
Chipset	Intel® SoC
System Memory	2x DDR5 SO-DIMM slots, expandable up to 64GB (RAM not pre-installed)
Storage	1x M.2 2280 SSD slot 1x 2.5" HDD / SSD bay (storage not pre-installed)
I/O (Front)	1x Thunderbolt 4 (DP 1.4 alt-mode up to 4K@60Hz / PD-out 15W) 2x USB 10Gbps Type A 1x Mic-in / Headphone-out combo

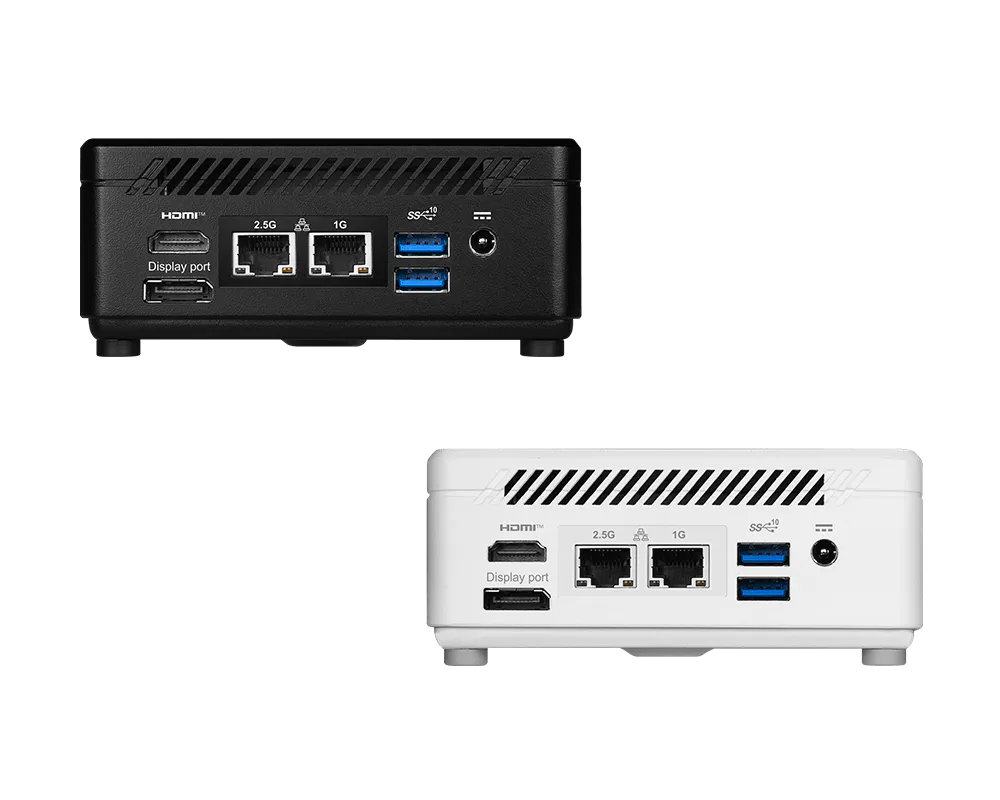

I/O (Rear)	2x USB 10Gbps Type A 2x RJ45 (2.5G & 1G LAN) 1x HDMI™ out (supports 4K @60Hz as specified in HDMI 2.1) 1x DisplayPort (v1.4)
I/O (Side)	1x Kensington Lock 1x External Power Switch Pin Header
Wireless LAN	Intel AX211 Wi-Fi 6E
Bluetooth	5.3
LAN	1x Realtek RTL8111H + 1x Realtek RTL8125BG-CG
Audio	Realtek ALC256
CPU Cooler	Air cooling
TPM Module	fTPM
Power	65W, Adaptor
Product Dimension (WxDxH)	124 x 124 x 53.7 mm (4.88 x 4.88 x 2.11 inch)
Weight (Net / Gross)	0.59 kg / 1.33 kg
VESA Size	100 x 100 mm
In the Box	AC Adaptor, Power Cord, Quick Guide, VESA Mount Kit
Warranty	36 months
