MSI Cubi N ADL S Fanless Mini PC – Intel Processor N100, DDR4, Barebone

Note: This is a barebone mini PC. It does not include RAM, SSD or an operating system — these need to be purchased and installed separately.

MSI Cubi N ADL S

• Featuring Intel Alder Lake Processors
• Fanless Design (Cubi N ADL S): Silent, energy-efficient, and anti-dust resulting in decreased downtime and extended life-cycle
• Support 4K UHD Display
• Support up to three displays that allows you to see more and do more
• Dual network solution for both internet and intranet
• Get all the performance benefits from USB 3.2 Gen 2 and enjoy the best data transmission experience
• dTPM 2.0 design secures your confidential data with encryption keys
• 24/7 Qualified Reliability Test
• Support standard VESA mount and external power switch (optional)
• Support MSI Cloud Center & MSI Center app

Specifications

Model	Cubi N ADL S-213BIN
CPU	Intel® Processor N100 (4 cores / 4 threads, 6 MB Cache, 0.8GHz up to 3.40 GHz)
TDP	6W
Chipset	Intel® SoC
Graphics	Intel® UHD Graphics
System Memory	1x DDR4 3200 MHz SO-DIMM slot, expandable up to 16GB (RAM not pre-installed)
Storage	1x M.2 SSD combo (NVMe PCIe Gen3 x2 / SATA) slot (storage not pre-installed)
Cooler	Fanless

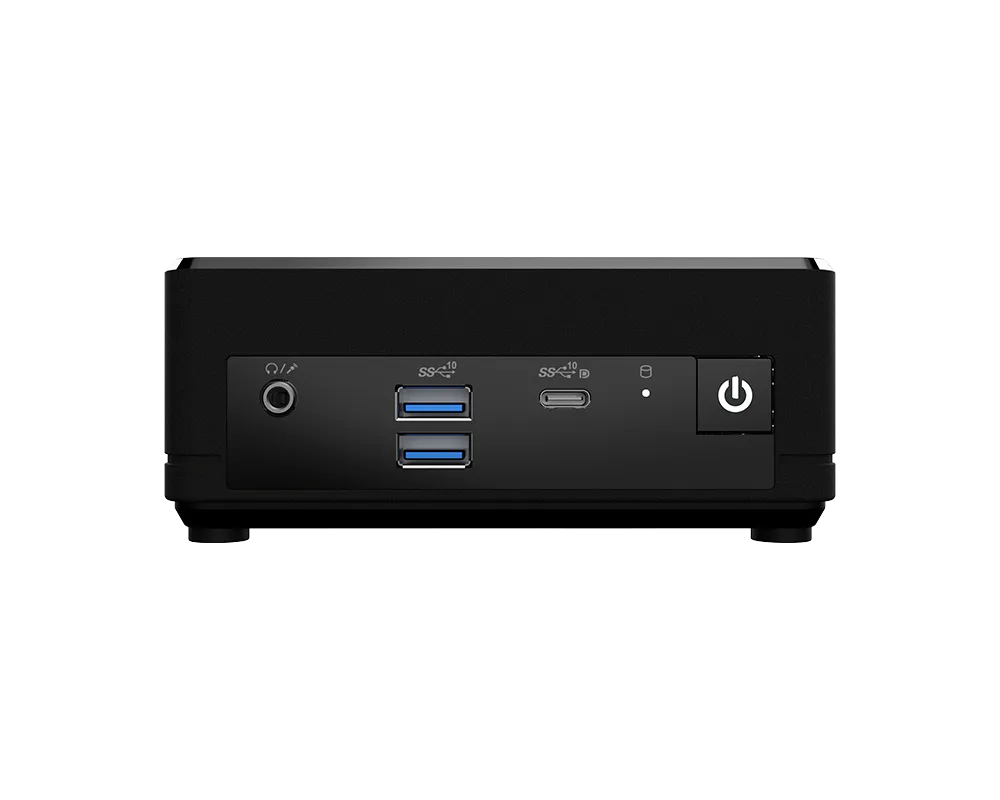

I/O Ports (Front)	1x Mic-in/Headphone-out combo 1x USB 3.2 Gen 2 Type C (DisplayPort Alternate) 2x USB 3.2 Gen 2 (10G) Type A

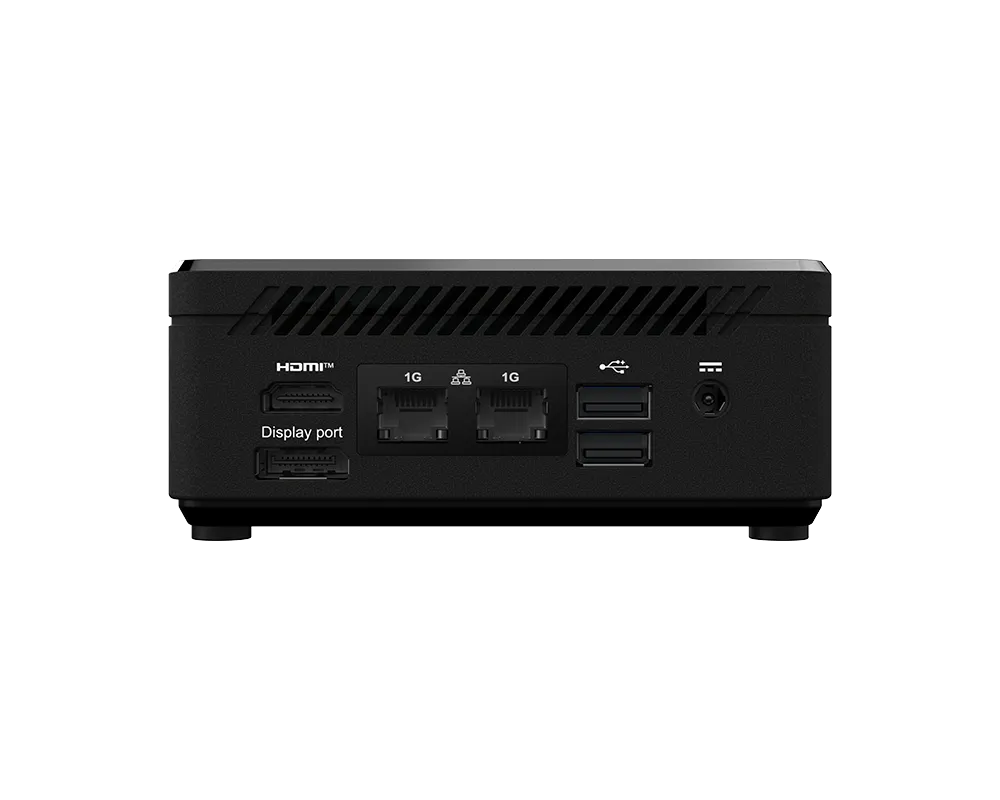

I/O Ports (Rear)	2x RJ45 2x USB 2.0 Type A 1x (v2.1) HDMI out 1x (v1.4) DP out
Lock Type	Kensington Lock
LAN	2x Realtek RTL8111H
Wireless LAN	802.11ac 1x1 (Wi-Fi 5)
Bluetooth	5
Audio	Realtek ALC256, 2.1 Channel HD Audio
Power Supply	65W
VESA	100 x 100 mm
Product Dimension (WxDxH)	124 x 124 x 53.7 mm (4.88 x 4.88 x 2.11 inch)
Weight (Net / Gross)	0.54 kg / 1.39 kg
In the Box	AC Adaptor, Power Cord, Quick Guide, VESA Mount Kit
Warranty	24 months
