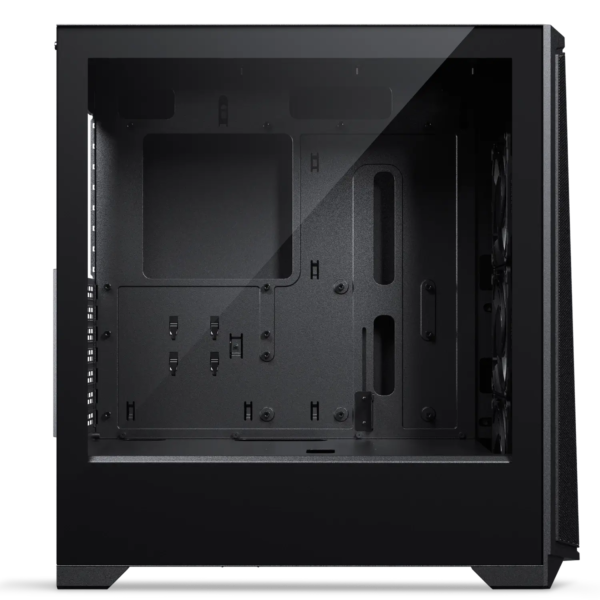

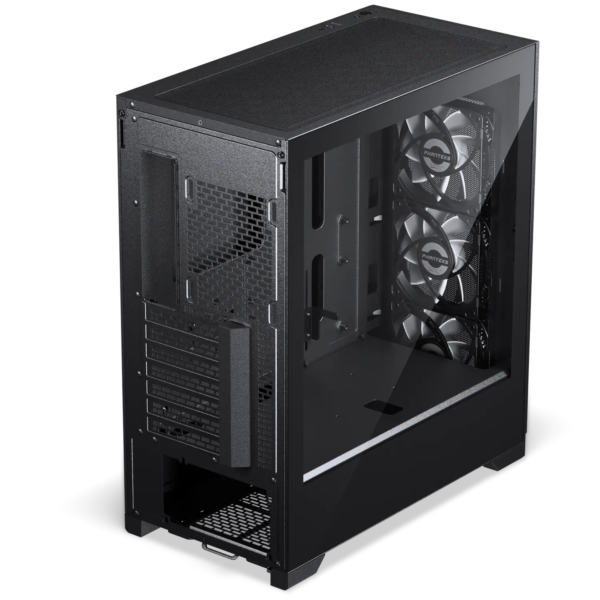

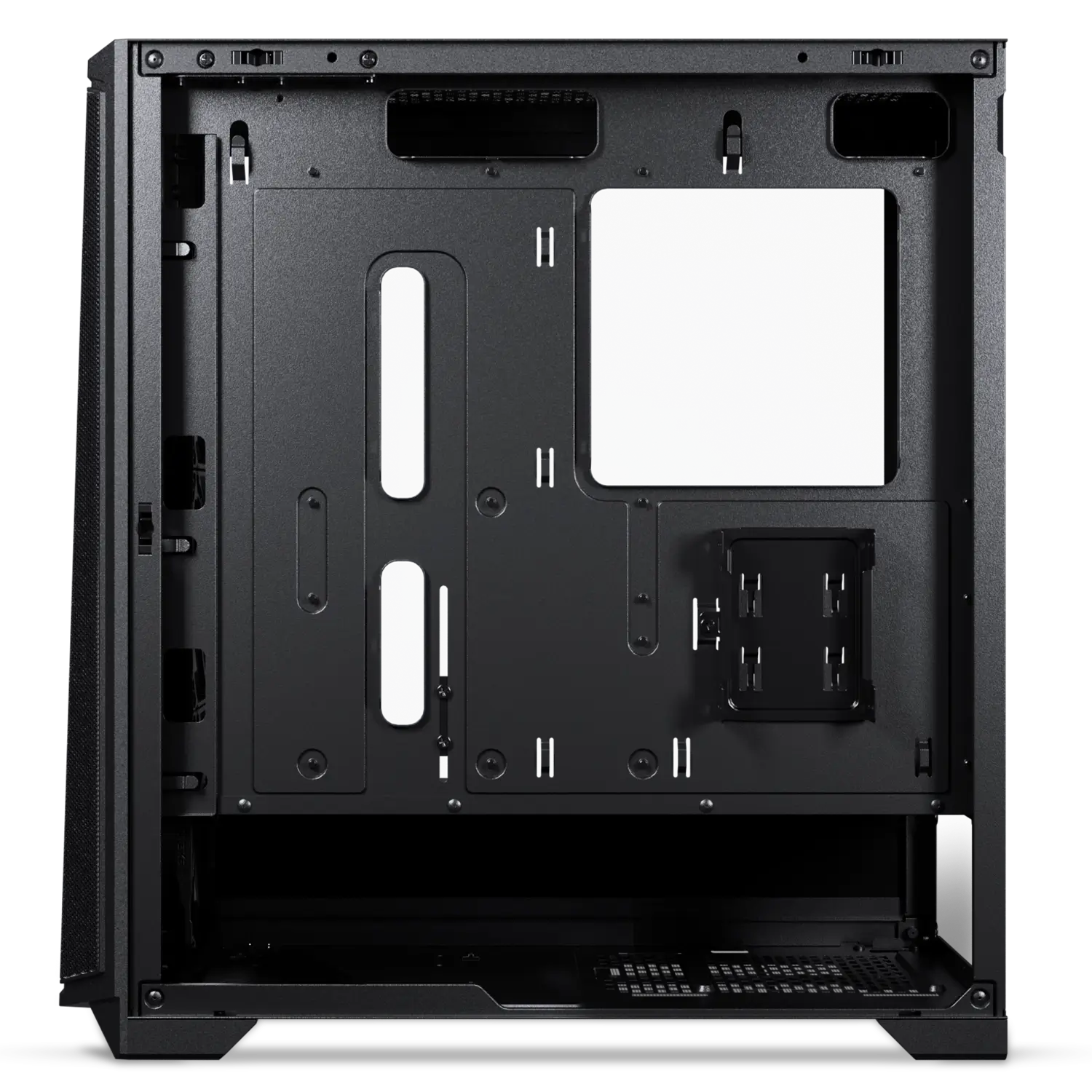

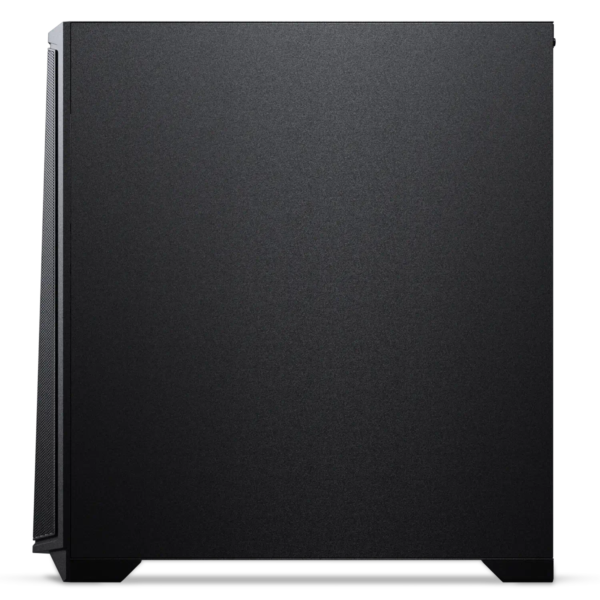

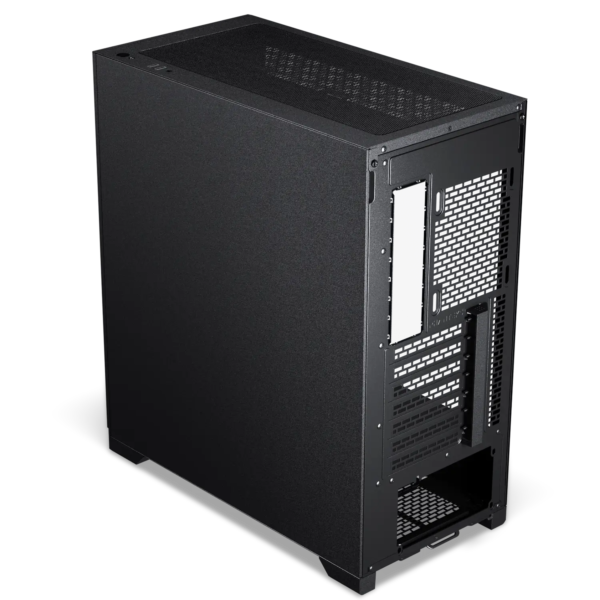

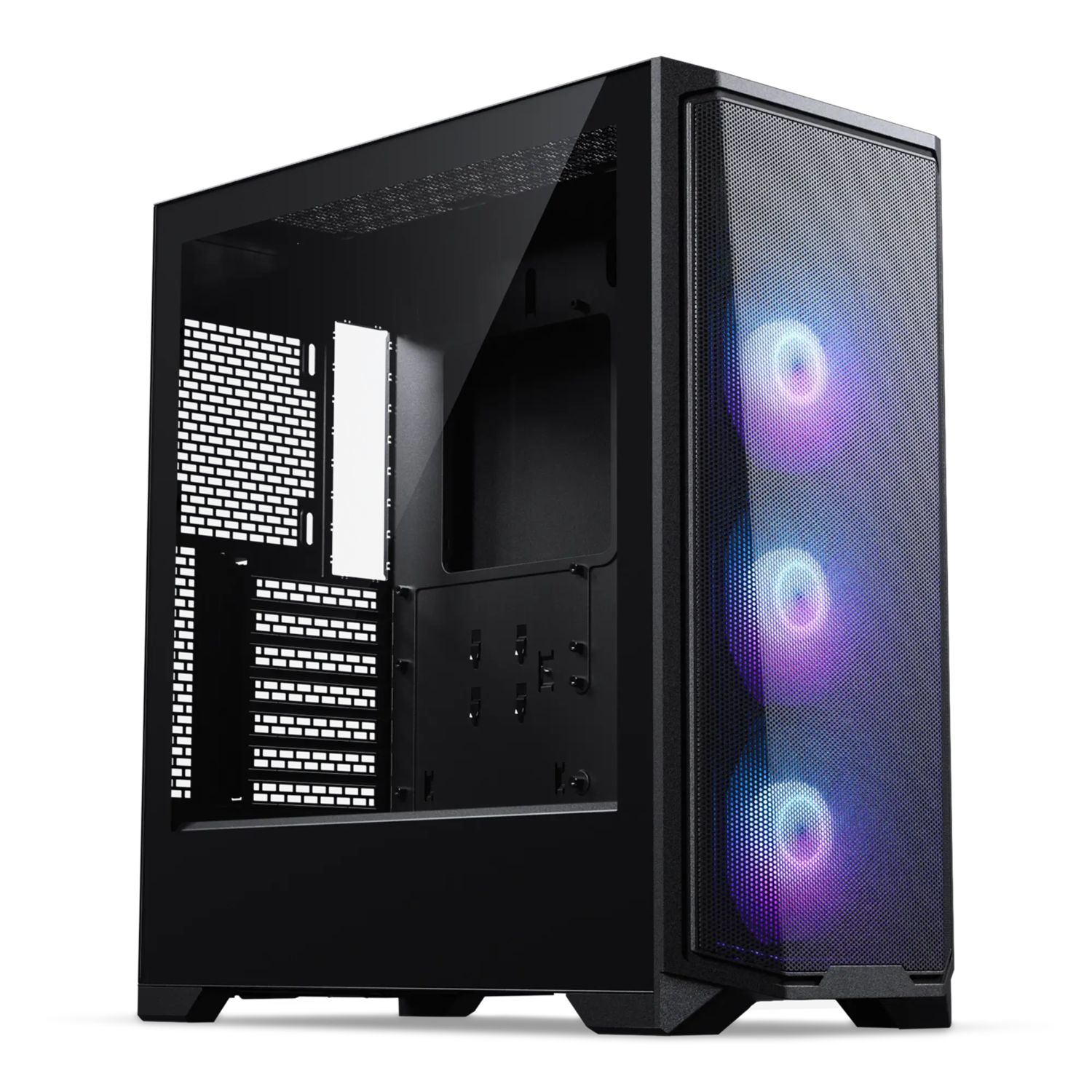

Phanteks Eclipse G370A High Airflow Gaming PC Case
Phanteks Eclipse G370A High Airflow Gaming PC Case
Regular price
Rs. 0.00
Sale price
Rs. 0.00
Regular price
GST included.
Out of stock
Features and Specifications
Features and Specifications

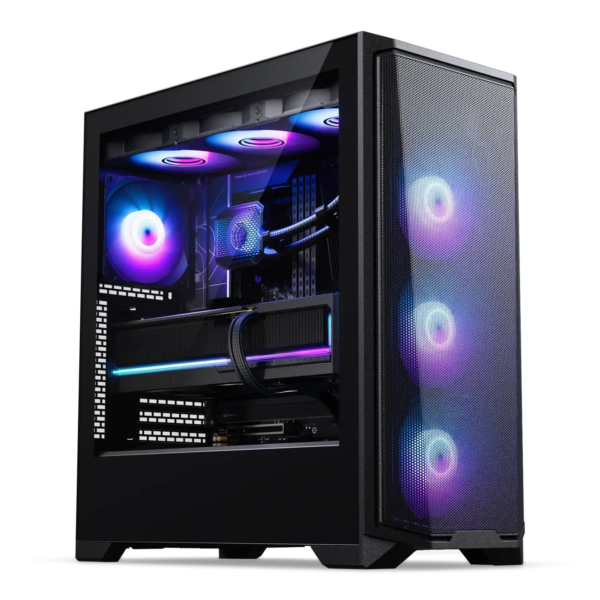

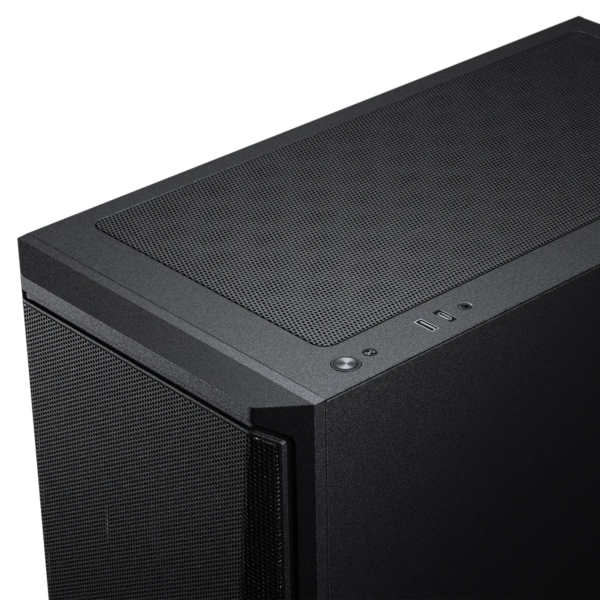

The Phanteks Eclipse G370A is all about performance without frills. High airflow mesh throughout the chassis with 7x 120 mm fan positions and dedicated top 360 radiator clearance provides ample fresh airflow to unlock even the most demanding workstation-grade systems.
Extensive mainboard support up to and including SSI-EEB mainboards makes the G370A punch way above its weight.
Performance Without Compromise
- High airflow mesh throughout the chassis for the best cooling performance.
- Dedicated 360 radiator space in the top to cool any CPU.
- Support for up to 7x 120 mm fans.
Professional Capabilities
- Workstation-ready design built for high-performance systems.
- Supports server grade mainboards, including SSI-EEB.
- Perfect for creators, developers, and power users.
Included M25 Fans
- Pre-installed M25 fans with integrated D-RGB lighting.
- Syncs seamlessly with mainboard lighting software.
To operate the D-RGB lighting, it must be connected to a Phanteks controller or an A-RGB equipped mainboard. We strive to make it as easy to use and compatible as possible.
Storage
-
SSD
Mount up to 2x 2.5” SSDs using the dedicated dual SSD bracket. -
HDD
Support for 3.5″ drive at the base of the chassis.
Fan Positions
- 3x 120 mm top fans.

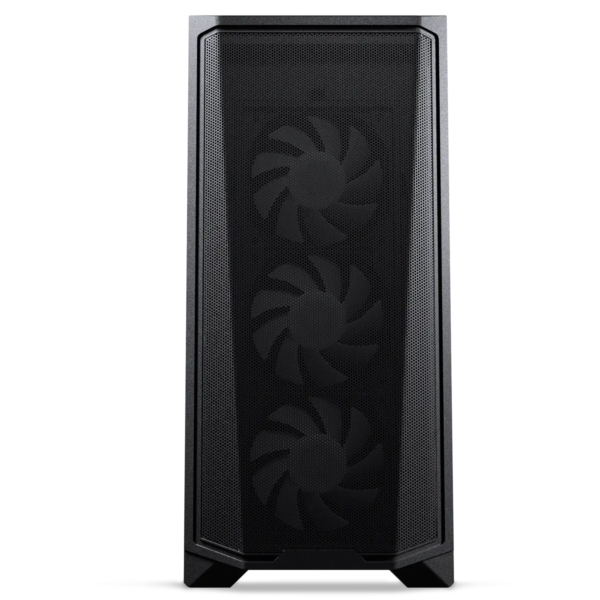

- 3x 120 mm front fan.
- 1x 120 mm rear fans.
Radiator Positions
- 1x 360 top radiator up to 400 x 120 x 60 mm
- 1x 240 radiator in the front. (Not possible with 360 top radiator installed)
Specifications
General
| Specification | Details |
|---|---|
| Model No. | PH-EC370A_DBK01 |
| UPC Code | 886523303930 |
| Case Dimensions | 465 x 476 x 220 mm | 18.30 x 18.74 x 8.66 in |
| From Factor | Mid-Tower |
| Mainboard Support | SSI-EEB | E-ATX | ATX | Micro-ATX | Mini-ITX |
| Materials | Steel chassis | Tempered glass window | ABS plastic |
| Color | Black |
| Expansion Slots | 7 |
| Vertical GPU Support | No |
| Internal 2.5″ Positions | 2+ 1x 3.5″ HDD |
| Internal 3.5″ Positions | 1+ 2x 2.5″ SSD |
| Front I/O | 1x USB 3.01x USB-C 3.01x Microphone | Headphone comboPower buttonReset button |
Fans 120 | 140
| Location | Details |
|---|---|
| Total Fans | 7 | – |
| Top | 3 | – |
| Front | 3 | – |
| Rear | 1 | – |
| Bottom | – | – |
Radiator 120 | 140
| Location | Details |
|---|---|
| Top | Max. 360 | – |
| Front | Max. 240 | – |
| Rear | – | – |
| Bottom | – | – |
Clearance
| Specification | Details |
|---|---|
| CPU Cooler Height | 170 mm | 6.69 in |
| GPU Length | 375 mm | 14.76 inWith front fans installed |
| GPU Width | 170 mm | 6.69 in |
| Power Supply | 200 mm | 7.87 in |
| Top 360 Radiator Length x Width x Height | 400 x 120 x 60 mm | 15.74 x 4.72 x 2.36 in |
Extra
| Specification | Details |
|---|---|
| Net Weight | 6.43 kg | 14.17 lbs |
| Gross Weight | 7.72 kg | 17.02 lbs |
| Warranty | 2 Years Limited |
Scope of Delivery
| Item | Details |
|---|---|
| Chassis | 1x Eclipse G370A chassis |
| SSD Bracket | 1x SSD bracket Pre-installed |
Accessory Box
| Item | Quantity |
|---|---|
| Zip ties | 6x |
| Stand-off removal tool | 1x |
Screws
| Item | Quantity |
|---|---|
| Mainboard | SSD screws | 18x |
| PSU | Chassis screws | 13x |
| HDD screws | 4x |
| HDD standoff | 4x |
| HDD rubber dampener | 4x |
| Mainboard stand-off | 1x |
