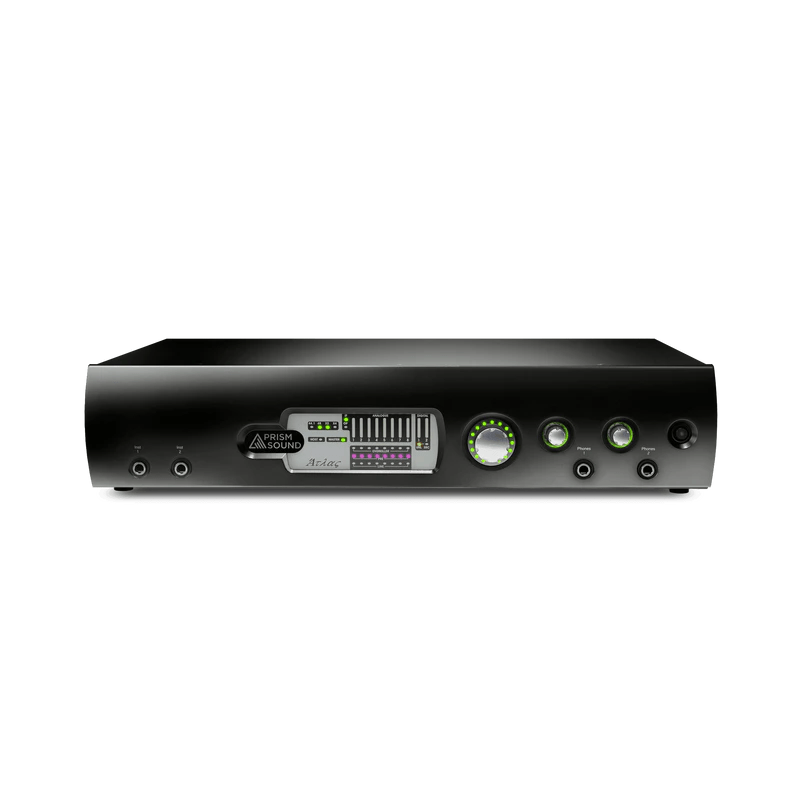

Atlas and Titan are world class multi-track interfaces offering flexible expansion and unsurpassable sonic clarity. Using the latest generation of Prism Sounds trusted conversion, Atlas provides more preamps than Titan making it suitable for a wider range of recording scenarios.

UNSURPASSED CLOCKING AND JITTER REJECTION

Prism Sounds history in developing test and measurement equipment for the audio industry has allowed our engineers to get a much deeper understanding of digital clocking and its associated issues.

DIGITAL MIXER WITH FLEXIBLE MONITORING

Atlas has a powerful built-in digital mixer that can be configured to provide a multitude of ultra low latency feeds, Including foldback to performers, stereo and surround outputs.

MIC PREAMPS

The Atlas boasts 8 ultra-clean, low-noise microphone preamps that perfectly compliment its transparent A/D conversion (with software controllable phantom power, -20dB pad and Overkiller limiter switches on each channel.)

FUTURE PROOF CONNECTIVITY

With a standard USB connection Atlas can connect to the widest range of computers today and for the foreseeable future. Add to this the option of ProTools HDX and Dante modules for the most flexible and professional solution.



TECH SPECS

DIMENSIONS

2U 19inch rack mountable
(rubber feet and rack ears supplied)

Table top (inc feet): W: 440mm D: 290mm H: 95mm

Rack-mount (inc ears):
W: 483mm D: 290mm H: 88mm

POWER

90-250VAC, 50/60Hz internal power supply

IEC 6A connector

35W 0.5A(T) 20mm ceramic fuse

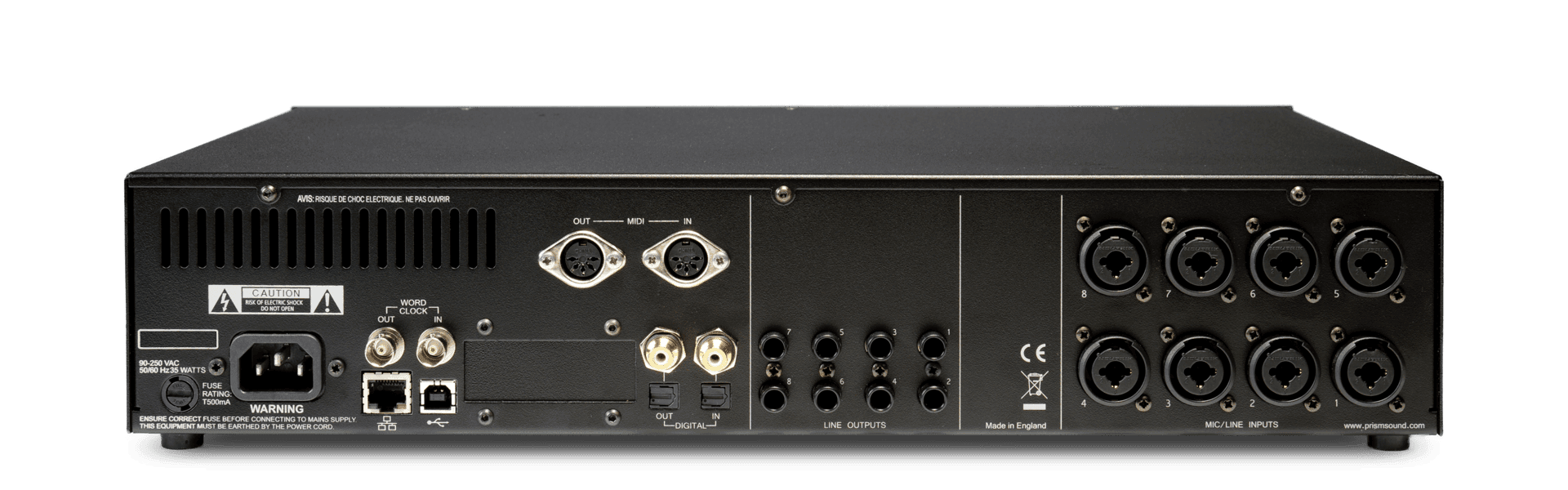

INPUTS

8 x combo connectors with XLR sockets for mic input and 6.3mm TRS jack sockets for line input (balanced or unbalanced)

1 x RCA

1 x TOSLINK for S/PDIF or ADAT Optical input

OUTPUTS

8 x 6.3mm TRS jack sockets (balanced or unbalanced)

1 x RCA

1 x TOSLINK for S/PDIF or ADAT Optical output
